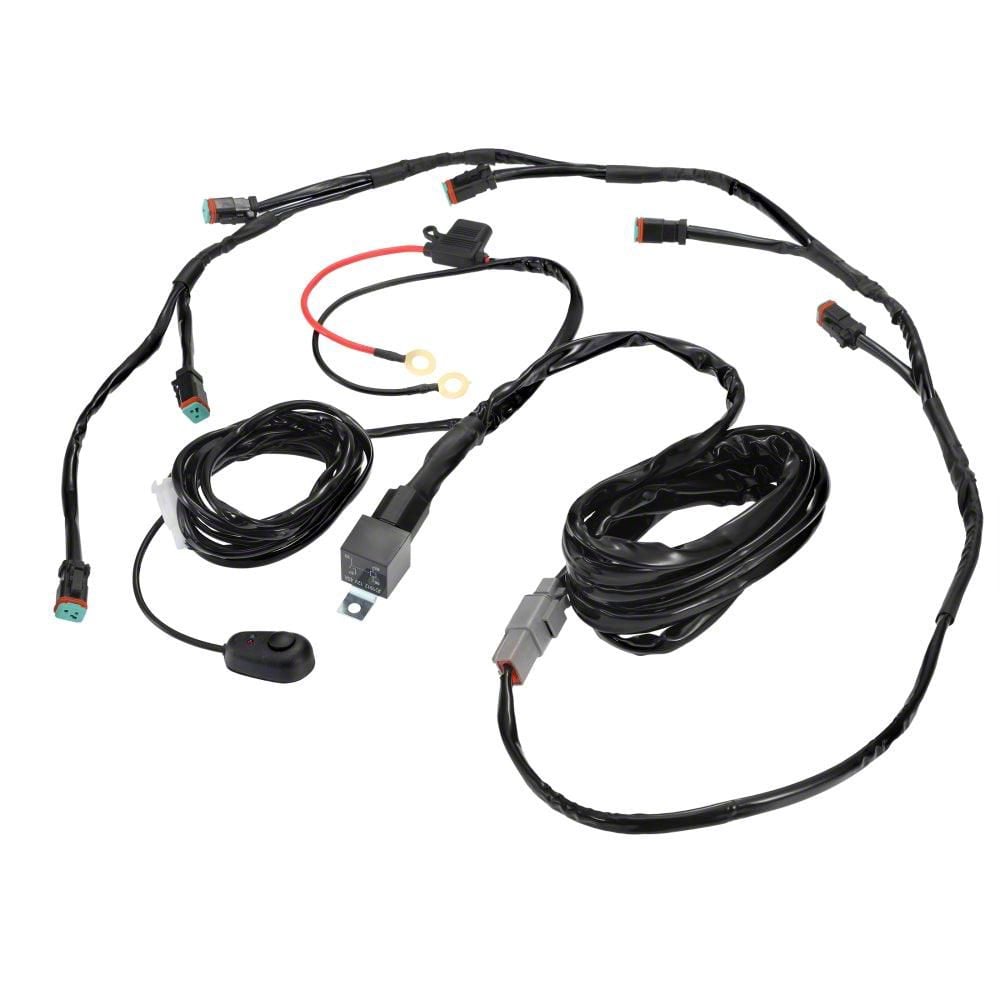

6-LED Pod Light Power Wiring Harness Kit with 2-Pin DT Plugs
Item SD64803
Coupon Added
Our Price
$74.99 kit
Coupon
Military, Medical & First Responders
$3.75 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Recommend Fit For Our Pod Light SKU
- 6-Pod Lights: A Maximum Of Six Pod Lights Can Be Installed
- Compatible Series: Color Play Series ZD000865 ZD000866 ZD000867, XP-ULTRA Series ZD000692 ZD000676 ZD000817 ZD000818 ZD000819, P4 Series ZD000670 ZD000671 ZD000749 ZD000750, R4 Series ZD000658 ZD000659 ZD000672 ZD000706 ZD000711, CUBE-Z Series ZD000860 ZD000861 ZD000862, Other Product ZD000668 ZD000669 ZD000683 ZD000684 GD001626 ZD000688 ZD000618
- 4-Pod Lights: A Maximum Of Four Pod Lights Can Be Installed — ZD000674 ZD000485 ZD000486 ZD000857
- 3-Pod Lights: A Maximum Of Three Pod Lights Can Be Installed — ZD000675 ZD000858
- Compatible Wiring Harness for Two-Wire Single Mode ON/OFF Main Light Only
- Includes 6 In 1 2-Pin DT Plug, 40A Fuse, and Relay
- Built-In Blade Fuse To Prevent Overcurrent And Short Circuit For Vehicle Electrical System Safety
- Load Power: Wiring Harness Includes 3-Meter 10AWG (Approx. 4mm²) Main Wire and DT-Adapter Plug With Total Length of 1.5 Meters
- Supports Maximum Load of 40A Current, Equivalent to 384W at 12V
- Plug and Play: High-Quality LED Wiring Harness Kit Designed For Easy Connection To Vehicle Lights
- The 6-Pod LED Harness Is Easy To Install, Features 2-Wire DT Plug, Suitable For Roof Or Bumper Use On Vehicles
- Professional Installation Recommended To Ensure Safety And Proper Functionality
- Specification: Connects Up To 6 Pods
- Wire Length: 3M Extension Cord Plus 1.5M Connection Cord
- Switch Wire Length: 3M
- Install Pod Distance: Approximately 15cm
- DT-Plug Adapter Length: 10cm
- DT-Plug Connector: 2-Pin
- Wire Size: 10AWG National Standard
- Wire Material: Copper Wire (Approx. 4mm²)
- Working Voltage: 12V with Replaceable 24V Relay
- Leads Power: Max 384W Current 40A
- Fuse Size: 40A
- Packing Included: 1 X 6-Pod Power Harness (Pod Lights Not Included)
Description
Efficient Power Solution. The 6-LED Pod Light Power Wiring Harness Kit with 2-Pin DT Plugs provides a reliable and safe electrical connection for LED pod lights on vehicles. Designed to handle a maximum load of 384W at 12V, it allows users to connect up to six pod lights easily and securely. This wiring harness streamlines installation and enhances the performance of your vehicle’s lighting system.
Construction and Appearance. Constructed with high-quality 10AWG (approximately 4mm²) copper wire, the harness features durable and weather-resistant materials to ensure long-term performance. It includes a 3-meter extension cord and a 1.5-meter DT-adapter plug, completed with a 2-pin DT connector and built-in 40A blade fuse for overcurrent protection. The wiring is finished in professional black sheathing for neat integration into your vehicle.
Installation. Installation is straightforward, designed for plug-and-play use with 2-pin DT connectors to minimize wiring complexity. No additional drilling is typically required. Professional installation is recommended to ensure safety and proper functionality.
Warranty. The product comes with a standard manufacturer warranty covering defects.
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Wiring Harness Kit
