Installation Time
(approx) a Day
Difficulty Level:
Light to Moderate mechanical skill required.
FREE 1 to 3-Day Delivery on Orders $119+ Details
Talk to a Ram 1500 Sales Tech
1-888-706-1096
M-F 8:30A-11P, Sat-Sun 8:30A-9P
Zone Offroad 4-Inch Suspension Lift Kit with Nitro Shocks (19-24 4WD RAM 1500 w/o 22-Inch Factory Wheels & w/o Air Ride, Excluding TRX)
Item R123284
$0.00
Our Price
$1,736.41 (kit)
FREE Shipping Market Price $1,996.87 You Save 13% ($260.46) Up to 10% off for Military & First Responders! See DetailsWill this fit your Vehicle?
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Suspension Lift Kit - 4-inch
- Corrects Factory Rake for a Level Stance
- Increases Ground Clearance for Improved Off-Roading
- Nitro Series Twin Tube Rear Shocks
- Ductile Iron Steering Knuckles
- Steel Fabricated Strut Spacers
- Rear Coils Springs
- Heavy Duty Steel Crossmembers and Skid Plate
- Accommodates up to 35-inch Tall Tires
- Straight Forward Bolt-on Installation
- Fits 2019-2024 4WD RAM 1500 without 22 inch Factory Wheels without Air Ride, Excluding TRX
| Brand | Zone Offroad |
| Lift Height | 4.00 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Lifted Stance. Add a commanding, lifted off-road stance to your 2019-2024 4WD RAM 1500 by upgrading to a Zone Offroad 4-Inch Suspension Lift Kit that includes Nitro Shocks. With 4.0 inches of lift, this kit can accommodate tires up to 35-inches in size allowing you to conquer any trail. This Zone Offroad Lift Kit features vehicle specific steering knuckles as well as lift blocks, strut spacers, heavy duty skid plates and crossmembers. What’s more, the included rear coil springs and Nitro Rear Shocks will provide a highly comfortable ride, even across the roughest terrain.
Zone Nitro Series Shocks. Built to perform, the included Zone Nitro Series Shock Absorbers offer stock-like control and performance with fully displaced valving for improved compression and extension travel. Each shock features a twin-tube nitrogen charged design with 10-stage velocity sensitive valving for great on and off-road performance.
Iron Steering Knuckles. Zone Offroad includes a set of heavy duty, extended length steering knuckles in their 4-inch Suspension Lift Kit. These steering knuckles are manufactured from ductile iron for superior strength. The knuckles were designed to maintain the proper steering geometry for Electronic Stability Control (ESC) system compatibility.
Skid Plate and Crossmembers. Both the front differential skid plate and high clearance crossmembers are constructed from heavy duty steel plate for superior strength. The skid plate will protect the front differential from rocks and obstacles, while the crossmembers will provide additional strength to the suspension.
No Welding Required. Zone Offroad engineered their Lift Kit to be installed with no welding needed, making it a bolt-on kit. However, it should be noted that professional installation is recommended. With all the necessary hardware included, this Lift kit can be installed in about 6-8 hours time.
Application. This Zone Offroad 4-Inch Suspension Lift Kit with Nitro Shocks is designed to fit 2019-2024 4WD RAM 1500 models not equipped with 22 inch Factory Wheels nor Air Ride, excluding TRX.
Fitment:
- 2019 Dodge Ram 1500
- 2020 Dodge Ram 1500
- 2021 Dodge Ram 1500
- 2022 Dodge Ram 1500
- 2023 Dodge Ram 1500
- 2024 Dodge Ram 1500
Zone Offroad ZOND99N
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

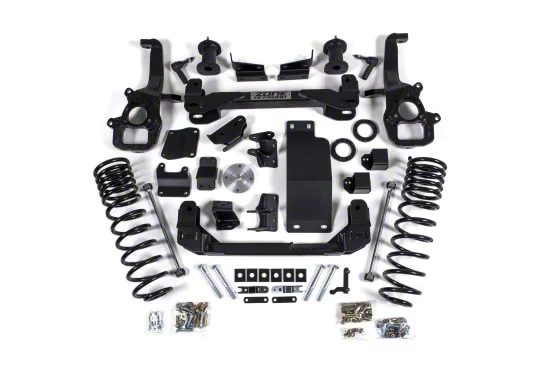

Installation & What's in the Box
Installation Info
What's in the Box
- Steering Knuckles
- Lift Blocks
- Strut Spacers
- Skid Plate
- Crossmembers
- Coil Springs
- Nitro Shocks
- Installation Hardware
4.7
Customer Reviews (48)
Questions & Answers
10 More Questions
Will It Fit My Ram 1500
- 3.0L V6 EcoDiesel - 20, 21, 22, 23
- 3.6L V6 - 19, 20, 21, 22, 23, 24
- 5.7L V8 - 19, 20, 21, 22, 23, 24
