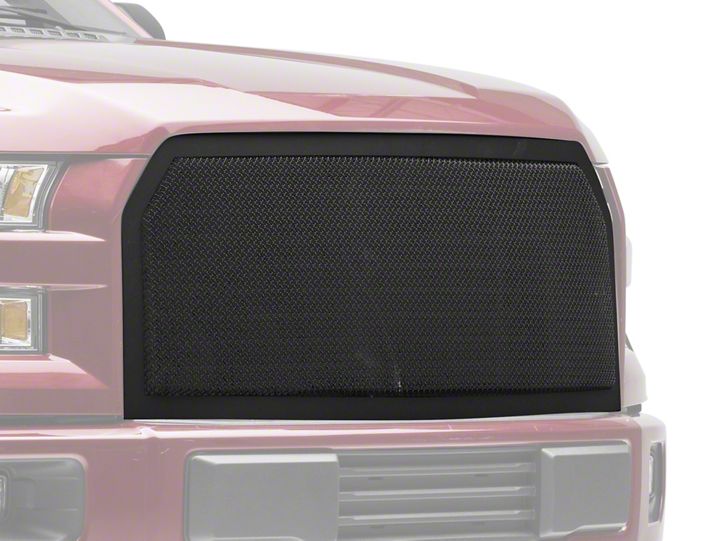

How to Install Wire Mesh Upper Replacement Grille - Black (15-17 All, Excluding Raptor) on your Ford F-150

Step 1\\ Using a panel removal tool, remove the (12) push clips holding the plastic radiator cover to the grille.

Step 2\\ Remove the (4) 8mm bolts holding the top of the grille to the radiator support.

Step 3\\ Unplug the (2) wire connections by the hood latch.

Step 4\\ Carefully pull back on the headlight trim, and remove the (2) 8mm bolts holding the grille in.

Step 5\\ With a panel removal tool, remove the (6) push clips holding the side cover in place. Then remove the grille completely from the vehicle.

Step 6\\ Remove the factory grille by removing the (4) push clips on the top, and (2) 8mm screws on the bottom. Install the new replacement grille to the grille frame by using the factory hardware.

Step 7\\
Optional LED Wiring Diagram:
Red- Switch ignition 12Volt
Black- Chassis Ground

Step 8\\ Reinstall the grille by reversing the steps.
