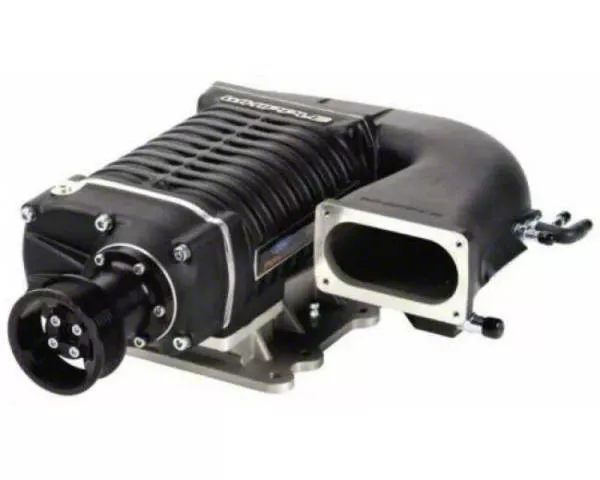

      2001-2004 FORD F-150 SVT LIGHTNING / HARLEY-DAVIDSON W140AX 2.3L WHIPPLE COMPETITION SUPERCHARGER KIT

      The Whipple W140AX 2.3L Competition Supercharger Kit is built for compatible 2001-2004 Ford F-150 SVT Lightning and Harley-Davidson 5.4L truck applications where maximum performance is the goal. This competition-use package is designed for customers who want a major airflow and power upgrade over the factory Eaton roots-type supercharger setup.

      The W140AX 2.3L twin-screw compressor gives Lightning and Harley truck owners a larger, more efficient positive-displacement supercharger package with strong airflow, instant boost response, and the broad torque curve Whipple is known for. On properly matched Lightning combinations, this system can support gains of up to 175 HP, with more available when combined with high-performance engine modifications, fuel system upgrades, pulley changes, and proper calibration.

      Whipple's axial-entry compressor design improves airflow into the supercharger and helps deliver more air at lower compressor speeds when compared to less efficient layouts. The W140AX compressor is designed to reduce inlet air temperature and parasitic loss compared to the factory roots-style supercharger, helping produce cooler, denser charge air and more usable power per pound of boost.

      The bolt-on system is designed around a large-mouth inlet casting, high-flow cold air intake system with a massive S&B True Flow 9 in. filter, oversized bypass valve, pulley tuning capability, and the required installation hardware for supported applications. The system is designed to accommodate factory and aftermarket throttle bodies and does not require hood or firewall modification on supported setups.

      Depending on pulley setup, crank pulley, engine build, fuel system, calibration, and supporting components, the W140AX platform can support a broad boost range from approximately 8-25 PSI. Out of the box, the kit is designed to support up to 13 PSI, while higher boost levels require the proper engine, fuel, cooling, belt-drive, and calibration support.

      Since 1987, Whipple Superchargers has been a leader in twin-screw supercharging technology for enthusiasts who demand more airflow, more efficiency, and more power from their combination. Whipple supercharger systems and components are designed, manufactured, and assembled at Whipple's facility in Fresno, California.

      Key Features

      • W140AX 2.3L Whipple twin-screw competition supercharger kit
      • Designed for compatible 2001-2004 Ford F-150 SVT Lightning applications
      • Designed for compatible 2001-2004 Ford F-150 Harley-Davidson 5.4L applications
      • Supports up to 175 HP gain on Lightning engines with more available on properly modified combinations
      • Axial-entry compressor design for improved airflow
      • Designed to flow more air at lower compressor speeds
      • Large-mouth inlet casting
      • High-flow cold air intake system with S&B True Flow 9 in. filter
      • Boost range capability of approximately 8-25 PSI depending on configuration
      • Up to 13 PSI out of the box on supported setups
      • Oversized bypass valve for improved part-throttle operation
      • Internally lubricated design with no oil pan tapping required
      • Designed to support factory or aftermarket throttle bodies
      • No hood or firewall modification required on supported setups

      Approximate Boost Levels

      Using Stock 7.5 in. Crank Pulley:

      • 3.25 in. supercharger pulley - 11.5 PSI
      • 3.00 in. supercharger pulley - 13.5 PSI
      • 2.75 in. supercharger pulley - 15.5 PSI
      • 2.50 in. supercharger pulley - 17.5 PSI

      Using 9.0 in. Crank Pulley:

      • 3.75 in. supercharger pulley - 12.5 PSI
      • 3.50 in. supercharger pulley - 14.5 PSI
      • 3.25 in. supercharger pulley - 16.5 PSI
      • 3.00 in. supercharger pulley - 18.5 PSI
      • 2.75 in. supercharger pulley - 21 PSI
      • 2.50 in. supercharger pulley - 23 PSI

      Application note:

      Verify vehicle year, engine platform, throttle body, intake configuration, pulley setup, crank pulley, belt drive, fuel system, intercooler system, calibration, engine condition, supporting modifications, and complete installation requirements before ordering. Higher boost levels require the proper engine, fuel, cooling, belt-drive, and calibration support.

      THIS PRODUCT MAY BE USED SOLELY ON VEHICLES USED IN SANCTIONED COMPETITION WHICH MAY NEVER BE USED UPON A PUBLIC ROAD OR HIGHWAY.

      LEGAL IN CALIFORNIA ONLY FOR RACING VEHICLES WHICH MAY NEVER BE USED, REGISTERED, OR LICENSED FOR USE UPON A HIGHWAY.

      IT IS THE RESPONSIBILITY OF THE INSTALLER AND/OR USER TO ENSURE THIS PRODUCT IS USED IN COMPLIANCE WITH ALL APPLICABLE LAWS AND REGULATIONS.

      THIS POLICY APPLIES TO INSTALLERS AND USERS IN THE UNITED STATES. CUSTOMERS IN OTHER COUNTRIES SHOULD FOLLOW THEIR LOCAL LAWS.

      Whipple WK-2001

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Tech Specs

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My F-150

      • 5.4L V8 Supercharged - 01, 02, 03
