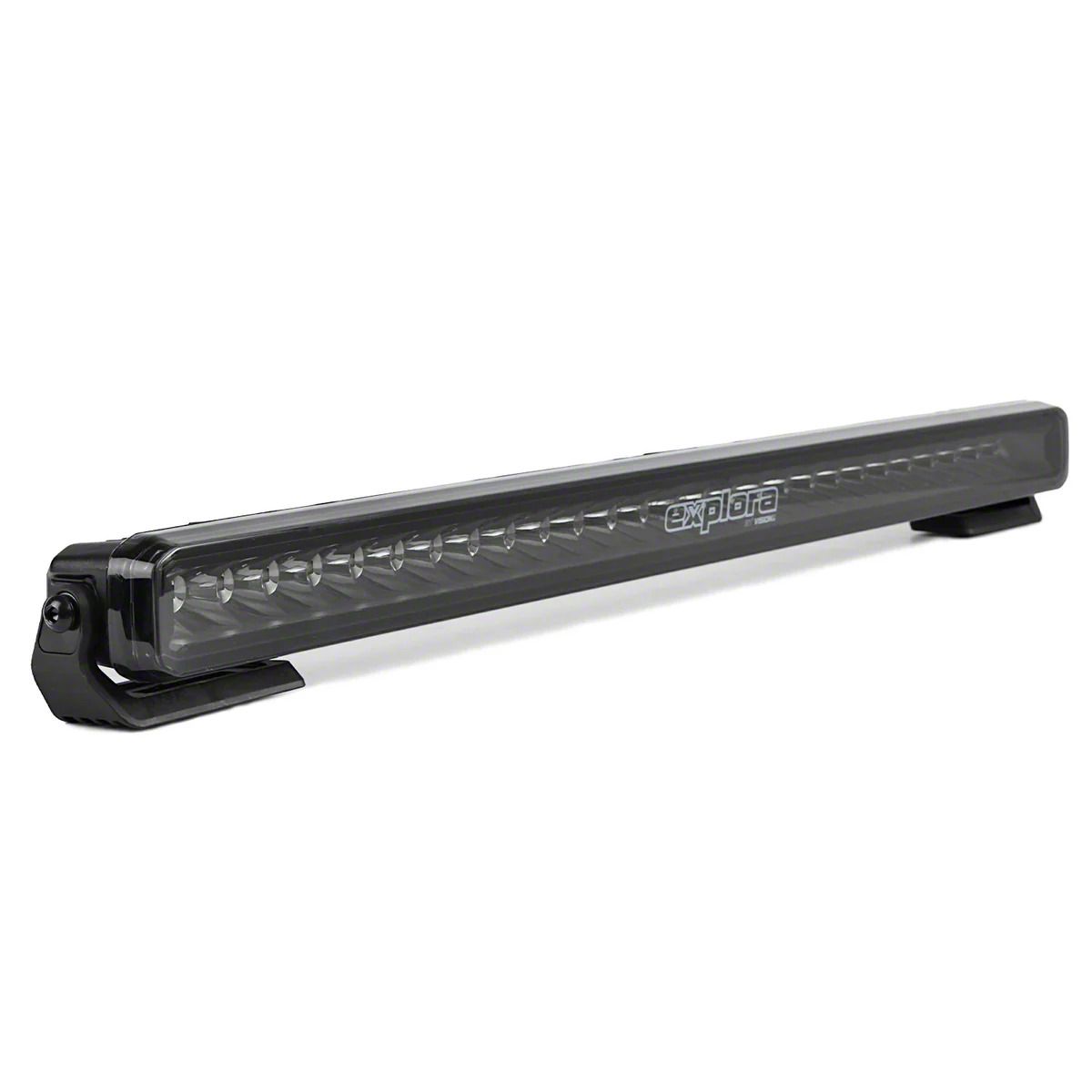

Vision X 30-Inch Explora Single Row LED Light Bar with Dual-Color DRL; Flood/Spot Combo Beam (Universal; Some Adaptation May Be Required)

Item SD77475
Product Image
61 Reviews of Vision X
Our Price

$399.00

Military, Medical & First Responders $19.95 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features & Specs

        _x000D_
      • Explora Series Lights Were Purpose-Built To Deliver Modern Styling In A Completely Customizable Platform Giving Everyday Drivers Unprecedented Versatility At An Affordable Price Point.
        • _x000D_
      • Switchback Dual-Color DRLs, Multi-Color Lens Options, And Multi-Color Trim Rings Provide Unlimited Customization That Are Guaranteed To Match Your Build.
        • _x000D_
      • Add To That An Impressive Beam Performance And Internal Relay System And You Can Clearly See Why Explora Is A Whole New Breed.
        • _x000D_
      • Explora Series Light Bars Are Available In 10, 20, & 30 Inch Length In Both A Single And Double Row Profile.
        • _x000D_
      • All Light Bars Feature A Next-Generation Circuit Design With A 2-Position DRL That Can Be Run In White, Amber, Or Switch-Back Mode Where The White DRL Switches To Amber And Flashes In Sync With Your Factory Turn Signal.
        • _x000D_
      • The Advanced Circuit Design Also Utilizes An Internal Mosfet Eliminating The Need For External Relays, Making Wiring With Or Without Plug-&-Play Wiring Harnesses A Breeze.
        • _x000D_
      • Interchange Snap-On Lens Covers And Silicone Trim Rings Are Available For All Light Sizes To Enable More Customization Than Ever Before.
        • _x000D_
      • Lenses Are Available In Yellow, Clear, Smoke, Or Black-Out And Trim Rings Are Available In Red, Orange, Yellow, Green, Blue, & Pink.
        • _x000D_
      • X-Drive LEDs Produce 9,500 Lumens Using Ultra-Reflective Honey Comb Style Optic And Eight High-Output LEDs For A Powerful Driving Beam.
        • _x000D_
      • Dual-Color DRL Features A Unique Two Edge Design That Can Be Switched Between Crisp White Or Amber To Match OEM Marker Light.
        • _x000D_
      • Switch-Back Technology Allows The Amber DRL To Take Priority When Both White & Amber DRLs Are Powered And Can Flash In Sync With Turn Signals.
        • _x000D_
      • Swappable Lens System Comes Equipped With Smoked Lens That Can Be Swapped To Clear Or Selective Yellow For Dust.
        • _x000D_
      • Custom Trim Colors Available With Colored Rubber Trim Rings Surrounding Outer Portion Of The Lens.
        • _x000D_
      • Internal Relay With Modular Switching Removes Need For External Relay; Wiring Harness Allows Switching Via Trigger Wire Or Universal Switch.
        • _x000D_
      • Uses CREE XTE LEDs Rated At 5W Each.
        • _x000D_
      • Power Consumption Is 140 Watts With Amp Draw Of 11.67 Amps.
        • _x000D_
      • Raw Lumen Output Is 9,500.
        • _x000D_
      • Beam Distance Measures 1771 Feet (540 Meters) With Beam Width Of 197 Feet (60 Meters).
        • _x000D_
      • Connector Type Is 3-Pin DT.
        • _x000D_
      • Color Temperature Is 6000K.
        • _x000D_
      • Operating Voltage Range Is 9-32 VDC.
        • _x000D_
      • Pod Size Is 30.50 Inches Round By 2.52 Inches Deep.
        • _x000D_
      • Pod Weight Is 4.5 Pounds.
        • _x000D_
      • Rating IP68 & 69K For Waterproof, Submersible & High-Pressure Spray Resistance.
        • _x000D_
      • EMC Compliance Includes CISPR 25, CE, UKCA.
        • _x000D_
      • Limited Lifetime Warranty.
        • _x000D_
      • Includes One Explora Driving Light Bar, One Smoked Lens Cover, Black Zinc Mounting Hardware Set, And Single-Light Modular Wiring Harness.
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required.
        • _x000D_

      Description

      Product Overview. The Vision X 30-Inch Explora Single Row LED Light Bar with Dual-Color DRL; Flood/Spot Combo Beam is a versatile off-road lighting solution designed to provide superior illumination and customizable styling options. Perfect for automotive enthusiasts seeking enhanced visibility and the ability to match the light bar to their vehicle’s aesthetic, this light bar integrates seamlessly with existing vehicle lighting systems. Its dual-color DRL technology offers both white and amber lighting modes to accommodate various driving conditions and signaling needs.

      _x000D__x000D_

      Durability And Design. Constructed using high-quality materials, the light bar features a robust aluminum housing and an ultra-reflective honeycomb optic design with high-output CREE XTE LEDs. The unit is finished with durable black zinc mounting hardware and rated IP68 and IP69K for water and dust resistance, ensuring reliable operation in harsh off-road environments. The swappable lens covers and silicone trim rings allow for personalized appearance and added protection.

      _x000D__x000D_

      Installation. Installation is straightforward and accessible for most users, with a plug-and-play modular wiring harness included. No external relays are required due to its advanced internal circuitry. Minor vehicle adaptations may be necessary for universal fitment but typically drilling is not required.

      _x000D__x000D_

      Warranty And Application. The light bar comes with a limited lifetime warranty, reflecting confidence in its long-term durability and performance. It fits a universal range of vehicles, though some adaptation may be required to accommodate specific mount points or vehicle configurations.
