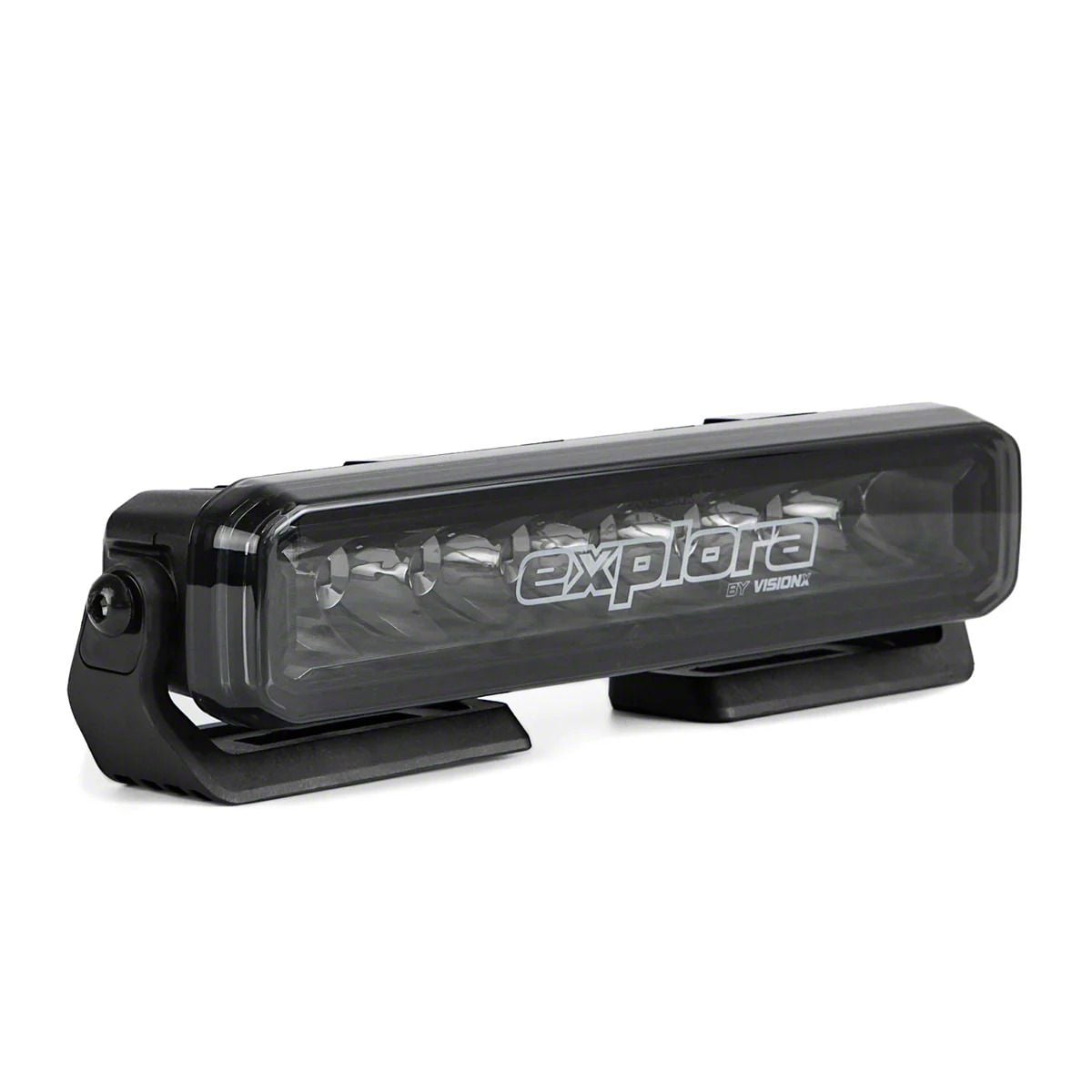

Vision X 10-Inch Explora Single Row LED Light Bar with Dual-Color DRL; Flood/Spot Combo Beam (Universal; Some Adaptation May Be Required)

Item SD77476
Product Image
61 Reviews of Vision X
Our Price

$220.00

Military, Medical & First Responders $11.00 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features & Specs

        _x000D_
      • Explora Series Lights were purpose-built to deliver modern styling on a fully customizable platform, offering everyday drivers unprecedented versatility at an affordable price point.
        • _x000D_
      • Switchback dual-color DRLs, multiple lens and trim ring color options provide unlimited customization guaranteed to match your build.
        • _x000D_
      • Impressive beam performance with an internal relay system for simplified wiring.
        • _x000D_
      • Available in 10, 20, and 30 inch lengths with single and double row profiles.
        • _x000D_
      • Next-generation circuit design includes a 2-position DRL, which can run in white, amber, or switch-back mode.
        • _x000D_
      • Advanced internal MOSFET circuit eliminates the need for external relays.
        • _x000D_
      • Interchangeable snap-on lens covers and silicone trim rings enable enhanced customization.
        • _x000D_
      • Lenses available in yellow, clear, smoke, or blackout finishes.
        • _x000D_
      • Trim rings available in red, orange, yellow, green, blue, and pink.
        • _x000D_
      • X-Drive LEDs produce 2,700 lumens with an ultra-reflective honeycomb optic backed by eight high-output LEDs.
        • _x000D_
      • Dual-color DRL offers crisp white output or amber to match OEM marker lights.
        • _x000D_
      • Switch-back technology allows amber DRLs to flash in sync with turn signals.
        • _x000D_
      • Swappable lens system includes smoked, clear, or selective yellow lenses.
        • _x000D_
      • Custom trim colors with colored rubber trim rings surrounding the lens.
        • _x000D_
      • Internal relay with modular switching for easy wiring and control.
        • _x000D_
      • LEDs: CREE XTE (5W each).
        • _x000D_
      • Power consumption: 40W.
        • _x000D_
      • Current draw: 3.33A.
        • _x000D_
      • Raw lumens: 2,700.
        • _x000D_
      • Beam distance: 932' (284 m).
        • _x000D_
      • Beam width: 112' (34 m).
        • _x000D_
      • Connector: 3-pin DT.
        • _x000D_
      • Color temperature: 6000K.
        • _x000D_
      • Operating voltage: 9-32 VDC.
        • _x000D_
      • Pod size: 10.53" round by 2.52" deep.
        • _x000D_
      • Pod weight: 1.2 lbs.
        • _x000D_
      • IP rating: IP68 and IP69K waterproof, submersible, and resistant to high-pressure spray.
        • _x000D_
      • EMC: CISPR 25, CE, UKCA compliant.
        • _x000D_
      • Warranty: Limited lifetime.
        • _x000D_
      • What’s included: Explora Driving Light Bar, smoked lens cover, black zinc mounting hardware, single-light modular wiring harness.
        • _x000D_
      • Fits universal applications; some adaptation may be required.
        • _x000D_

      Description

      Advanced LED Off-Road Lighting. The Vision X 10-Inch Explora Single Row LED Light Bar with Dual-Color DRL and Flood/Spot Combo Beam delivers powerful and versatile lighting designed for off-road enthusiasts and automotive applications. It offers exceptional brightness and customizable lighting modes, enhancing visibility and vehicle aesthetics in diverse driving conditions.

      _x000D__x000D_

      Construction and Appearance. This light bar features high-quality materials, including a durable housing with an ultra-reflective honeycomb optic design powered by CREE XTE LEDs. It includes interchangeable silicone trim rings and snap-on lenses in various colors for personalized styling. The unit is complemented by rugged black zinc mounting hardware for a sleek and durable appearance.

      _x000D__x000D_

      Installation. Designed for straightforward installation, this light bar incorporates internal relay technology that eliminates the need for external relays, simplifying wiring. Depending on your vehicle and mounting location, minimal drilling may be necessary.

      _x000D__x000D_

      Warranty. Backed by a limited lifetime warranty, this product ensures long-term reliability and customer confidence.

      _x000D__x000D_

      Application. Fits universal applications; some adaptation may be required.
