Integrated Thermostat Housing Assembly; 194-Degree (14-18 Silverado 1500)Find parts that fit my vehicle
Item S202561
Our Price
$99.99 each
Military, Medical & First Responders
$5.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- High Grade Stainless Steel And Copper Construction
- Meets Or Exceeds OEM Standards
- Consistent And Precise Response To Cooling System Needs
- Original Equipment Design For Worry-Free Direct Fit Replacement
- 100% Tested And Calibrated
- Gasket Or Seal Material Rubber
- Seal Quantity 1
- Gasket Or Seal Included Yes
- Start To Open Temperature 194 Deg. F
- Start To Open Temperature 90.00 Deg. C
- Outlet Port Quantity 2
- Mounting Hardware Included No
- Mounting Hole Quantity 3
- Gasket Or Seal Required Yes
- Grade Type Standard Replacement
- Material Plastic, Steel, Copper
- Includes Sensor No
- Valve Type Disk
- Bleeder Hole No
- Gasket Type O-Ring
- Outlet Port Outside Diameter 0.31 In
- Outlet Port Outside Diameter 7.87 Mm
- Outlet Port Outside Diameter 1.75 In
- Outlet Port Outside Diameter 44.45 Mm
- Actuator Type Mechanical
- Bypass Quantity 1
- Inlet Hose Connection Type Bolt On
- Inlet Inside Diameter 2.07 In
- Inlet Inside Diameter 52.58 Mm
- Outlet Port Length 1.23 In
- Outlet Port Length 31.24 Mm
- Inside Diameter 2.07 In
- Outlet Port Inside Diameter 1.07 In
- Terminal Quantity 0
- Inlet Quantity 1
- Flange Width 3.40 In
- Bypass Outside Diameter 0.35 In
- Inside Diameter 52.58 Mm
- Flange Width 86.36 Mm
- Outlet Port Inside Diameter 27.18 Mm
- Bypass Outside Diameter 8.89 Mm
- Outlet Hose Connection Type Barbed
- MAP Controlled No
- Bypass Hose Connection Type Barbed
- Bypass Length 0.97 In
- Inlet Outside Diameter 2.61 In
- Flange Length 3.38 In
- Flange Length 85.85 Mm
- Bolt Hole Center To Bolt Hole Center 2.80 In
- Bolt Hole Center To Bolt Hole Center 71.12 Mm
- Bolt Hole Center To Bolt Hole Center 2.80 In
- Flange Thickness 0.41 In
- Mounting Hole Diameter 0.25 In
- Bypass Inside Diameter 0.08 In
- Flange Thickness 10.41 Mm
- Mounting Hole Diameter 6.35 Mm
- Bolt Hole Center To Bolt Hole Center 71.12 Mm
- Bolt Hole Center To Bolt Hole Center 3.02 In
- Bolt Hole Center To Bolt Hole Center 76.71 Mm
- Bypass Inside Diameter 2.03 Mm
- Inlet Outside Diameter 66.29 Mm
- Bypass Length 24.64 Mm
- Fits 14-18 Silverado 1500
Description

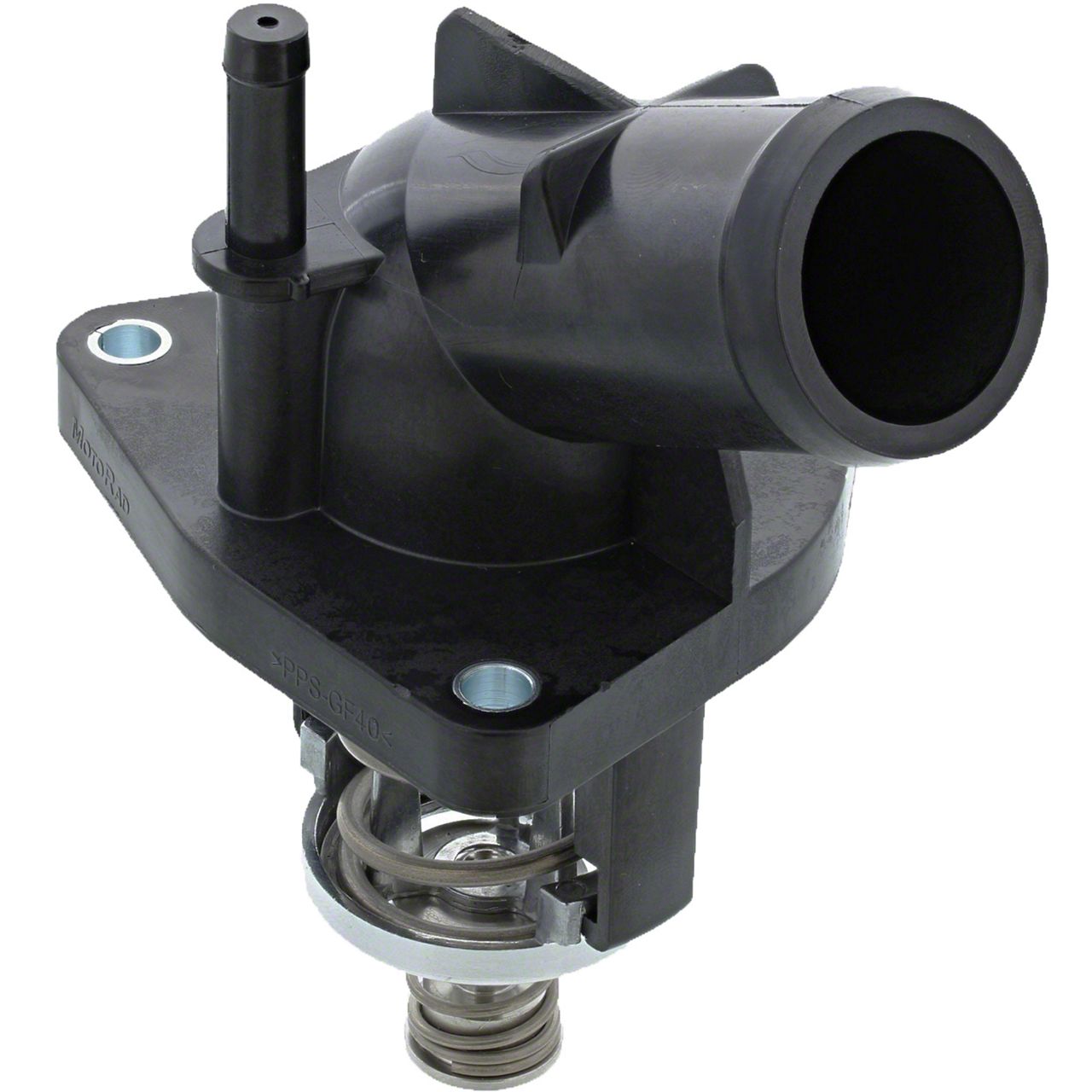

Integrated Thermostat Assembly. The Integrated Thermostat Housing Assembly; 194-Degree regulates engine temperature by controlling coolant flow. It ensures optimal engine performance and prevents overheating by opening at a precise temperature. This direct-fit replacement maintains reliable cooling system operation.
Construction and Appearance. Crafted from high-grade stainless steel and copper, this thermostat assembly offers durability and corrosion resistance. It features a mechanical disk valve, a rubber O-ring gasket, and a black plastic housing for a finished, OEM-quality look and reliable sealing.
Installation. Designed for straightforward installation, this thermostat housing assembly requires no drilling and fits directly using existing mounting holes. It includes the necessary gasket but excludes mounting hardware for ease of replacement.
Application. Engineered specifically to fit the 14-18 Silverado 1500, this thermostat housing assembly provides a perfect match for maintaining the vehicle�s cooling efficiency without compatibility issues.
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Integrated Thermostat Housing Assembly
