Installation Time
(approx) 1 Hour
Difficulty Level:
Simple installation for anyone.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Integrated Thermostat Housing Assembly; 160-Degree (14-18 Silverado 1500)Find parts that fit my vehicle
Item S202559
Our Price
$109.99 each
Military, Medical & First Responders
$5.50 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Save with Open Box
From $60.49
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- High Grade Stainless Steel And Copper Construction
- Meets Or Exceeds OEM Standards
- Consistent And Precise Response To Cooling System Needs
- Original Equipment Design For Worry-Free Direct Fit Replacement
- 100% Tested And Calibrated
- Seal Quantity: 1
- Bypass Hose Connection Type: Barbed
- Inlet Hose Connection Type: Bolt On
- Bypass Quantity: 1
- Valve Type: Disk
- Bypass Length: 0.97 In
- Bypass Length: 24.64 Mm
- Outlet Hose Connection Type: Barbed
- Includes Sensor: No
- Inside Diameter: 2.07 In
- Inside Diameter: 52.58 Mm
- Gasket Or Seal Included: Yes
- Outlet Port Inside Diameter: 1.07 In
- Outlet Port Inside Diameter: 27.18 Mm
- Material: Plastic
- Material: Stainless Steel
- Material: Copper
- Mounting Hole Quantity: 3
- Grade Type: Standard Replacement
- Bolt Hole Center To Bolt Hole Center: 2.80 In
- Bolt Hole Center To Bolt Hole Center: 71.12 Mm
- Bolt Hole Center To Bolt Hole Center: 3.02 In
- Bolt Hole Center To Bolt Hole Center: 76.71 Mm
- Mounting Hardware Included: No
- MAP Controlled: No
- Inlet Outside Diameter: 2.61 In
- Inlet Outside Diameter: 66.29 Mm
- Gasket Or Seal Required: Yes
- Inlet Quantity: 1
- Terminal Quantity: 0
- Gasket Or Seal Material: Rubber
- Flange Width: 3.40 In
- Flange Width: 86.36 Mm
- Includes Jiggle Pin Check Valve: No
- Outlet Port Quantity: 2
- Bypass Inside Diameter: 0.08 In
- Bypass Inside Diameter: 2.03 Mm
- Bypass Outside Diameter: 0.35 In
- Bypass Outside Diameter: 8.89 Mm
- Flange Length: 3.38 In
- Flange Length: 85.85 Mm
- Outlet Port Length: 1.23 In
- Outlet Port Length: 31.24 Mm
- Gasket Type: O-Ring
- Inlet Inside Diameter: 2.07 In
- Inlet Inside Diameter: 52.58 Mm
- Bleeder Hole: No
- Actuator Type: Mechanical
- Flange Thickness: 0.41 In
- Flange Thickness: 10.41 Mm
- Start To Open Temperature: 160.0 Deg. F
- Start To Open Temperature: 71.11 Deg. C
- Outlet Port Outside Diameter: 0.31 In
- Outlet Port Outside Diameter: 7.87 Mm
- Outlet Port Outside Diameter: 1.75 In
- Mounting Hole Diameter: 0.25 In
- Mounting Hole Diameter: 6.35 Mm
- Outlet Port Outside Diameter: 44.45 Mm
- Fits 14-18 Silverado 1500
Description

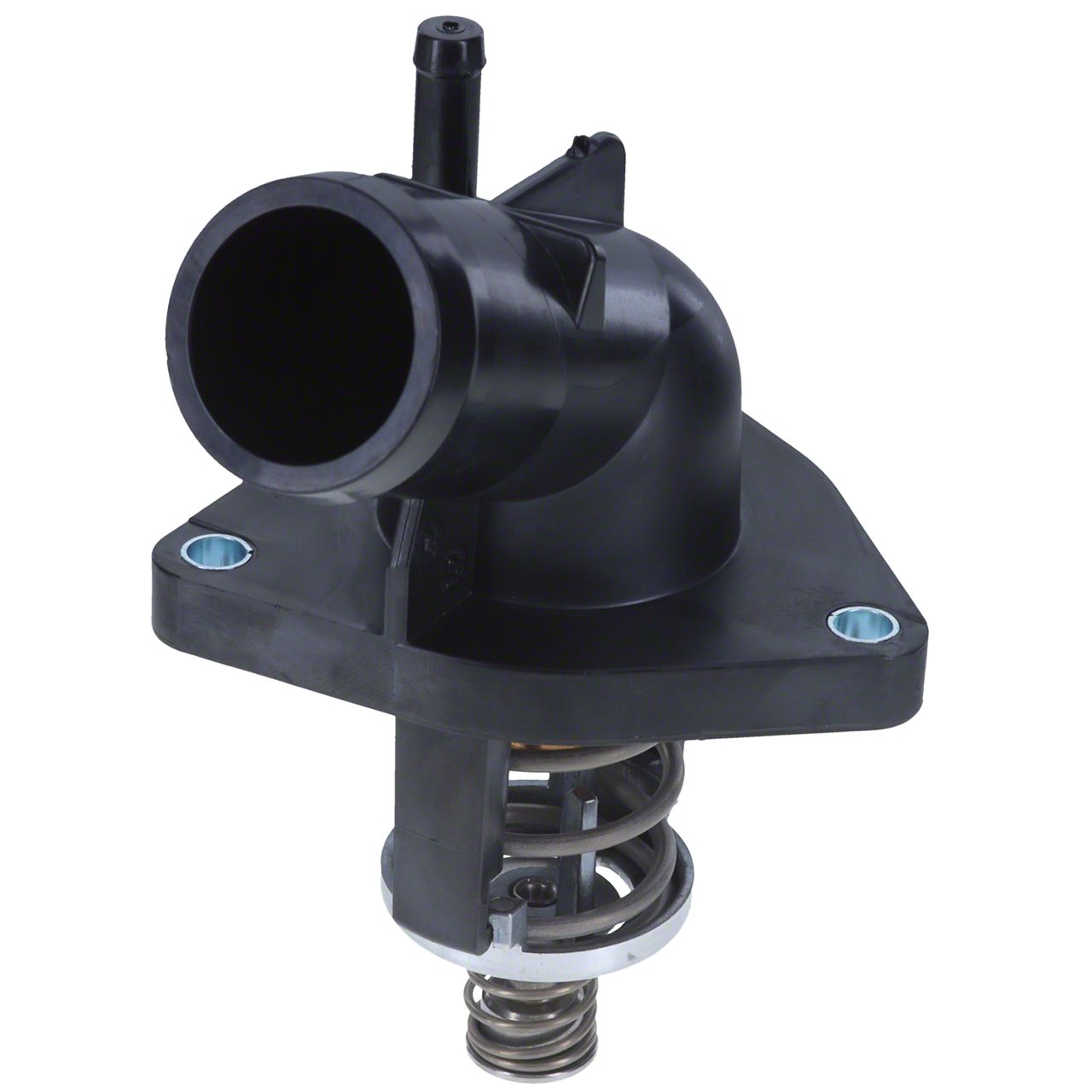

Thermostat Housing Assembly. This thermostat housing assembly regulates engine temperature by opening at a precise 160 degrees F (71.11 degrees C) to manage coolant flow within the vehicle’s cooling system. It ensures the engine warms efficiently and helps prevent overheating by controlling coolant circulation.
Durable Construction. Made from high-grade stainless steel and copper with a plastic flange, this assembly offers durability and corrosion resistance. It features a black finish and includes rubber O-ring gaskets to ensure a secure seal. The design provides an OEM-equivalent fit and finish for reliable performance.
Installation. Designed for a direct fit replacement, this thermostat housing installs using existing mounting points and requires no modifications. The bolt-on mount style uses the included seal for a straightforward installation suitable for professional or experienced DIY mechanics.
Application. This thermostat housing assembly fits the 2014-2018 Silverado 1500, providing a direct replacement solution compatible with factory specifications and without modifications.
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Thermostat Housing Assembly
