Roush R2300 525 HP Supercharger - Phase 1 Kit (11-14 6.2L F-150 Raptor)

Market Price $6,399.99 You Save 2% ($150.00)
Starting At


FREE Shipping
  • Item T527300-BB
  • MPN# 421246

Will this fit your Truck?

Ship to: ASHBURN - 20146
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Features & Details

    • Phase 1 Kit - 525 Horsepower and 535 ft./lb. of Torque
    • ROUSH R2300 2.3L TVS® Supercharger
    • Cold Air Induction w/ 100mm MAF Tube
    • Twin 60mm Throttle Body & Spacer
    • Unique High Flow Fuel Rail w/ 47 lb Injectors
    • Air-to-Water Intercooler System
    • 50 State Legal - CARB EO# D-418-23
    • ROUSH Flash Voucher Card
    • 3 Year / 36,000 Mile Limited Parts Warranty
    • For Automatic Transmissions Only
    • Fits 2011-2014 6.2L SVT Raptors, Excluding Raptors
    Unleash More Power. Add this ROUSH R2300 TVS® Phase 1 Supercharger Kit to your 2011-2014 6.2L SVT Raptor and feel the instant throttle response and increased power throughout the entire power band. With the addition of this supercharger, your 6.2L 2V would produce 525 Horsepower and 535 ft./lb. of torque, which is a gain of 114 HP and 101 ft./lb. over stock. You'll be wondering why you didn't install this Phase 1 Calibrated Supercharger Kit on your Raptor sooner.

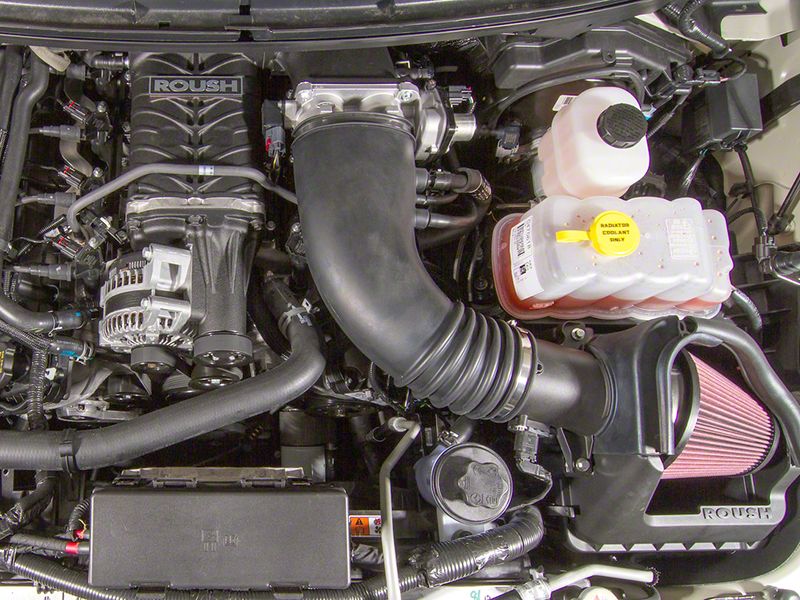

    R2300 2.3L TVS® Roots Supercharger. This Phase 1 Kit will transform your 6.2L Raptor into a tire-shredding beast. Kit comes with a 2.3L TVS® Supercharger with a black finish, upper and lower aluminum intake manifolds, an air-to-water intercooler, low temp radiator, coolant degas bottle, ROUSH® cold air induction system with 100mm MAF tube, twin 60mm throttle body with matching spacer, supercharger pulley, unique high flow fuel rail with 47 lb injectors and all necessary fasteners, wiring, brackets, hoses and clamps for installation.

    High-Flow Technology. The ROUSH R2300 2.3L TVS® Supercharger features Eaton's cutting edge Twin Vortices Series (TVS) rotating assembly that is designed to offer increased power and improved fuel economy in a smaller package for uncompromised performance. This roots-type, positive displacement supercharger features twin four-lobe rotors that are twisted 160-degrees. This combination will greatly enhance thermal efficiency, enabling higher volume capacity and higher operational speeds.

    ROUSH PCM Calibration. As part of this Phase 1 Package, you will receive a ROUSH® PCM Flash Voucher Card, which is used to obtain the specific calibration needed for your Raptor and requires ROUSH Diagnostic Tool (RDT) software and a J2534 Pass-Through device to upgrade your PCM (software and pass-through device not included). If you don't have access to a pass-through device, you have the option of sending your PCM back to Roush, where they will flash your PCM for an additional $100 fee.

    CARB Certified. Best of all, this Roush R2300 Phase 1 Supercharger Kit is 50-state smog legal under Carb EO# D-418-23.

    Roush Performance Quality - Guaranteed. This Supercharger Phase 1 Kit is protected by ROUSH's Limited 3 Year / 36,000 Mile Parts Warranty from date of purchase on ROUSH components only and does not include labor. This kit also features the ROUSH® logo, showing that serious performance lies within when you raise your hood.

    Application. This Roush R2300 2.3L TVS® 525 HP Phase 1 Supercharger Kit is specifically designed for use on the 2011-2014 6.2L SVT Raptors equipped with an automatic transmission.

    Please Note: Roush Supercharger Systems are built to order for our customers. Because of this there can be a 5 to 7 day lead time on orders once your information is received.

    Fitment: 2011 2012 2013 2014 Details

    What's in the Box
    • R2300 TVS Supercharger
    • Upper and Lower Intake Manifolds
    • Air-to-Water Intercooler System
    • Dual-Core Low Temp Radiator
    • Degas Bottle
    • Twin 60mm Throttle Body w/ Spacer
    • High Flow Cold Air Induction System
    • 100mm MAF Tube/Housing
    • Fuel Charging Assembly
    • High Flow Fuel Rail w/ 47lb Injectors
    • Supercharger Pulley
    • ROUSH Flash Voucher Card
    • All required fasteners, wiring, brackets, hoses & clamps
    Installation Info
