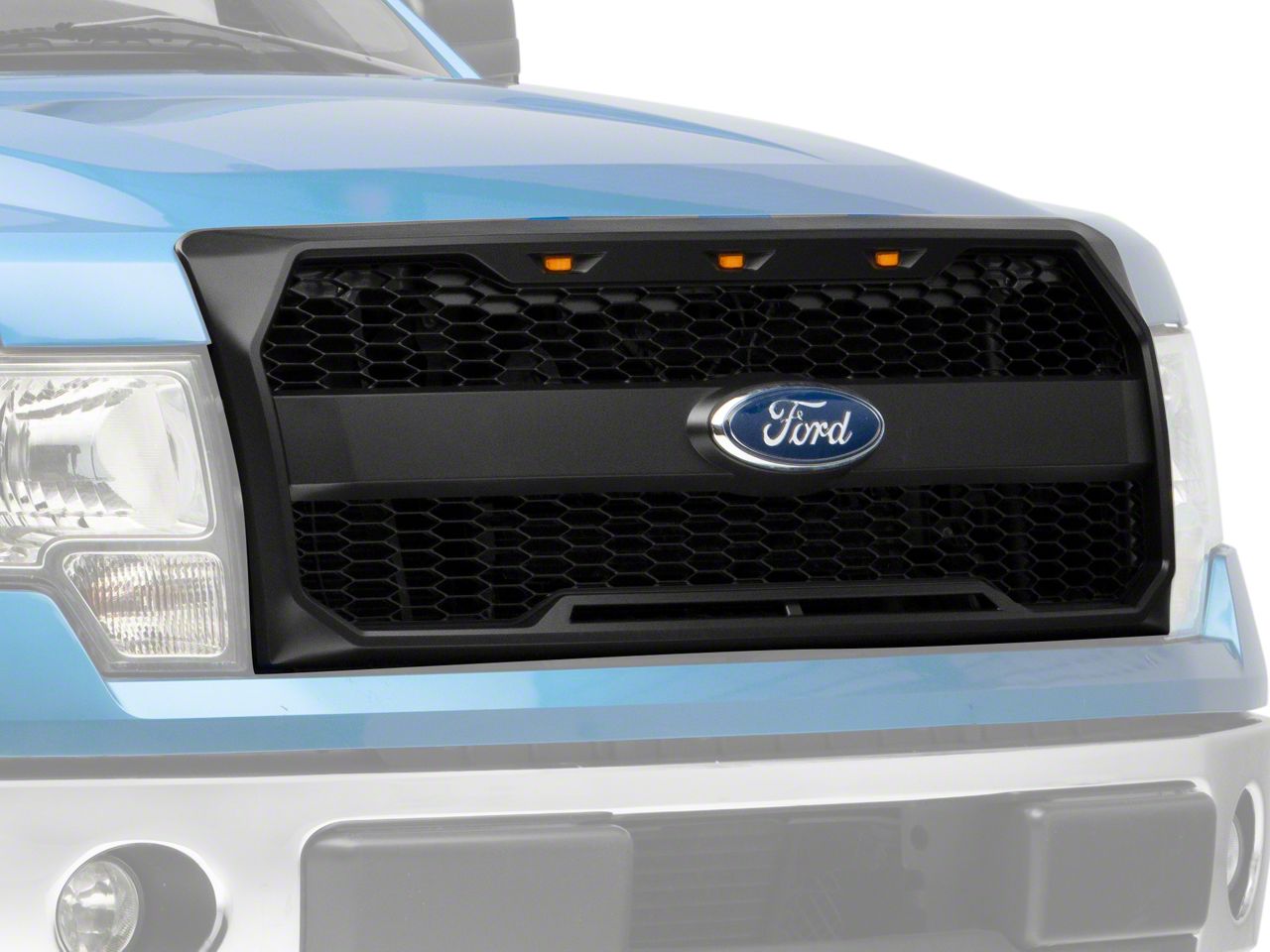

RedRock Upper Replacement Grille with LED Lighting and Emblem Surround; Matte Black (09-14 F-150, Excluding Raptor)

Item T555888
Verify parts fit and get product recommendations.
F-150 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Our Price

$234.99 (each)

FREE Shipping Market Price $275.99 You Save 15% ($41.00) Up to 10% off for Military & First Responders! See Details

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Product Videos

      Justin: The Redrock Upper Grille Replacement that we have here today would be a great choice for the '09 to '14 F-150 owners going for that Raptor styling in black, but would prefer to keep that factory blue oval emblem proudly displayed front and center. Now, this grille will pack a durable automotive-grade ABS plastic construction, along with that matte black finish, and, of course, your amber LED running lights all for right around the high $200 price point.Site's gonna call this one a pretty strong one out of three wrenches on the difficulty meter, maybe a couple of hours to complete from start to finish, as we'll show you later in the video. So, swapping grilles on your F-150's a relatively easy and inexpensive way to totally change up the look of not only the front end but also switch up the vibe of the entire truck in general.Now, maybe you're just trying to ditch some factory chrome, possibly upgrade a base grille, whatever the case, an aftermarket option will help get you there. Now, on that same topic, guys, one of the nice things about the grille category, in particular, is just the sheer number of options you have to choose from ranging from mild to wild and really everything in between.Now, in fact, if you don't believe me, feel free to check out the rest of our selection for the '09 to '14 trucks back on the site just to get a better sense of what I'm talking about. Now this option to me is gonna be one part Raptor grille and one part Super Duty grille, thanks to that bold bar running across the middle. It's gonna give off more of a modern vibe and still retain that iconic blue oval emblem. And that's not something every grille offers, by the way.Now, as far as raptor inspiration is concerned, that's pretty clear, right, guys? You've got the same honeycomb design for the grille itself, along with your three amber LED running lights up top here, an extremely popular edition lately for a lot of truck owners out there, not just the Raptor. Now, materials are gonna be very similar to that of your factory grille as well because you are looking at that durable and lightweight ABS plastic.And with this particular option, it's finished off in matte black, which I really like because I feel like that just goes with everything, matches some of the black plastic on the exterior of your truck, or if you've gone with kind of that blacked-out look with smoke lighting, black wheels, obviously, this is an easy fit for that as well.Now, the grille itself has been designed using OEM Ford CAD data, which will allow the grille to install like a factory grille, but more importantly, will fit like a factory grille. So, you're not gonna see any weird gaps or imperfections here once installed. Now, the grille, again, will use your factory front emblem, or you can use this as an opportunity to maybe switch out to something different, blacked-out emblem, sometimes they have the emblems that light up. Whatever the case, you can do that or just simply reinstall your stocker if you'd like.Last but not least, guys, the grille does include the three amber LED lights running across the top here, along with all of the wiring needed to get them up and running. Now, if you didn't know, these running lights will tap into your factory headlights, so, therefore, they will illuminate any time your parking lights or your headlights have been switched on and definitely give off a pretty cool vibe when in action.But now we wanna shift gears and get into the install. And again, site's gonna call this one a pretty solid one out of three wrenches on the difficulty meter, maybe an hour or two to get everything in place. Now, the actual physical grille swap itself will be a breeze on this particular truck, but because there is a small amount of wiring needed to get those amber LEDs up and running, it's gonna stretch that install out maybe a little longer than it normally would.But regardless, to give you a better idea of how that wiring will go down and what it takes to swap the grille on your '09 to '14 at home, feel free to check out our detailed walkthrough and tool breakdown.Man: The tools you'll need for this project are a Phillips head screwdriver, a T25 Torx bit, a 10-millimeter socket, a short extension, a ratchet, soft trim removal tool, a flathead screwdriver, wire cutters and clippers, and/or a pair of pliers.Hi, everyone. Today, we're gonna be replacing the grille on our F-150, but before we can do that, we've gotta get the old one uninstalled first. So, let's get started with that. So, the first thing we have to do is remove these two brackets, one on each side of the grille using our 10-millimeter socket. There's three bolts on top and one on the bottom, so let's get those taken out. Now, there are four nuts along the top of the grille that hold the grille to the hood. For our purposes just to speed things up, we've already removed half of them, so we'll go ahead and remove the other two right now. Now we can remove the last two nuts on the ends of the grille and pull it out of the hood.Now we will be reusing a couple of pieces off of the stock grille, such as the front emblem and this lower brace. So, let's go ahead, take those off using our 10-millimeter socket for the emblem and a T25 Torx bit for the lower brace.All right. Once you've got the nuts removed from the back of the logo, we can use our flathead screwdriver to lift up on these black tabs here and here to release the studs so the emblem can actually be removed. Now we can just push the emblem into the new grille and reattach the nuts.Now, in order to put the nuts back onto the emblem, we'll have to remove these six brackets and lift the grille out so that we can attach the nuts. Now we can reattach our brackets. Now we can go ahead and reattach our lower brace using our original hardware. Now we can install our new grille onto our hood, making sure that the five spring clips at the top line up with the five slots at the top of the hood, and then we'll attach our nuts. And now repeat that process for the other side.Now, we can go ahead and run the wiring harness to our LED lights in the grille and run them down into the engine compartment and get those ready to hook up. Now you can use your soft trim removal tool to remove the two outside push pins on the hood insulation so that we can run our wire underneath that.So, we're gonna connect our wires to the corner marker light of the headlight. So, in order to do that, we'll need to take the headlight out first. So, using our 10-millimeter socket, let's go ahead and remove the two bolts on top and the one bolt in front.All right. Now, the kit does come with a couple of Scotchlok connectors to be able to tap into the two wires for our corner marker light. Our truck already has a different type of connector, so we're just going to attach a couple of spade bits to the end of this and then plug it into our system. But to use these Scotchloks, all you have to do is insert one end of the wire into the Scotchlok, slide the other end over the other wire that you're connecting to, squeeze it together with a pair of pliers, and lock it down. And that'll get you your power that you need.So, let's go ahead and get our spade connectors attached to our wire so that we can hook it up now. Now, our red wire from our grille harness is gonna tap into the yellow and green wire from our side marker light, and the black wire is going to go to the other wire. Now that we've got everything hooked up, we can go ahead and reinstall our headlight.Once we get our headlight reinstalled, then double-check your routing of the wiring harness to make sure that it's not near any moving parts or any extreme heat sources. And then you can use the supplied zip ties to secure them along the way.And that wraps up our reviewing install of our RedRock Upper Replacement Grille with LED Lighting and Emblem Surround in a Matte Black Finish for the '09 to '14 F-150 excluding Raptor. Thanks for watching. And remember for all things F-150, keep it right here at americantrucks.com.

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • Honeycomb Pattern Design
      • Three Amber Running Lights
      • Reuses Factory Grille Emblem
      • Increases Air Flow to Radiator
      • Upper Replacement Grille
      • Injection Molded ABS Material
      • OEM Black Finish
      • Straight Forward Installation - No Cutting Required
      • Fits 2009-2014 Ford F-150 Models, Excluding Raptor

      Description

      Forceful Styling. A RedRock 4x4 Upper Replacement Grille will add forceful styling to the front end of your 2009-2014 F-150. Featuring a unique honeycomb style pattern, this Baja inspired Grille includes three integrated LED accent lights across the top for a rugged appearance. Designed to be installed in place of your factory grille, this RedRock 4x4 Grille will transform the appearance of your F-150 from a mild mannered daily driver into a mean Baja machine.

      LED Accent Lighting. This Honeycomb Style Grille also includes three high mount amber LED accent lights. These LED accent lights come with a wiring harness that simply splices into your F-150's existing factory headlight harness. The LEDs will then automatically activate in conjunction with your running lights. The eye-catching LEDs not only look great, but will also make your F-150 more visible to other drivers at night and in poor weather conditions.

      Improves Engine Cooling. This RedRock 4x4 Grille not only adds great styling to the front end of your F-150, but it will also increase air flow across the radiator - when compared to the stock grille. This additional air helps to improve engine cooling, which in turn improves performance.

      High Quality ABS Construction. RedRock 4x4 manufactures their Upper Replacement Grille from an injection molded acrylonitrile butadiene styrene (ABS) material using the original OEM CAD data from Ford to ensure a perfect fit. ABS is an extremely strong material known for its light-weight, superior durability and impact resistance - making it perfect to withstand the hazards of daily driving. Completed in an matte black finish, this Grille can be painted if desired.

      Simple Straight Forward Installation. Designed to be a direct fit replacement for the original factory grille, this RedRock 4x4 Grille installs reusing the stock mounting points and included hardware. There is no cutting or modifications required for a clean straight forward installation. Installation can be completed in about 2 hours with just basic hand tools. This Grille is designed to reuse your factory Ford grille emblem.

      Application. This RedRock 4x4 Upper Replacement Grille with LED Lighting; Matte Black is designed to fit 2009-2014 Ford F-150 models, excluding Raptor. This is a replacement grille not an overlay.

      Fitment:

      Details

      RedRock T555888

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • (1) Grille with LED Lights
      • (1) Wiring Harness
      • (3) Scotchlok Connectors
      • Installation Hardware
      4.7

      Customer Reviews (500+)

        Questions & Answers

        10 More Questions

        Will It Fit My F-150

        • 3.5L V6 EcoBoost - 11, 12, 13, 14
        • 3.7L V6 - 11, 12, 13, 14
        • 4.6L V8 - 09, 10
        • 5.0L V8 - 11, 12, 13, 14
        • 5.4L V8 - 09, 10
        • 5.4L V8 Raptor - 10
        • 6.2L V8 - 11, 12, 13, 14
        • 6.2L V8 Raptor - 10, 11, 12, 13, 14
