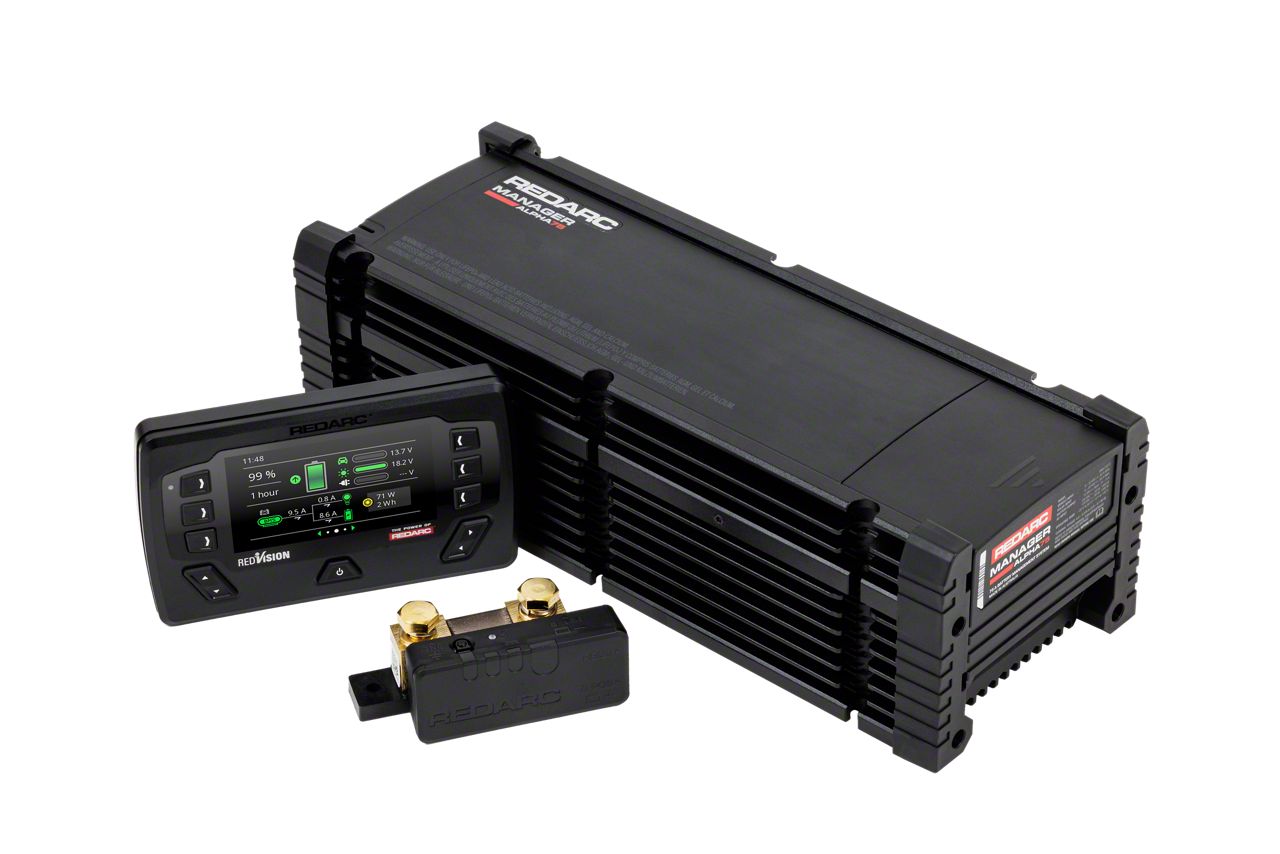

Redarc Manager Alpha75 Battery Management System with RedVision; 75A (Universal; Some Adaptation May Be Required)

Item SD66334
Product Image
2 Reviews of Redarc
Our Price

$3,899.00

Military, Medical & First Responders $194.95 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • Perfect for charging auxiliary batteries used in trucks, recreational vehicles, and camper trailers
        • _x000D_
      • Complete battery management system combining DC, AC, and solar charging inputs
        • _x000D_
      • Capable of delivering 75A of charge simultaneously from vehicle (DC), shore (AC), and solar sources
        • _x000D_
      • Built-in Green Power Priority™ prioritizes solar input, minimizing alternator load and saving fuel
        • _x000D_
      • Supports powering high-demand appliances including induction cooktops, fridges, and air conditioners
        • _x000D_
      • Up to 55% smaller and 28% lighter than competing systems with comparable features
        • _x000D_
      • Start battery charge and recovery modes use excess solar power for start battery maintenance
        • _x000D_
      • Includes RedVision display for real-time state of charge, remaining charge time, and current flow monitoring
        • _x000D_
      • Bluetooth 5.1 technology with connection range up to 42 meters
        • _x000D_
      • Tested to toughest vibration standards and operates within -4°F to 140°F (-20°C to 60°C) temperature range
        • _x000D_
      • Compatible with Gel, AGM, Calcium, standard lead acid, and lithium batteries
        • _x000D_
      • Nominal output voltage: 12V; nominal current rating: 75A
        • _x000D_
      • Dimensions: 4.72” Height, 6.06” Width, 15.75” Depth
        • _x000D_
      • Weight: 13.25 lbs (6.0 kg)
        • _x000D_
      • Warranty: 2 years
        • _x000D_
      • Suitable for universal applications; some adaptation may be required depending on vehicle or system configuration
        • _x000D_

      Description

      Advanced Battery Management. The Redarc Manager Alpha75 Battery Management System with RedVision; 75A is designed to efficiently charge auxiliary batteries in trucks, recreational vehicles, and camper trailers by intelligently combining DC, AC, and solar power inputs. It ensures faster, smarter charging to keep your secondary batteries reliably powered from any available source, supporting high-demand appliances throughout your adventures.

      _x000D__x000D_

      Construction and Appearance. Built with rugged, durable materials engineered to withstand extreme conditions from freezing temperatures to intense heat, the unit features a compact design that is up to 55% smaller and 28% lighter than comparable systems. Its sleek finish makes it ideal for installation in a wide variety of vehicles.

      _x000D__x000D_

      Installation. Installation is straightforward, generally requiring only standard vehicle electrical access without extensive drilling or modifications. Basic wiring skills are sufficient to install the Manager Alpha75 into your vehicle’s power system.

      _x000D__x000D_

      Warranty. This product includes a 2-year manufacturer warranty, providing confidence in its reliability and support.

      _x000D__x000D_

      Application. Designed for universal use, though some system or vehicle-specific adaptation may be required.

      Redarc BMS12075-NA
