Raxiom Vent Integrated Boost Gauge w/o Vent Housing (15-20 F-150)

Item T528309
Market Price $240.45 You Save 5% ($11.45)
Our Price


FREE Shipping

Open Box from $91.60

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Features, Video & Details

    • Ideal for any Supercharged or Turbocharged F-150s
    • Real-Time Boost and Vacuum Monitoring
    • 45 PSI Sensor Included
    • Battery Voltage Check
    • Integrated Digital Vent Gauge
    • Reuses Existing Left Hand OEM Vent Housing
    • Mounts in Factory HVAC Vent - Does Not Obstruct Airflow
    • Requires a Boost Tap for Installation
    • Fits all 2015-2020 F-150s

    Review & Installation Video

    Review & Install Video

    What's going, guys? I'm Alex from, and this is my detailed review and breakdown of the Raxiom Vent-Integrated Boost Gauge without Housing, fitting your 2015 through current F-150. So in this video, I'm gonna talk about who this might appeal to, what you should expect to be spending, and then we'll take a quick look at installation, where you're gonna be looking at an easy one out of three wrenches on the difficulty meter and about an hour to get this onto your truck.So this kit that I have here in front of me today should definitely appeal to any EcoBoost owner or a blown Coyote F-150 owner that's not only looking to incorporate a very cool convenience into their cabin, but more importantly, to monitor your boost that your turbos are producing or turbo on the fly. So not only is this gonna be a very cool, modern convenience as well as getting away with a factory-style look for your F-150's cabin, but for an EcoBoost owner, like myself, or for any blown Coyote truck owners out there, you're gonna have the ability to see what kind of boost you're producing on the fly.Now, for an EcoBoost owner, like myself, again, I do have a tendency to add performance parts onto my truck, even though it's not a Mustang. But I actually wanna see what kind of numbers I'm making right then and there, as if I'm gonna installing a cold air intake, and then a throttle body, and then a handheld tuner, and then maybe getting into some downpipes, I actually wanna see just how much boost both of my turbos are producing. Now, another cool feature about this gauge is that you're actually gonna have the ability to measure your battery voltage. So if your truck is something where it doesn't get driven daily, you're gonna have the ability to see just how well it's performing and keep everything in check. Now, I do wanna mention, if you're gonna be looking for a little bit more functionality, like having the ability to measure, say, air intake temperatures or measure 0 to 60 times, I would definitely suggest checking out the multi-function gauge, which we do have on site separately.So in terms of the construction of this kit, everything that I have here on the table in front of you today is gonna be what you're gonna receive in the box. Now, that's gonna be from your module, your vacuum tap, the face plate itself, some quick-splice connectors, as well as a couple of zip ties. There's really nothing more that you're gonna need to get this onto your truck, but I do wanna add that, if you're gonna need to stretch that hose, we do have a separate one on site, which is a little bit longer.So in terms of the pricing here, you should expect to be spending around 230 bucks for this kit, which, in my opinion, is pretty affordable, considering some of the other options out there may make you pick the gauge itself as well as picking up the housing after the fact. Again, for the money here, I think you're gonna be getting away with a ton of functionality. But not only that, you're gonna be getting away with some great OE-style looks, which is definitely a conversation piece inside of your F-150, as this is gonna sit very flush as well as not have some bright and kinda ugly colors, which I don't think would mesh too well with the interior of your F-150.So switching gears and looking at the installation here, just like I had said in the beginning of the video, you're gonna be looking at a very simple one out of three wrenches on the difficulty meter and about an hour to get this onto your truck. So let's take a closer look at what's gonna be entailed. You're gonna have to start by pulling your driver's side vent housing, which you essentially need to be pulling out and then up to remove that. So after this, essentially disconnect the line of the bottom of the vent housing and pull the fascia trim by releasing the clips on the sides. After that, you're gonna need to pull the slot assembly, and you're damn near done. So once that's done, you're g

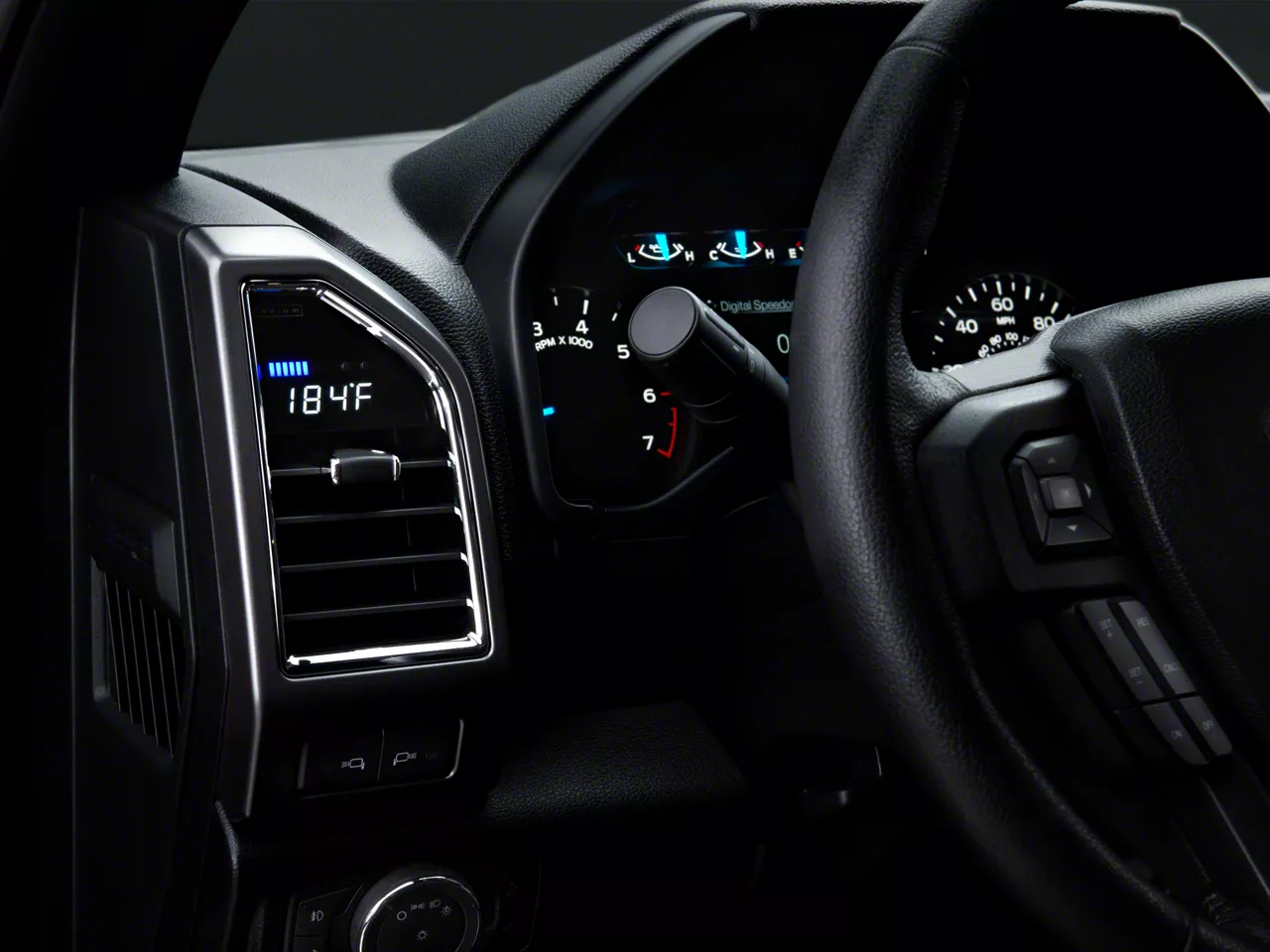

    Digital Vent Boost Gauge. A Raxiom Vent Integrated Boost Gauge is a must have upgrade for any force inducted F-150 owner. This Boost Gauge will allow you to carefully monitor your F-150's boost and vacuum pressure to ensure peak performance. Raxiom designed their Boost Gauge to install into your F-150's left hand HVAC vent for a clean sleek OE appearance. When installed this Gauge will not obstruct the airflow of your F150's HVAC system.

    Boost / Vacuum Pressure. Raxiom engineered their Boost Gauge to monitor your F-150's boost and vacuum pressure in real time. Using the supplied 45 PSI high resolution boost sensor this Gauge will accurately measure your F-150's manifold, turbocharger or supercharger boost pressure. By tapping into a vacuum line the Raxiom Boost Gauge will provide more precise readings than those taking from the OBDII port (PCM).

    Battery Voltage. The Raxiom Vent Integrated Boost Gauge not only monitors your F-150's Boost and Vacuum, it also monitors your battery voltage as well. Raxiom's Boost Gauge allows you to easily check your battery voltage with just a push of a button. This is a great feature for Trucks that are stored for long periods of time.

    Auto or Manual Dimmer. Raxiom designed their Boost Gauge so that it can be dimmed automatically in conjunction with your interior lights or manually with a push of a button. This is a really nice feature that further enhances its function and sleek appearance.

    Recommended Upgrade. If you find that the supplied vacuum line included with this Boost Gauge is too short for your needs, you will be glad to hear that Raxiom offers a 60" (5ft) Extension Kit. AmericanMuscle recommends purchasing the Extension Kit at the same time to avoid any installation headaches. Sold separately, see option listed above.

    Application. The Raxiom Vent Integrated Boost Gauge without Housing is perfect for any supercharged or turbocharged 2015 to 2020 F-150's, including the King Ranch, Lariat, Limited, Platinum, XL and XLT models. HVAC vent housing is not included, reuses your existing factory vent.


    Fitment: 2015 2016 2017 2018 2019 Details

    MPN# T528309

    CA Residents: WARNING: Cancer and Reproductive Harm -

    What's in the Box
    • (1) Digital Display
    • (1) AuxBox w/Sensor
    • (1) Vacuum Tubing
    • Wiring
    • Wire-taps
    • Zip-Ties
    Installation Info

      Customer Photos (3) Submit Your Photo

      View All 3 Photos

        Questions & Answers (7)

        5 Top Rated Questions

        in my truck I noticed it blows out very hoy air when the heat is on, its so got the vent handle get so hot you cant touch them. how would this hold up against the heat? would it over heat or cause damage to it over time ?

        • As long as your current vents are running properly, there is nothing to worry about in terms of the temperature of the gauge when the heat is on.

        Helpful (0)

        I have a 2017 2.7L. Will I need to buy the extra 5' of tubing or will what comes with it reach?

        • Depending on the application it may be required. I would suggest looking into the install prior to purchasing the gauge so you can measure or determine if you yourself will need that extra slack.

        Helpful (0)

        I have a 2018 2.7 f-150 SXT Eco Boost Do I have to purchase something else? Or it’s a complete kit?

        • The Raxiom Vent Integrated Boost Gauge without Housing is perfect for any supercharged or turbocharged 2015 to 2018 F-150's. If you find that the supplied vacuum line included with this Boost Gauge is too short for your needs, you will be glad to hear that Raxiom offers a 60" (5ft) ( ). AmericanTrucks recommends purchasing the Extension Kit at the same time to avoid any installation headaches. This is a complete kit.

        Helpful (0)

        So after reading reviews does this vent boost gauge cut off when truck is off or not? I am trying to get it because I have the Roush Nightmare F150 it’s supercharged not turbocharged would this gauge benefit my truck? Thx in advance

        • The Raxiom Vent Integrated Boost Gauge will turn on/off with the ignition key. This will read boost on both supercharged and turbocharged vehicles.

        Helpful (0)

        how is this different than OBD2 model?

        • The Raxiom Vent Integrated Boost Gauge will use an aftermarket high accuracy boost sensor, to allow for a more accurate boost reading than the stock boost PID sourced from the OBD II Port. Additionally since this does not tie into the OBD II Port, this will be unable to read anything other than boost and battery voltage.

        Helpful (0)
        Post Your Question
        2 More Questions
        When the vehicle is off, does the gauge turn off also, or stay powered up? 1 answer
        Does this gauge also display vacuum, or does it solely display boost? 1 answer

          Customer Reviews (7) Write a Review

          Overall Rating 4

          out of 5 stars

          Installation Time:Afternoon

          • Performance Gain 3 3
          • Fit 4.5 4.5
          • Bang For Your Buck 2.5 2.5

          • 1/5

            June 29, 2019

            Had high hopes for this

            This is the email that was written on 6/25/19 as instructed by a lady over the phone to an email she gave. Have yet to get any response, just the automated email with my case number. The gauge is cool when it works, but for $250 i expected it to lst more than a couple days. I wish the video would upload but it wont. My package came with no instructions, so i had to go dig around the site, and once i found them there is nothing about which line to tap into for boost pressure, it took some trial and error but finally got it, then the gauge decided to quit all together. Installed sunday, tapped into obd2 port for and -. Worked fine till tuesday afternoon, finally had time to trouble shoot and found something loose in the board, as you can see in the video i had and - the whole time, you can see when ever the bord is moved that the gauge loses power. Theres definitey something wrong with it. I dont want a refund, just a new board.


            Year: 2017 Engine: 2.7L V6 Ecoboost

            Helpful (0)

          • 5/5

            Installation Time: Afternoon

            April 07, 2019

            Great little gauge.

            Had this gauge for about a year, and it works great. I needed a boost gauge for a blown Coyote setup and this delivers, OE look, matching the cluster, and not blocking off the vent. The instructions are garbage, but after FINALLY finding a wiring diagram(today), the yellow wire taps into the grey/purple wire off of the headlight switch, and dims with the cluster.


            Year: 2017 Engine: 5.0L V8

            Helpful (0)

          • 4/5

            January 08, 2018

            Cool boost gauge.

            Looks nice, very unobtrusive way to mount a boost gauge. Relatively easy install, but arrived with absolutely no instructions. And the videos posted by AM are of little help. Detailed instructions or more detailed videos would be nice, including applications on both eccoboost motors.


            Year: 2016 Submodel: XLT Engine: 2.7L V6 Ecoboost

            Helpful (15)

          • 5/5

            December 28, 2017

            Just as promised

            I have been on your website for at least a month looking at your inventory, it’s very impressive and decided to try an order as a trial. I ordered a Raxiom vent integrated boost gauge for my charged 2016 f150. The process of ordering was painless and part arrived on time as promised. I’m positive there will be many more in the future because if you don’t have it I probably don’t need it.


            Year: 2016 Submodel: Lariat Engine: 5.0L V8

            Helpful (12)

          • 4/5

            July 25, 2017

            Looks great

            Looks great and works good. Seems to be good quality. Only thing is I think they need to be a little more detailed in the instructions on the wiring. The picture of the wiring in instructions looks nothing like the wiring I had on my 2017 f150. Overall I'm very happy


            Year: 2017 Engine: 2.7L V6 Ecoboost

            Helpful (14)

          • 4/5

            July 09, 2017

            Nice Looking Boost Gauge

            Instructions were easy until you got to hooking the power and ground up to vehicles OBD port. They leave you hanging as to which wire you must use and you must research info online elsewhere. I ordered the extra hose kit but ended up not needing it. You have plenty of hose if you tap into the brake booster vacuum line before the one-way valve. Most time consuming part for me was threading the hose from engine bay to cockpit through the firewall. Everything works and looks great. The only drawback is there is no auto power off function. LEDs are on constantly and I'm afraid to let truck sit for long periods of time without disconnecting the power wire.


            Year: 2015 Submodel: XLT Engine: 3.5L V6 Ecoboost

            Helpful (22)

          • 5/5

            August 03, 2016

            Street ready!

            So happy for this now when I put my race tune in I know how much boost I'm pushing !!


            Engine: 3.5L V6 Ecoboost

            Helpful (12)
