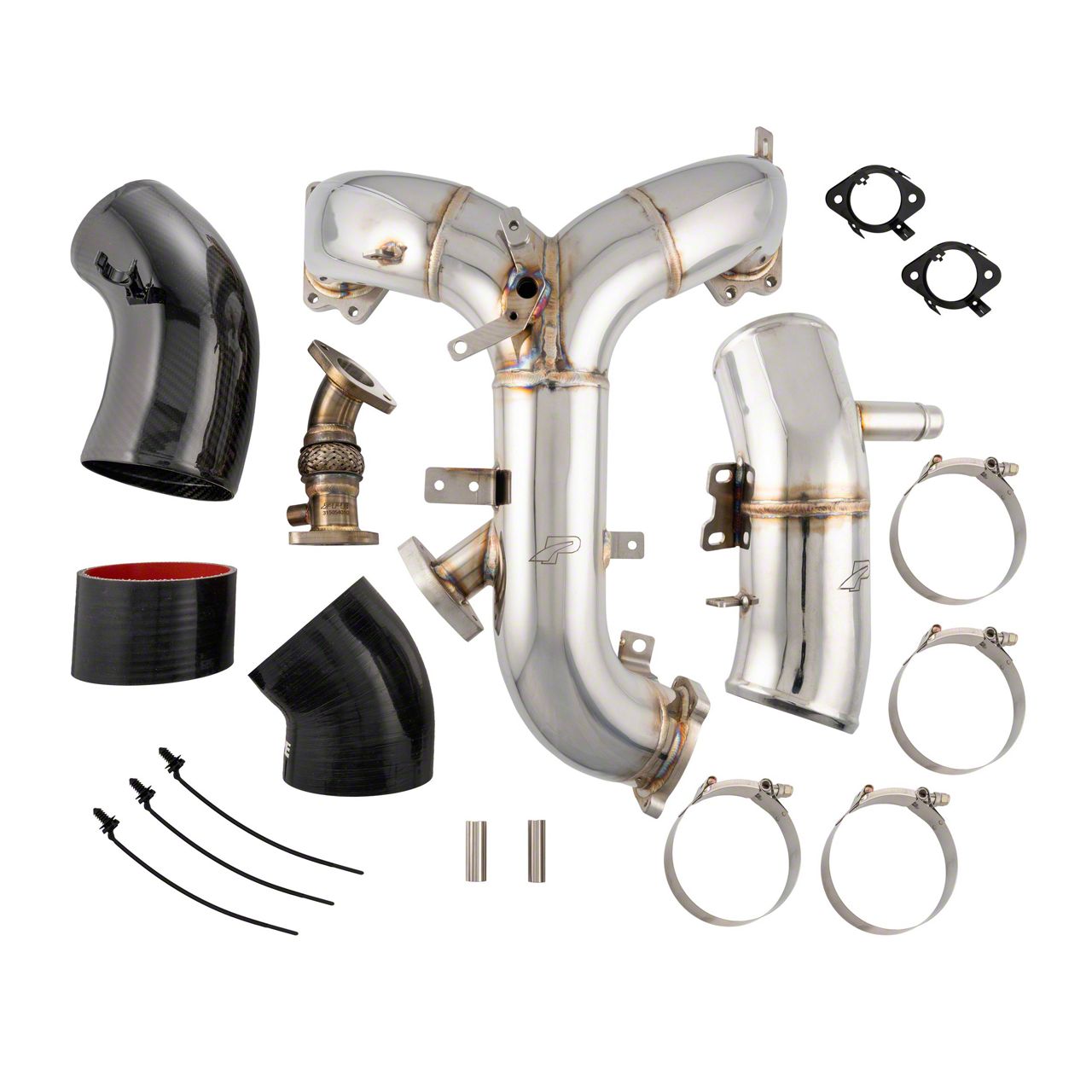

PPE Zilla Intake Manifold and Turbo Inlet Upgrade Kit; Polished (20-26 6.7L Powerstroke F-250 Super Duty)Find parts that fit my vehicle

Item SD78899
Product Image
$0.00
Want $10? Write one of the first 5 reviews
Our Price

$1,439.99

Military, Medical & First Responders Earn $72.00 in AT Cash Rewards. Get Verified

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Loading Indicator

      Product Information

      Description, Q&A, Specs & Installation

      Description

      The stock cast aluminum intake bridge manifold on the Ford 6.7L Power Stroke is a well-known performance bottleneck. Certain design characteristics of the stock manifold restrict fresh air intake, which is particularly unfavorable for engine performance. Some sections of the stock manifold’s internal passage are even narrower than a 2.5-inch-diameter tube, severely limiting airflow.

      _x000D_

      Additionally, the EGR inlet swirl is positioned directly in the center of the flow path, creating significant turbulence and flow disruption. This turbulence reduces both the intake air velocity and the volume of air entering the cylinder heads.

      _x000D_

      The PPE Performance Intake Manifold effectively eliminates these stock bottlenecks by utilizing large 3.25-inch stainless steel tubing, combined with hydroformed runners that seamlessly direct airflow into both cylinder heads. The problematic, flow-restricting EGR boss has been eliminated, creating unobstructed flow passages.

      _x000D_

      Furthermore, the EGR inlet port has been carefully repositioned and angled to ensure even distribution of fresh air and EGR gases to both banks, thereby maximizing volumetric efficiency. To support this, the kit includes a redesigned stainless steel EGR pipe and gaskets. With these enhancements, the PPE Performance Intake Manifold achieves a 69 percent higher maximum flow rate than the stock component.

      _x000D_

      On the turbo inlet side, the system features a four-inch stainless steel turbo inlet, paired with a dry-carbon-fiber airbox duct. Unlike the stock components, which transition from circular shape to oval shape and then back to circular shape, both PPE components maintain a fully round design.

      _x000D_

      This ensures higher flow efficiency and reduces frictional losses. Additionally, the factory plastic two-chamber turbo resonator has been removed, reducing air turbulence and weight, while enhancing turbo sound.

      _x000D_

      The best part of this kit is its hassle-free installation and OEM-like fitment. All stock mounting points - including sensor clips, dipstick brackets, and coolant hose connections - are retained. Not a single wiring harness or coolant line is left unsupported. The MAP sensor port is positioned in the exact same location as the stock manifold, with MAP sensor shield provisions.

      _x000D_

      Upgrade today and get the most out of your Power Stroke.

      _x000D_

      Note: For 6.7L High-Output applications, PPE Turbo Coolant Lines Relocation Kit (SKU 319010000, available separately) is required.

      _x000D_

      OEM P/N for reference: Ford LC3Z9424B
      Features:

      _x000D_
        _x000D_
      • Large 3.25-inch stainless steel tubing and hydroformed runners for increased airflow
        • _x000D_
      • Eliminate stock restrictive EGR inlet swirl
        • _x000D_
      • 69 percent higher maximum flow rate than the stock component
        • _x000D_
      • Handles higher boost pressures - consistent performance for any application
        • _x000D_
      • Redesigned stainless steel EGR pipe and gaskets
        • _x000D_
      • Fully round 4-inch stainless-steel turbo inlet
        • _x000D_
      • Fully round airbox duct made of 100 percent dry carbon fiber for unrestricted airflow and reduced weight
        • _x000D_
      • Removes the factory two-chamber plastic intake resonator
        • _x000D_
      • Lower manifold gaskets and EGR pipe gaskets included
        • _x000D_
      • 5-ply silicone couplers with oil resistant inner layer
        • _x000D_
      • OEM-like fitment, retains all stock mounting points
        • _x000D_
      • Compatible with regular-output and 500 hp high-output trucks
        • _x000D_
      _x000D_

      PPE 315054030

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Tech Specs

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My F-250

      • 6.7L V8 Power-Stroke - 20, 21, 22, 23, 24, 25, 26
