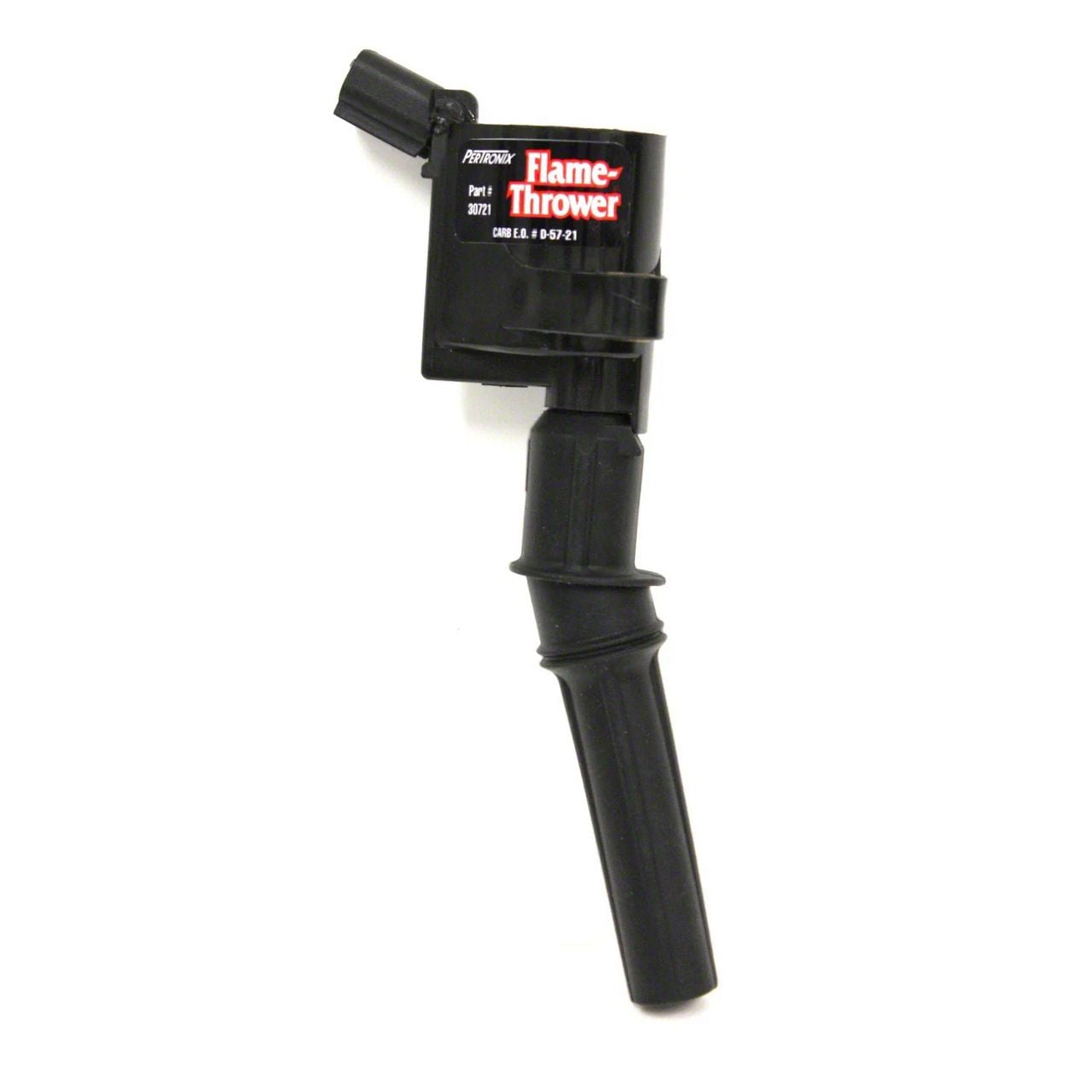

PerTronix Flame-Thrower Coil; Single (97-09 4.6L 2V F-150; 97-03 5.4L F-150)Find parts that fit my vehicle
Item T620975
Limited Time
Our Price
$40.37
Coupon
Military, Medical & First Responders
$2.02 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- 30,000 Volts Direct OEM Replacement _x000D_
- Optimized Coil Design Yields At Least 15% More Energy Available For The Spark Than The Most Common OEM Coils _x000D_
- Provides Spark Energy Throughout The RPM Range With No Energy Degradation Up To 11,000 Engine RPMs _x000D_
- Plated Copper Terminals For Added Current Conduction _x000D_
- Moisture Resistant Construction Ensures Long Life In Harsh Environments _x000D_
- High-Temp Boot Sustains Seal And Form _x000D_
- Epoxy Molded For Shock And Vibration Resistance _x000D_
- Maximum Voltage 30000 _x000D_
- Primary Resistance 0.56 Ohms _x000D_
- Voltage 12 _x000D_
- Coil Type Coil Pack _x000D_
- Finish Matte _x000D_
- Ignition Type Computer Controlled _x000D_
- Coil Shape Round _x000D_
- Mounting Position Factory _x000D_
- Mounting Bracket Included Integrated _x000D_
- Mounting Hardware Included No _x000D_
- Ballast Resistor Included No _x000D_
- Coil Wire Attachment Coil-on-Plug _x000D_
- Coil Wire Included No _x000D_
- Mount Type Factory _x000D_
- Requires External Resistor No _x000D_
- Coil Internal Construction Epoxy _x000D_
- Primary Inductance 1.5 _x000D_
- Secondary Resistance 5900 Ohms _x000D_
- Turns Ratio 70:1 _x000D_
- Grade Type Stock Replacement _x000D_
- Fits 97-09 4.6L 2V F-150; 97-03 5.4L F-150 _x000D_
Description
High Performance Coil. The PerTronix Flame-Thrower Coil; Single is designed to deliver enhanced spark energy for improved ignition efficiency. It serves as a direct replacement for OEM coils, boosting spark output by at least 15% to support better combustion and engine performance. This coil is ideal for upgrading ignition systems in compatible Ford vehicles, especially under demanding conditions.
_x000D__x000D_Construction and Appearance. This ignition coil features an epoxy-molded internal design for superior shock and vibration resistance along with moisture protection. Its high-temperature boot maintains a secure seal, and it comes in a matte finish with plated copper terminals for excellent current conduction and durability.
_x000D__x000D_Installation. Installation is straightforward as it fits factory mounting positions with an integrated bracket, requiring no drilling. It attaches directly to the coil-on-plug system without external resistors, ensuring an efficient upgrade process.
_x000D__x000D_Warranty. The coil includes a limited 90-day warranty covering defects in material and workmanship.
_x000D__x000D_Application. This coil fits Ford F-150 models equipped with 4.6L 2-valve engines from 1997 through 2009 and 5.4L engines from 1997 through 2003. No exclusions are noted for these applications.
PerTronix 30721
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
4.3
Reviews of PerTronix Ignition Products (4)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-150
- 4.6L V8 - 97, 98, 99, 00, 01, 02, 03, 04, 05, 06, 07, 08, 09
- 5.4L V8 - 97, 98, 99, 00, 01, 02, 03
- 5.4L V8 Supercharged - 99, 00, 01, 02, 03
