Installation Time
(approx) 1 Hour
Difficulty Level:
Simple installation for anyone.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Find for your Sierra 2500
Pacbrake PH+ PowerHalt Electronic Air Shut-off Valve Kit (11-16 6.6L Duramax Sierra 2500 HD)Find parts that fit my vehicle
Item HG30840
Our Price
$1,125.95 each
Military, Medical & First Responders
$56.30 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- _x000D_
- Diesel Engine Runaway Can Occur When The Engine Intakes Flammable Particles Like Gas, Oil Vapors, Or Grain Dust. _x000D_
- PH+ Electronic Emergency Engine Shutdown System Controls The Electronic Throttle Body In The Intake Manifold On Most Late Model Diesel Engines, Closing The Air Supply In Emergency Situations To Protect Life, Livelihood, And Vehicle. _x000D_
- Electronically Controlled Emergency Shutdown System Blocks Engine Air Intake To Force Engine Shut Down. _x000D_
- Automatic Shutdown Activates By Operating The Engine’s Electronic Throttle unit If Engine Speed Exceeds Pre-Set Threshold Or By Manual Override. _x000D_
- The Valve Returns Electronically To Open Position After Shutdown, With An Illuminated Switch Indicating Valve Closure To The Operator. _x000D_
- Reliable And Safe Emergency Shutdown For Diesel Engines With Electronic Throttle Bodies. _x000D_
- Automatic Shutdown Triggered By Overspeed Or Manually Via Toggle Switch; Valve Holds Closed For At Least 15 Seconds And Remains Closed Until Shut-Down Signal Is Removed. _x000D_
- Secondary Trip Speed Available For PTO Protection Or Anti-Theft Functions, With 5-Second Grace Period When Switching Speeds. _x000D_
- Includes In-Cab Toggle Switch For Manual Shutdown. _x000D_
- Auto Resets After Shutdown Once Signals Are Cleared. _x000D_
- Indicator Light Illuminates When Valve Is Closed To Show System Activation. _x000D_
- Valve Resets Electronically And Indicator Light Turns Off Upon Removal Of Shutdown Signal. _x000D_
- Kit Includes PH+ Power Guard Controller, Application-Specific Harness, Power/Switch Harness, Toggle Switch Assembly, Tie Straps, And Self-Tapping Screws. _x000D_
- Plug & Play Installation Using Factory Connectors And Pre-Built Wiring Harness. _x000D_
- Installation Time Is Approximately 60 Minutes Or Less. _x000D_
- Unit Can Be Easily Removed For Leased Trucks. _x000D_
- Fully Automatic Operation With Manual Override Option. _x000D_
- Multiple Built-In Shut-Off Speeds Are Easily Configured. _x000D_
- Will Not Trigger ECM Trouble Codes. _x000D_
- IP67 Rated For Water Ingress Protection. _x000D_
- Industry-Leading Two-Year Warranty. _x000D_
- Controller Operates At Battery Voltage, 12 VDC Nominal (9 – 14 VDC). _x000D_
- Seal Ratings Are IP67 And IP69K For Dust And Water Resistance. _x000D_
- Operational Ambient Temperature Range: -40°C To +85°C (-40°F To +185°F). _x000D_
- Vibration Resistance Rated At 8 Grms. _x000D_
- Valve Activation Duration Minimum: 15 Seconds. _x000D_
- Current Consumption At Idle: 17.5 mA @ 12 VDC. _x000D_
- Maximum Current During Valve Activation: 9.5 A @ 14 VDC. _x000D_
- PTO Input Signal For Secondary Activation: Connector B, Pin 3 Ground. _x000D_
- Installation Torque Range: 1.13 To 1.36 Nm (10 To 12 In-Lbf). _x000D_
- Compatible With 2011-2016 6.6L Duramax Engine In Sierra 2500 HD Models. _x000D_
Description
Description. Protect your life, livelihood and your vehicle with a PH+ Electronic Emergency Engine Shutdown system. Diesel engine runaway can happen whenever your engine sucks in flammable particles, such as gas and oil vapors in the air - or even grain dust. PH+ controls the electronic throttle body in the intake manifold found on most late model diesel engines and will close off the air supply in emergency situations.
Key Features and Benefits
- Automatic Emergency Engine Shutdown
- Plug and play install - factory connectors and pre-built wiring harness
- Can be installed in 60 minutes or less
- Will not set ECM trouble codes
- IP67 waterproof rating
- Auto resets after shutdown
- In-cab switch for manual shutdown included
- Secondary trip speed for Power Takeoff (PTO) applications
- Easily change between multiple built-in shut-off speeds
- Use for truck security by setting a low trip speed
- Have a leased truck? No worries! Unit can be easily removed
- Warranty: 24-months / 24,000 miles or 39,000 kms
Application. This Pacbrake PH+ PowerHalt Electronic Air Shut-off Valve Kit is designed to fit 2011-2016 6.6L Duramax GMC Sierra 2500 HD models.
Pacbrake C50359A
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box

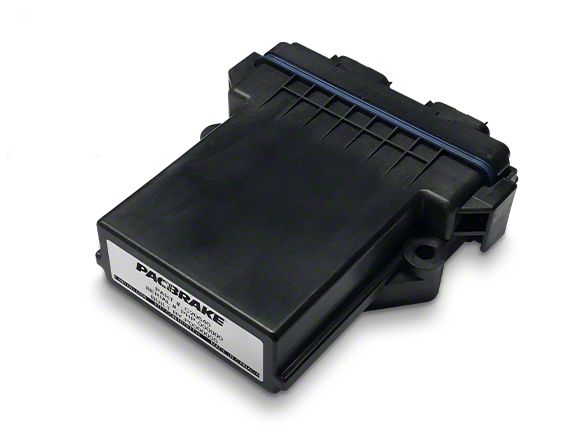

- PH+ PowerGuard Controller
- PowerHalt Power/Switch Harness
- PowerHalt Application Specific Harness
- Toggle Switch Assembly
- Tie Straps
- Self-Tapping Screws
- Switch Cover
- Switch Label
- Switch Decal
