Features & Details:
• More power at your fingertips with Custom KC x Gearhead tunes
• 6 Selectable Power Levels
• Custom KC Turbos gauge layout preloaded
• Compatible with Stock and Modified VGT turbos
• Supports injectors from stock size all the way up to 205/30
• Gain Up To 190 HP with supporting mods on stock injectors
• Gain Up To 290 HP with supporting mods on larger injectors
• Supports Custom Tuning and Wi-Fi updates
• Retains factory tune for quick return to stock

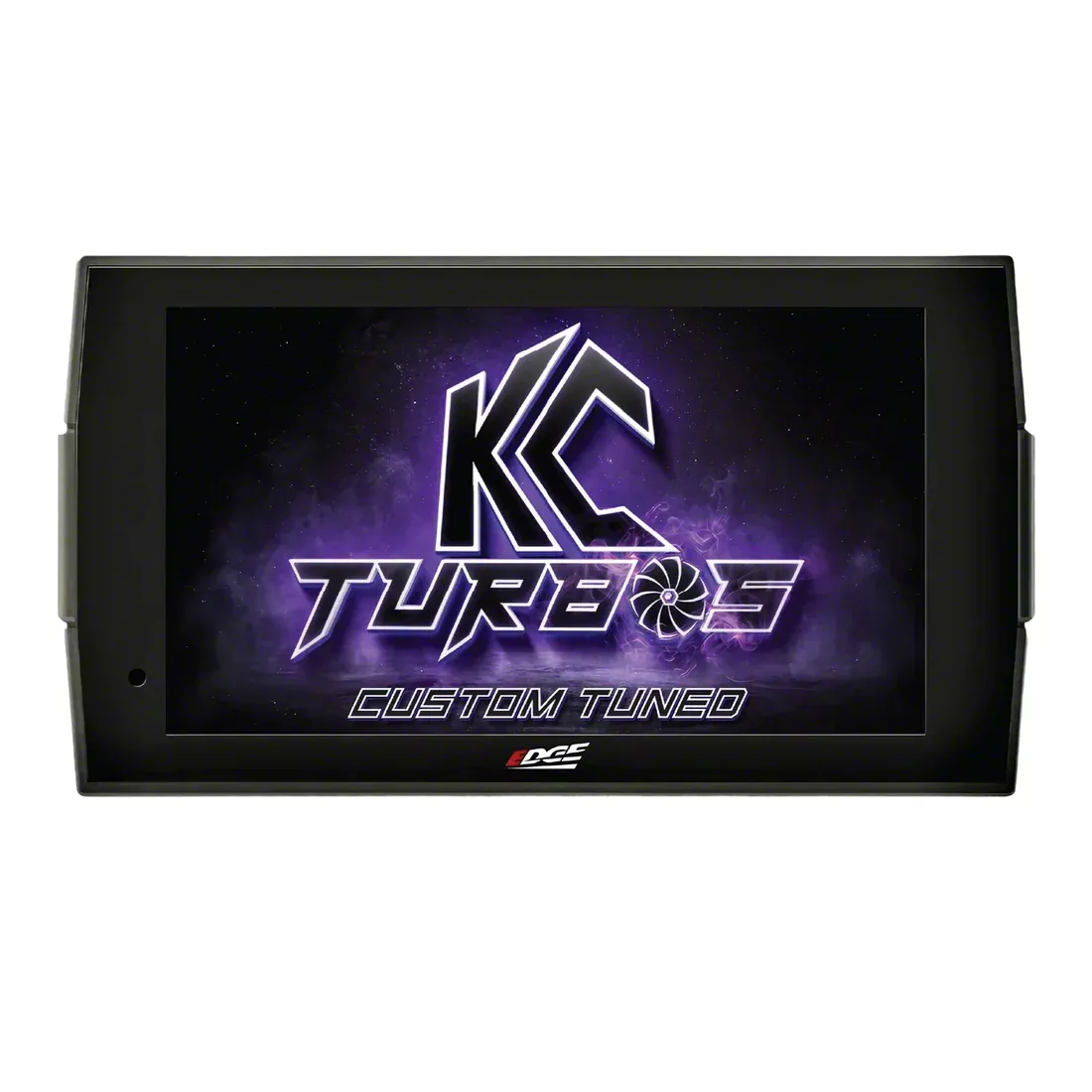

• #1 digital gauge monitor for daily drivers & performance enthusiasts
• 5” full-color capacitive touchscreen with auto-dimming & swipe control
• Advanced scan tool - read & clear DTCs with full descriptions
• Built-in data logging with export capability
• Expandable with optional EAS system or EGT Probe Kit
• 100% plug-and-play installation - no modifications required
• Includes windshield mount
• 49-State Legal Tuning
Description:
Unlock more power at your fingertips with Custom KC x Gearhead tunes available in six selectable power levels offering gains of up to 190HP with supporting mods. This powerful combo comes preloaded on the #1 digital gauge monitor for daily drivers and enthusiasts, featuring a custom KC Turbos gauge layout, advanced scan tool capabilities, and full support for both stock and modified VGT turbos. The 5” full-color touchscreen offers auto-dimming, swipe control, and a clean, intuitive interface.
It’s fully plug-and-play, no modifications required, and retains your factory tune for quick return to stock. With built-in data logging, Wi-Fi updates, support for custom tuning, and expandability via the optional EAS system or EGT Probe Kit, this setup offers unmatched performance, diagnostics, and control all 49-state legal.
If you have a check engine light, this device will not bypass the codes. You can read the codes, clear the codes, but it will still come back if the problem is not fixed. If you own a government vehicle, or live outside the US, and don't have emissions equipment then you can still run this device, but you will continue to have emissions codes.
Preloaded tunes support stock injectors, 155/stock, 175/stock, 190/stock, 155/30, 175/30, 190/30, and 205/30.
Custom files available upon request
Please restore / return vehicle to stock before updating or loading tune files
Stock Turbo Tunes
Level 1 - Tow Master: Tow file rated for 8000lbs without head studs or 14500lbs GVWR with head studs. EGTs should be monitored while towing. +70HP
Level 2 - Lite Street: Lite street tune designed for both street & light towing 4000lbs. EGTs should be monitored while towing. +120HP
Level 3 - Street: Awesome daily driver. This tune has butt kicking response, low smoke, and outrageous power. NOT suggested for any towing. +130HP
Level 4 - Hot Street: Spicy Street File and should only be used with head studs installed at this power level and above. HEAD STUDS REQUIRED! +140HP
Level 5 - Extreme: This file will extract every last ounce of power out of your truck with the stock turbo. HEAD STUDS REQUIRED! +150HP
Larger VGT Turbo Tunes
Level 1 - Tow Master: This tow file is rated for 8000lbs of towing without head studs or 14500lbs GVWR with head studs. EGTs should be monitored while towing. +90HP
Level 2 - Lite Street: This is a light street tune designed for both street & light towing 4000lbs. EGTs should be monitored while towing. +130HP
Level 3 - Street: Awesome daily driver. This tune has butt kicking response, low smoke, and outrageous power. NOT suggested for heavy towing. +140HP
Level 4 - Hot Street: Spicy Street File and should only be used with head studs installed at this power level and above. HEAD STUDS REQUIRED! +150HP
Level 5 - Extreme: This file will extract every last ounce of power out of your truck with the modified VGT turbo. HEAD STUDS REQUIRED! +160HP
Level 6 - Super Extreme: More power over standard extreme. This will extract every last ounce of power out of your truck with your larger modified VGT turbo. HEAD STUDS REQUIRED! +190HP
30% Injectors
These files are made for modified injectors with 30% nozzles. Including 155/30, 175/30, 190/30, 205/30
Level 1 - Tow Master: This 30% injector tow file is rated for 8000lbs of towing without head studs or 14500lbs GVWR with head studs. EGTs should be monitored while towing. +120HP
Level 2 - Lite Street: This is a 30% injector light street tune designed for both street & light towing 4000lbs. EGTs should be monitored while towing. HEAD STUDS REQUIRED! +175HP
Level 3 - Street: Awesome 30% injector daily driver. This tune has butt kicking response, low smoke, and outrageous power. NOT suggested for towing. HEAD STUDS REQUIRED! +205HP
Level 4 - Hot Street: Spicy 30% injector Street File and should only be used with head studs installed at this power level and above. HEAD STUDS REQUIRED! +225HP
Level 5 - Extreme: This 30% injector Extreme will push your truck upwards of +255HP . HEAD STUDS REQUIRED!
Level 6 - Super Extreme: More power over standard extreme. This will extract every last ounce of power out of your 30% injector with larger modified VGT turbo. HEAD STUDS REQUIRED! +290HP
Stock + Plus Injector
These files are made for modified injectors that retain stock nozzles.
Including 155/stock, 175/stock, 190/stock
Level 1 - Tow Master: This Stock + injector tow file is rated for 8000lbs of towing without head studs or 14500lbs GVWR with head studs. EGTs should be monitored while towing. +80HP
Level 2 - Lite Street: This is a Stock + injector light street tune designed for both street & light towing 4000lbs. EGTs should be monitored while towing. HEAD STUDS REQUIRED! +140HP
Level 3 - Street: Awesome Stock + injector daily driver. This tune has butt kicking response, low smoke, and outrageous power. NOT suggested for towing. HEAD STUDS REQUIRED! +160HP
Level 4 - Hot Street: Spicy Stock + injector Street File and should only be used with head studs installed at this power level and above. HEAD STUDS REQUIRED! +170HP
Level 5 - Extreme: This Stock + injector Extreme will push your truck upwards of +190HP . HEAD STUDS REQUIRED!
Level 6 - Super Extreme: More power over standard extreme. This will extract every last ounce of power out of your Stock + injector with larger modified VGT turbo. HEAD STUDS REQUIRED! +210HP
