Installation Time
(approx) 1 Hour
Difficulty Level:
Simple installation for anyone.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
KC HiLiTES 39-Inch Gravity Titan LED Light Bar; 6-Light (Universal; Some Adaptation May Be Required)
Item SD45681
Our Price
$2,199.99 each
Military, Medical & First Responders
$110.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Weight 32.4 Pounds _x000D_
- Total Candela 732,000 Cd _x000D_
- Wattage Per Light 39W _x000D_
- Total Wattage 237W _x000D_
- Amp Draw Per Light 3.29 Amps _x000D_
- Total Amp Draw 19.74 Amps _x000D_
- Voltage Range 9V To 36V _x000D_
- Lumens Per Light 2,972 Lm _x000D_
- Total Lumens 17,832 Lm _x000D_
- Lux Per Light 5,772 Lx Spot / 1,550 Lx Wide 40 _x000D_
- Total Lux 7,320 Lx _x000D_
- Candela Per Light 577,000 Cd Spot / 155,000 Cd Wide 40 _x000D_
- Light Temperature 5000 Kelvin _x000D_
- Lens Color Clear _x000D_
- LED Colors Amber And White _x000D_
- Beam Pattern Combo (Spot and Wide-40 Beams) _x000D_
- Beam Distance 856 Meters _x000D_
- Light Technology LED _x000D_
- Mount Location Bumper Or Overhead _x000D_
- Length 39 Inches _x000D_
- Material Aluminum Alloy _x000D_
- Included Components Light Bar, Light Covers, Wiring Harness, Hardware _x000D_
- Color Black _x000D_
- IP Rating IP68 _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
- Modular and customizable with patented Infinity Ring® system for expandable widths and curved or straight configurations _x000D_
- Featuring 3-Source LED Optics for short, mid, and long range illumination _x000D_
- Incorporates Gravity Reflective Diode Technology for precise beam control _x000D_
- Includes MoistureBlock® Technology and a pass-through front cooling system for durability and reliability under extreme conditions _x000D_
| Brand | KC HiLiTES |
| Light Bar Width | 30 to 39 Inch |
Description
Remarkable Lighting Solution. The KC HiLiTES 39-Inch Gravity Titan LED Light Bar; 6-Light delivers superior illumination for off-road and night-time driving. Designed to enhance visibility and safety, it offers dual power modes including Amber LED Dust Light and High-Power Mode, providing versatile lighting options. Its modular and customizable Infinity Ring® system allows for expandable widths and flexible curved or straight configurations, perfect for various needs.
_x000D__x000D_Construction and Appearance. Crafted from rugged aluminum alloy, this light bar features a durable black finish with a clear lens. It incorporates advanced 3-Source LED Optics and Gravity Reflective Diode Technology, delivering illumination across short, mid, and long ranges with precise beam control. The light bar also includes MoistureBlock® Technology and a pass-through front cooling system, ensuring durability and high performance under extreme conditions. The combo beam pattern combines Spot and Wide-40 Beams for enhanced coverage, producing up to 17,832 lumens and reaching distances up to 856 meters.
_x000D__x000D_Installation. Installation is moderately easy with no drilling typically required, using a plug-and-play wiring harness. Mounting can be accomplished at either the bumper or overhead locations, accommodating various vehicle setups without the need for external references or online guides.
_x000D__x000D_Warranty. This product includes a lifetime guarantee, ensuring long-term reliability and customer satisfaction.
_x000D__x000D_Application. Designed for universal fitment, though some minor adaptation may be necessary for specific vehicle configurations.
KC HiLiTES 91416
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box

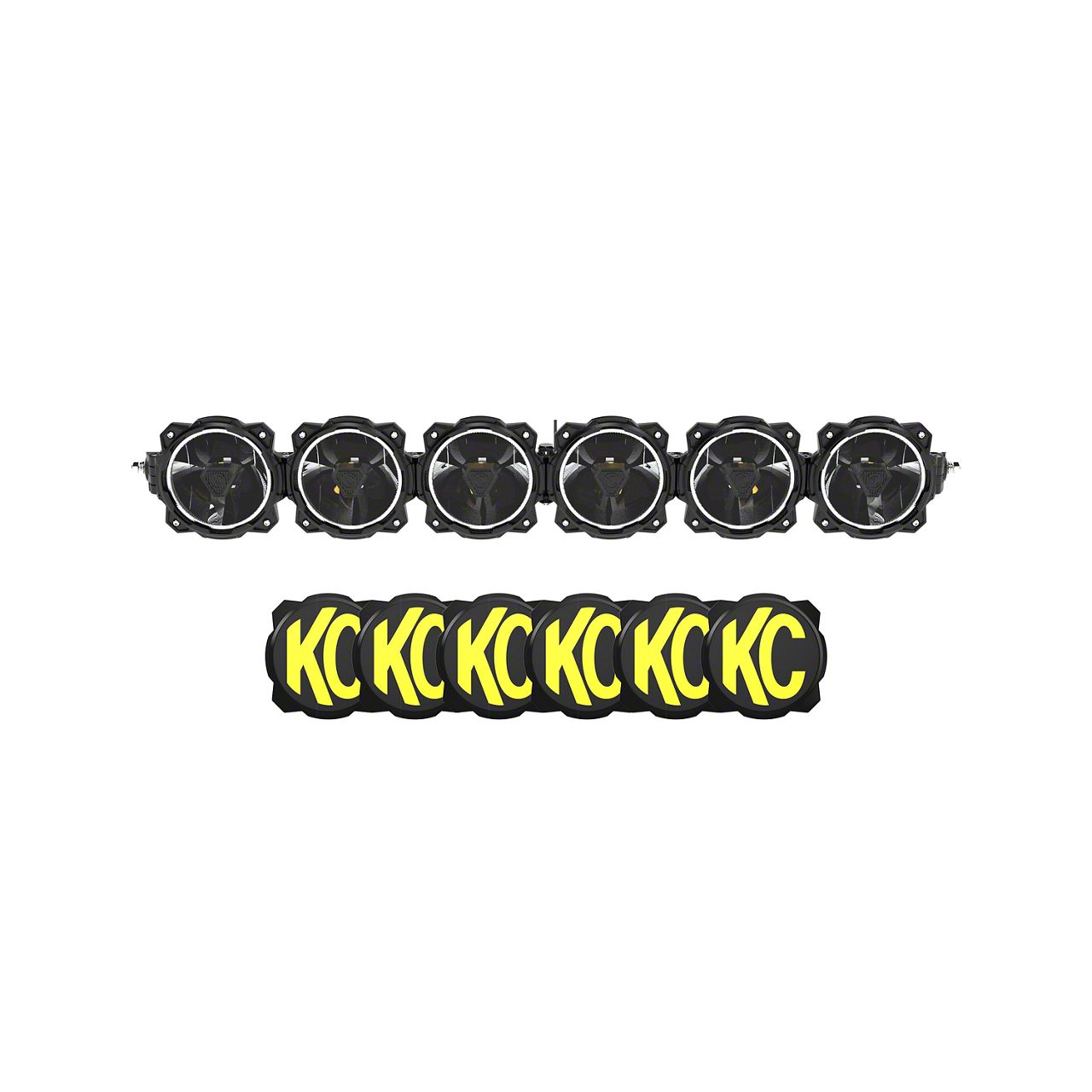

- (1) Gravity Titan LED Light Bar – 6-Light
- (6) Gravity 6-Inch Light Covers – Black with Yellow KC Logo
- (1) Plug-N-Play Wiring Harness with 3-Position Switch
- (1) Daisy-Chain Back Harness
- (1) Cover Removal Tool
- (6) R-Type Cable Clamps
- (6) M4-0.7x6mm Phillips Screws
4.8
Reviews of KC HiLiTES Lights Products (500+)
Questions & Answers
No questions about this product yet.
Ask the First Question
