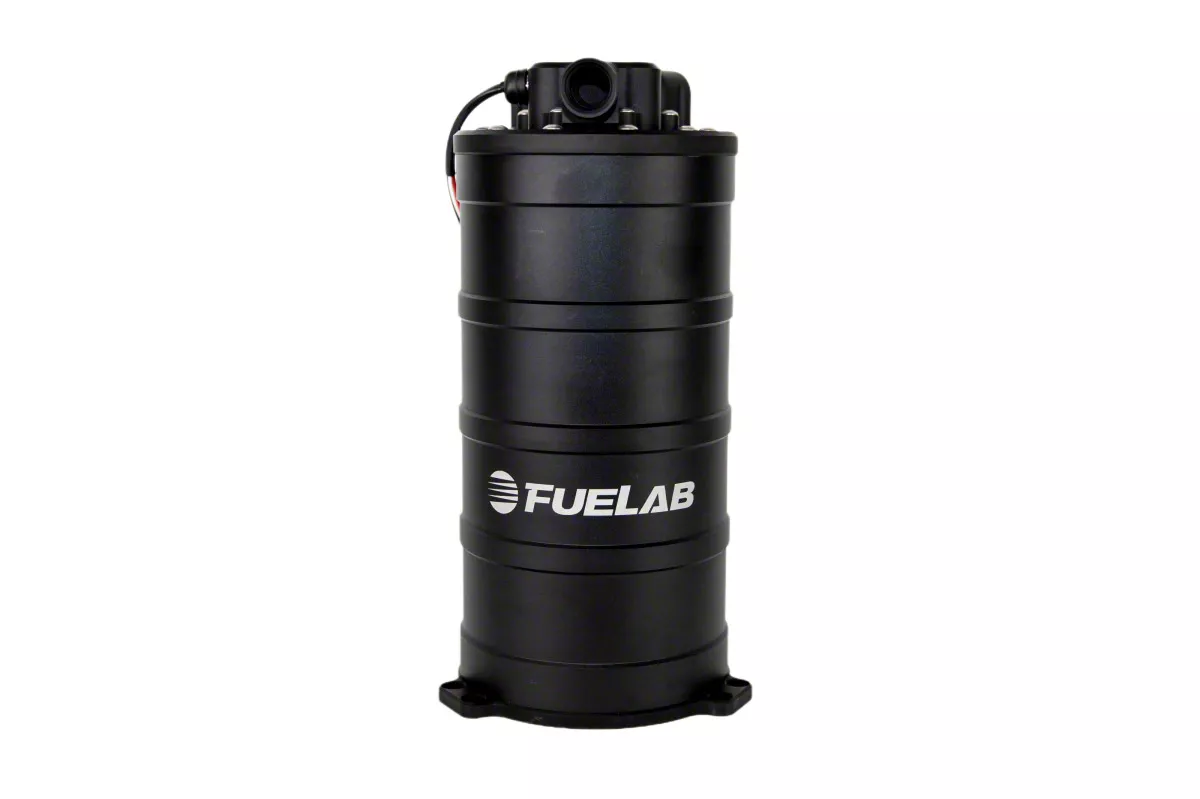

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 850 HP; 290mm Tall (Universal; Some Adaptation May Be Required)

Item SD73442
Product Image
1 Reviews of Fuelab
Our Price

$1,679.00

Military, Medical & First Responders $83.95 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • H/E Series 290mm Tall Fuel Surge Tank System 850 HP SAE Plate Mount Brushless Screw Pump
        • _x000D_
      • Limited Lifetime Warranty
        • _x000D_
      • 2.7L Fuel Surge Tank System With Speed Controllable, Twin Screw DC Brushless Fuel Pump
        • _x000D_
      • 400LPH Fuel Flow At 45PSI, 125PSI Maximum Pressure
        • _x000D_
      • Maintains Ready Volume Of Fuel To Prevent Fuel Sloshing
        • _x000D_
      • Constructed From Billet Aluminum With O-Ring Seals And -8AN Fuel Ports
        • _x000D_
      • Compatible With Pump Gasoline, Racing Gasoline, And E85 Fuel Types
        • _x000D_
      • Integrated Controller Featuring Pulse Width Modulation (PWM) Speed Control
        • _x000D_
      • PWM Compatible With Aftermarket ECUs Operating Between 100Hz And 5000Hz
        • _x000D_
      • Includes Single Twin Screw DC Brushless Fuel Pump
        • _x000D_
      • Requires Return Line To Send Excess Fuel Back To Vehicle Fuel Tank
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      Fuel Surge Tank System. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 850 HP; 290mm Tall is designed to provide consistent fuel delivery by maintaining a reserve volume that prevents fuel starvation during high-demand situations. This system is ideal for high-performance applications where fuel sloshing or low fuel levels in the OEM tank could compromise engine performance under dynamic conditions.

      _x000D__x000D_

      Construction and Appearance. This surge tank is crafted from billet aluminum with precision O-ring sealing to ensure durability and leak-free operation. It features a sleek, machined finish and utilizes -8AN fuel ports for secure, high-quality fuel line connections. The robust build is compatible with various fuels including pump gas, racing gas, and E85.

      _x000D__x000D_

      Installation. Installation requires moderate effort, integrating seamlessly with the existing fuel system while avoiding major modifications to the factory fuel tank or module. No drilling is generally necessary, but some adaptation may be needed depending on vehicle application.

      _x000D__x000D_

      Warranty. The product is backed by a limited lifetime warranty, ensuring long-term reliability and support.

      _x000D__x000D_

      Application. Designed to fit universally, the surge tank system may require some adaptation for specific installations depending on vehicle configuration.
