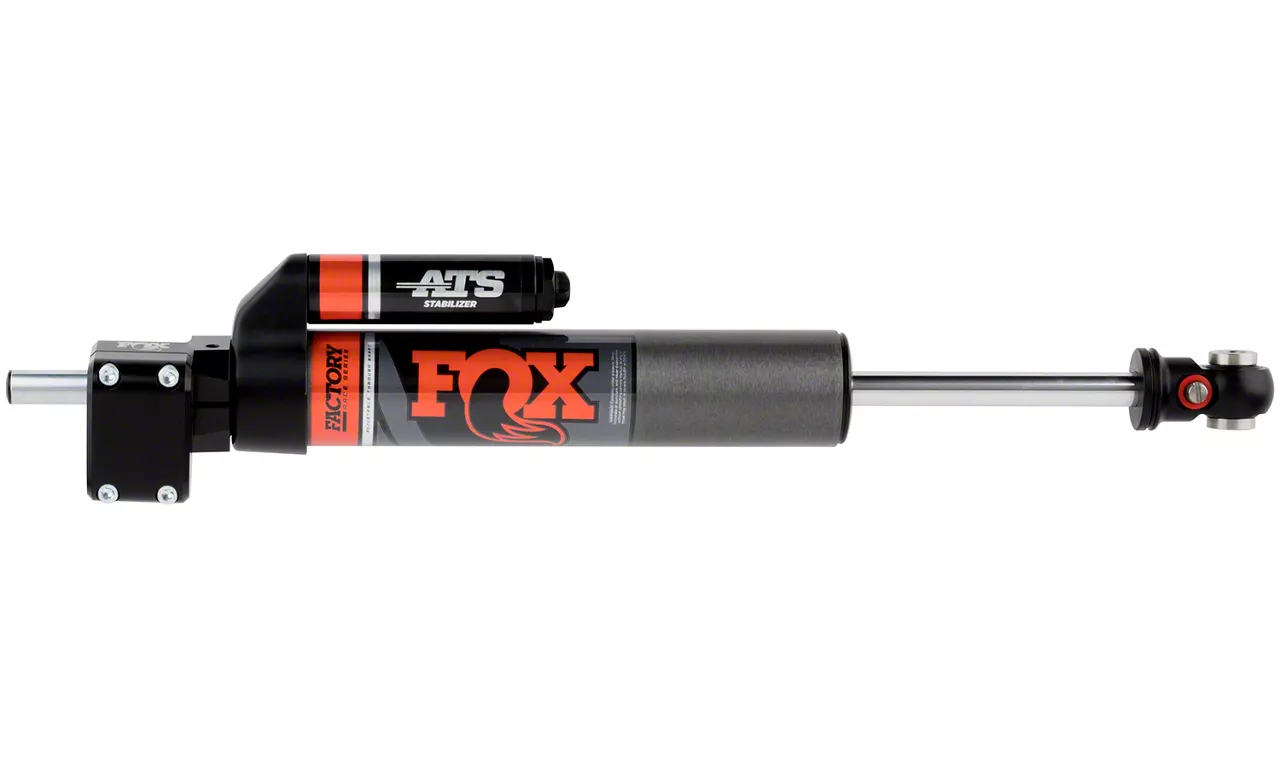

FOX F-250 Super Duty Factory Race Series 2.0 ATS Steering Stabilizer 983-02-143 (17-26 4WD F-250 Super Duty)

Product Information

Features, Description, Reviews, Q&A, Specs & Installation

Features

Utilizes Adjustable Through Shaft Architecture To Eliminate Shaft Fluid Displacement In Both Directions
External Piggyback Reservoir Provides Additional Fluid Capacity
Internal Floating Piston Separates Fluid From Nitrogen Gas Charge To Eliminate Cavitation
External Adjuster Offers 24 Clicks Of Adjustment For Fine Tuning Steering Feel
Delivers Highly Customizable And Consistent Damping Of Unwanted Steering Feedback

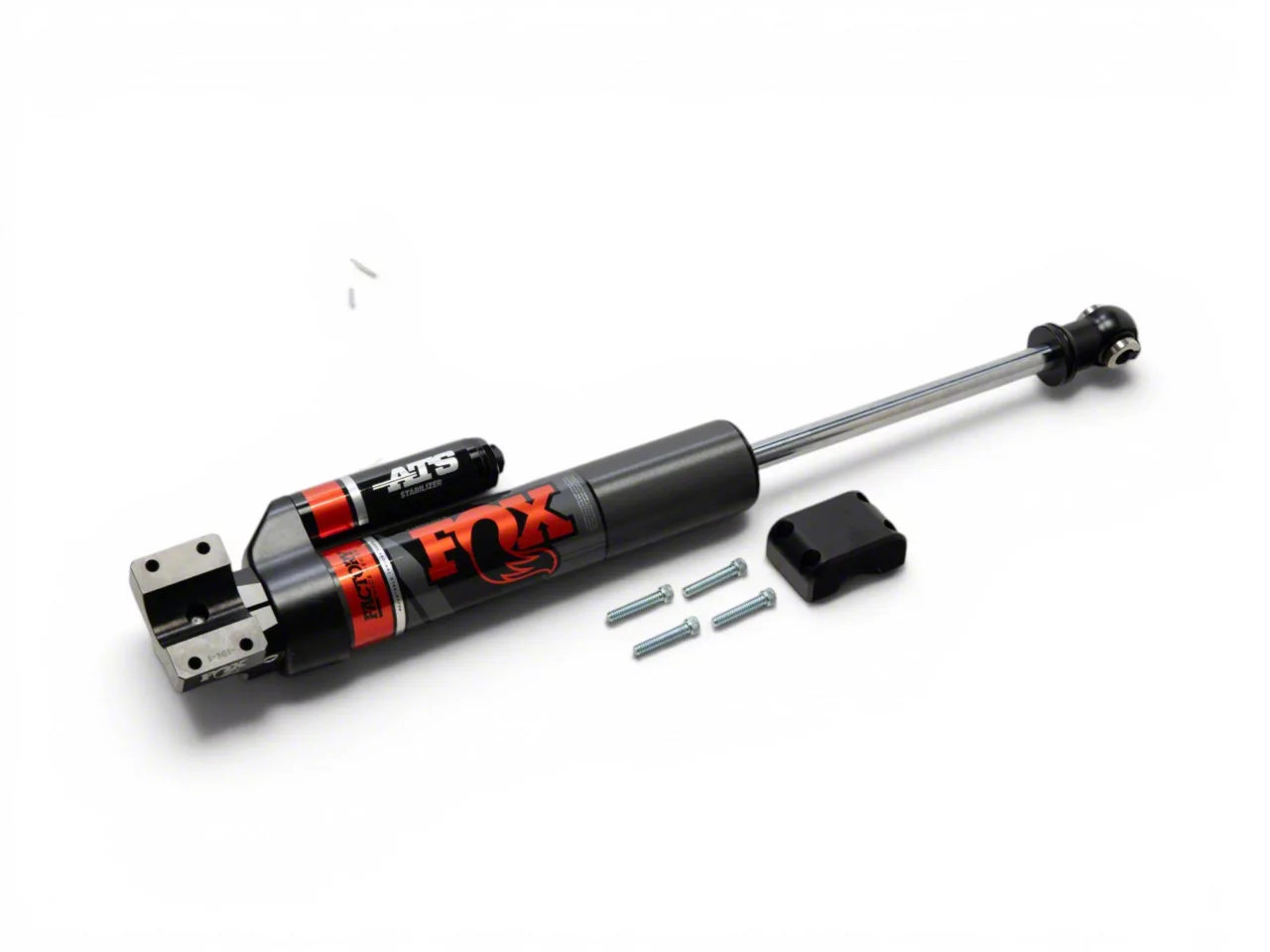

Single Bolt-On Stabilizer Design
Body Constructed From 2.0” Impact Extruded And CNC Machined 6061-T6 Aluminum With Hard Anodized Finish
Black-Anodized CNC Machined 6061-T6 Billet Aluminum Components
Shaft Made From 5/8" Hard Chrome Plated Heat-Treated Alloy Steel
Race-Developed High Flow Piston Design
Application Specific Valving Maximizes Performance
Redundant Sealing Pack System Includes Main Seal, Wiper Seal, And Scraper Seal
Extended Length: 22.19 Inches
Compressed Length: 14.09 Inches
Top Mount Is Tie Rod Clamp, Bottom Mount Is Eyelet
Requires Drop Bracket For Lift Heights Greater Than 1.5 Inches
Fits 2017-2026 4WD F-250 Super Duty

Description

Advanced Steering Control. The FOX Factory Race Series 2.0 ATS Steering Stabilizer is engineered to significantly reduce unwanted steering feedback and enhance driver control. Featuring innovative adjustable through shaft technology, it eliminates fluid displacement during steering movements for smooth, consistent damping. This stabilizer improves driving confidence and steering precision in demanding conditions.

Construction and Appearance. The stabilizer boasts a durable 2.0-inch impact extruded and CNC machined 6061-T6 aluminum body with a hard anodized finish for superior corrosion resistance. Black-anodized billet aluminum components and a 5/8" hard chrome plated heat-treated alloy steel shaft provide exceptional strength and a professional appearance suitable for both enthusiast and professional use.

Installation. The single bolt-on design ensures easy installation without drilling. A drop bracket is required for vehicles lifted over 1.5 inches to ensure proper fitment and optimal performance on lifted trucks.

Application. Designed to fit 2017 through 2026 4WD Ford F-250 Super Duty models, this stabilizer supports vehicles with lift heights up to and beyond 1.5 inches when used with the appropriate drop bracket.

FOX 983-02-143
