Overview

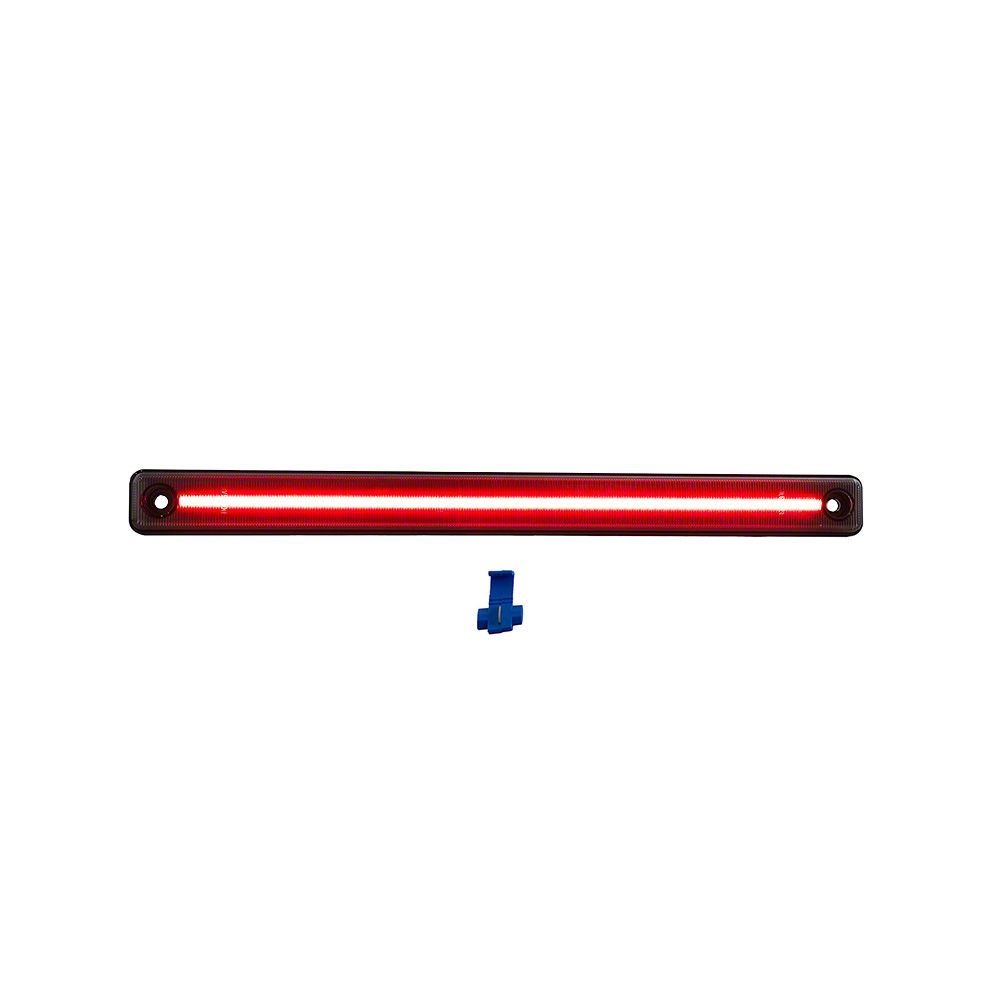

Ready to make your Super Duty stand out from the crowd? The LED Center Marker Light from Form Lighting does exactly that. Upgrading your center marker light is one of the easiest things you can do to give your Super Duty a custom, more modern look.

Upgraded Styling.

The smoked lens retains the stealth appearance of the factory unit, while adding a full strip of LEDs for a premium, custom look and a noticeably brighter running light.

Additional Brake Light.

This LED Center Marker Light also adds a brake light function. Each time you apply the brakes, the full strip of red LEDs illuminates, providing increased visibility to drivers behind you.

OEM-Grade Construction.

Form Lighting lamps are built with quality in mind, using OE-grade materials and design techniques. This includes durable UV-coated polycarbonate lenses, automotive-grade LED emitters, breather vents, and OEM plug-and-play connectors. They are assembled in an IATF 16949-certified facility, which is a quality management system designed for the automotive industry. While they may not be the cheapest option you’ll find, you can rest assured that these lights will provide durable and superior performance.

Simple Installation.

Our LED Center Marker Light uses factory mounting points, making installation simple and ensuring a perfect fit. The brake light function is easily enabled by tapping the factory brake light wire.

Two-Year Warranty.

All Form Lighting products are rigorously tested for reliability and backed by a two-year warranty. Any warranty or service needs are supported directly with fast US-based support, and any replacement parts, if needed, are shipped quickly from our US warehouse. In the rare occasion that you may need to utilize your warranty, we try to keep the process as simple as possible; for example, no return is normally necessary.

Fitment

NOTE: For SRW (Single Rear Wheel) models that were not equipped with a factory rear marker light, you can add this lamp by using the OE harness (PN: 8U2Z-14S411-AAC). To provide power to the harness, you will need to run an additional parking light and ground connection to the taillamp.

Application: Parking Light

Make: Ford

Model: F-250

Years: 17, 18, 19, 20, 21, 22, 23, 24, 25, 26

Specifications

• Measured Lumens: Parking: 12 lm, Brake: 25 lm
• Power (watts): Parking: 1.1, Brake: 2
• Current (amps @ 13.2V): Parking: 0.08, Brake: 0.14
• Operating Temperature: -40C to 85C (-40F to 185F)
• Connector(s): OEM-Size Plug and Play
• Materials: FR4 PCB, UV Coated Polycarbonate Lens
• Intrusion Ratings: IP67 Weatherproof
• Application: Parking Light
• Make: Ford
• Model: F-250
• Years: 17, 18, 19, 20, 21, 22, 23, 24, 25, 26
• Quantity: Single
• Warranty: 2 year warranty

Includes

What's Included
Quantity: Single

Installation

Installation Time: 30-60 minutes

Tools Needed: Basic Toolset

Modification: None
