Fabtech 6-Inch Basic Suspension Lift Kit with Shocks (14-18 2WD/4WD Sierra 1500 Double Cab, Crew Cab, Excluding Denali)
Item S501158
Sierra 1500 Sales Techs:
Connect Now
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Our Price
$2,168.05 - $2,242.33
FREE Shipping + $199.00 Oversized Item Fee Market Price $2,536.99 You Save 15% ($368.94) Up to 10% off for Military & First Responders! See DetailsWill this fit your Vehicle?
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- 6" Lift Kit
- Lower Control Arm Crossmembers
- Longer Steering Knuckles
- Relocated Front Differential with Heavy Duty Brackets
- ¼” Thick Steel Skid Plate
- Choice of Stealth or Performance Rear Shocks Absorbers
- Fits 2014-2018 GMC Sierra 2WD/4WD Crew and Double Cab, Excludes Denali
| Brand | Fabtech |
| Lift Height | 6.00 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Retains Stock Ride Comfort. The Fabtech 6" Basic Lift System accomplishes lift by means of the stock front coilover shocks and steel spacers. This helps retain the standard ride comfort of the front suspensions and gives the vehicle a nice lifted look.
Reliable Offroad Performance. The kit includes a ¼" thick steel skid plate, and installing it requires the relocation of the front differential using heavy duty brackets. Meanwhile, the lower control arm crossmembers are made with cross tubes that are backed up by tubular frame for extra strength. All of these make for a system that's meant to handle the extreme challenge of offroad driving.
Improves Your Driving Experience. Once the kit is installed, it upgrades the rear suspension using 5" tall blocks, U bolts, and performance shocks, allowing for increased dampening and a smoother ride. Meanwhile, extended steering knuckles provide a tighter turning radius. This will give you superior control over your vehicle, helping you get out of tight spots.
Two Versions Available. This Fabtech Kit is available in two versions. There is an option for Sierras equipped with an Aluminum Alloy or Stamped Steel Front Suspension. And there is an option for Sierra models equipped with a Cast Steel Front Suspension. Please be sure to choose your suspension from the options listed above.
Choice of Shocks. Fabtech Lift System is available with your choose of shocks. You can choose between Stealth Monotube Shocks or Performance Twin Tube Shocks. Please be sure to choose your preference from the options listed above.
Application. This Fabtech 6" Basic Lift System is designed for 2014-2018 2WD and 4WD GMC Sierra 1500 with a crew cab or an extended cab. It does not fit Denali Models with Magnetic Ride Control.
Please Note. Some vehicle may experience front driveline vibration while in 4WD. To correct that issue, you'll need Fabtech CV Driveshaft Kit, part# FTS21192.
Reliable Offroad Performance. The kit includes a ¼" thick steel skid plate, and installing it requires the relocation of the front differential using heavy duty brackets. Meanwhile, the lower control arm crossmembers are made with cross tubes that are backed up by tubular frame for extra strength. All of these make for a system that's meant to handle the extreme challenge of offroad driving.
Improves Your Driving Experience. Once the kit is installed, it upgrades the rear suspension using 5" tall blocks, U bolts, and performance shocks, allowing for increased dampening and a smoother ride. Meanwhile, extended steering knuckles provide a tighter turning radius. This will give you superior control over your vehicle, helping you get out of tight spots.
Two Versions Available. This Fabtech Kit is available in two versions. There is an option for Sierras equipped with an Aluminum Alloy or Stamped Steel Front Suspension. And there is an option for Sierra models equipped with a Cast Steel Front Suspension. Please be sure to choose your suspension from the options listed above.
Choice of Shocks. Fabtech Lift System is available with your choose of shocks. You can choose between Stealth Monotube Shocks or Performance Twin Tube Shocks. Please be sure to choose your preference from the options listed above.
Application. This Fabtech 6" Basic Lift System is designed for 2014-2018 2WD and 4WD GMC Sierra 1500 with a crew cab or an extended cab. It does not fit Denali Models with Magnetic Ride Control.
Please Note. Some vehicle may experience front driveline vibration while in 4WD. To correct that issue, you'll need Fabtech CV Driveshaft Kit, part# FTS21192.
Shop All 6 to 8 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
- 2014 GMC Sierra 1500
- 2015 GMC Sierra 1500
- 2016 GMC Sierra 1500
- 2017 GMC Sierra 1500
- 2018 GMC Sierra 1500
Fabtech K1067
K1068
K1067M
K1068M
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

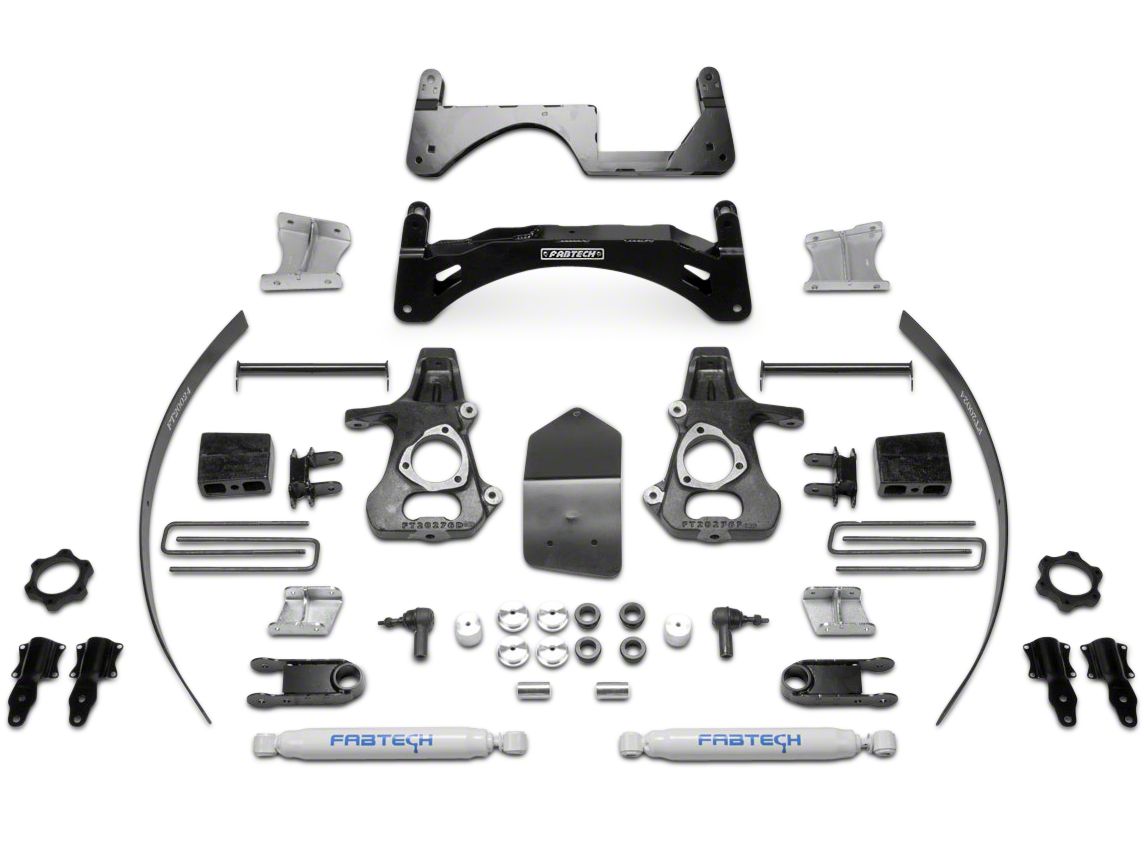

What's in the Box
- (1) Front Crossmember
- (1) Rear Crossmember
- (2) Crossmember Support Tube
- (1) Diff Skid Plate
- (1) Sway Bar Frame Bracket (Drv.)
- (1) Sway Bar Frame Bracket (Pass.)
- (1) Diff Bracket (Drv.)
- (1) Diff Bracket (Pass.)
- (1) Hdwr Sub-Assembly Kit
- (1) Hardware Kit
- (1) Component Box 2 – Aluminum, which includes:
- (4) U-Bolts
- (2) Blocks 5.0”
- (2) Rear Add-a-Leaf
- (2) Rear Bumpstop Spacers
- (2) C.V. Spacers
- (1) Drv. Spindle
- (1) Pass. Spindle
- (1) Hrdwr Sub-Assembly Kit
- (2) Shock Extensions
- (2) Shock Mount to Arm
- (4) Shock Brackets
- (1) Hdwr Sub-Assembly Kit
- (1) Hardware Kit
- (2) Rear Shocks
Tech Guides:
4.6
Customer Reviews (24)
Questions & Answers
10 More Questions
Will It Fit My Sierra 1500
- 4.3L V6 - 14, 15, 16, 17, 18
- 5.3L V8 - 14, 15, 16, 17, 18
- 6.2L V8 - 14, 15, 16, 17, 18
Does NOT fit on Denali Models equipped with Magnetic Ride Control. Some vehicle may experience front driveline vibration while in 4WD. To correct that issue, you'll need Fabtech CV Driveshaft Kit, part# FTS21192.
