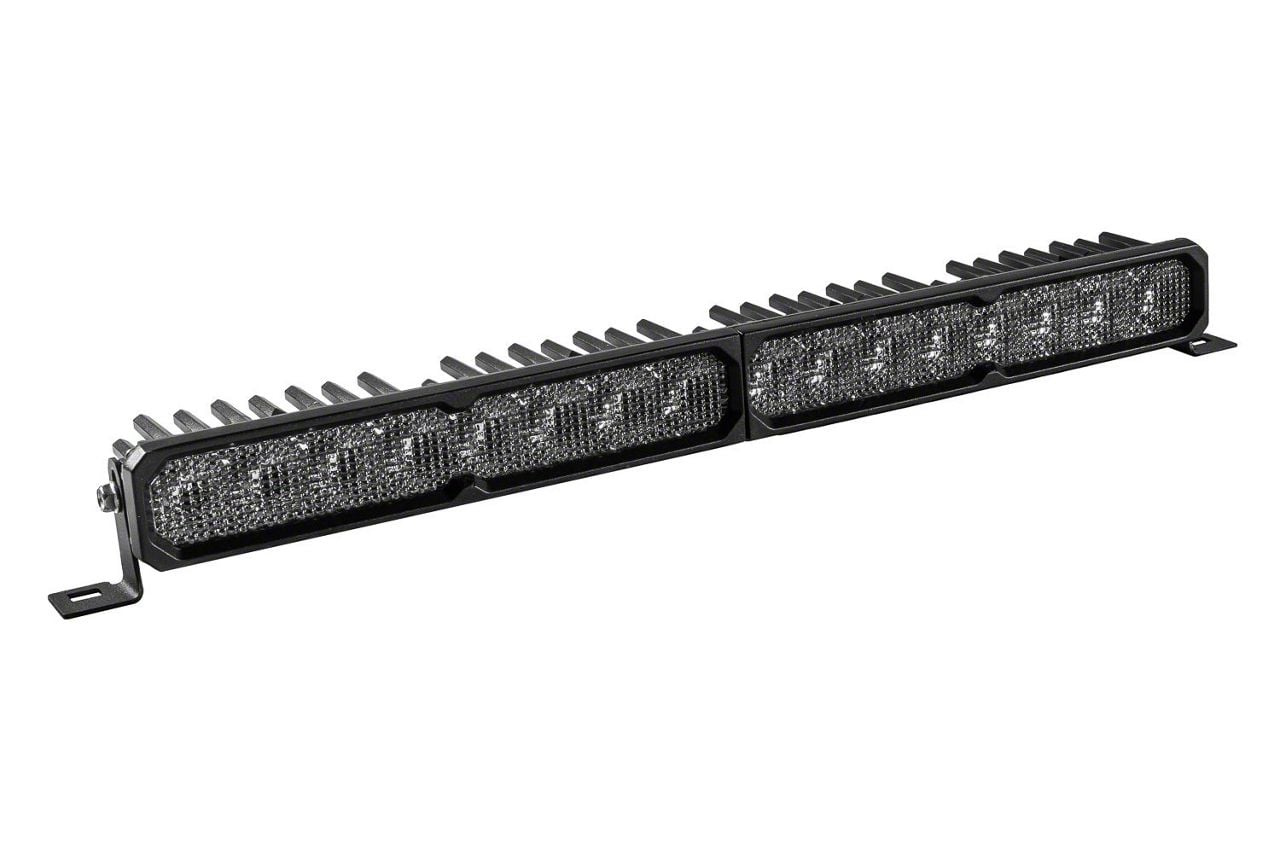

Diode Dynamics SS20 Sport Single Row LED Light Bar with SmartSelect Backlight; White Flood (Universal; Some Adaptation May Be Required)

Item SD81572
Our Price

$449.95

Military, Medical & First Responders $22.50 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Q&A

      Features & Specs

        _x000D_
      • Patented TIR Optics For Maximum Efficiency And Output
      • _x000D_
      • Upgraded Beam Patterns Engineered For Real-World Performance
      • _x000D_
      • Modern Welcome Sequence And Selectable Backlight With SmartSelect Technology
      • _x000D_
      • Available In Sport, Pro, And Max Power Levels
      • _x000D_
      • Durable Aluminum Housing With ASTM-Standard Powdercoat Finish
      • _x000D_
      • IP69K Waterproof Rating For Extreme Conditions
      • _x000D_
      • Limited Lifetime Warranty Included
      • _x000D_
      • Made In USA With Globally Sourced Materials
      • _x000D_
      • Snap-On Lens Covers Available For Protection And Customization
      • _x000D_
      • Swappable Optics And Colors For Versatility
      • _x000D_
      • Compatible With Mini CrossLink Technology For Custom Configurations
      • _x000D_
      • Passive Heatsink Cooling With Advanced Thermal Management
      • _x000D_
      • Operating Voltage Range Of 9 To 30V
      • _x000D_
      • Uses Automotive Grade Osram Ostar Projection Compact LEDs
      • _x000D_
      • Maximum Operating Temperature Up To 85C (185F)
      • _x000D_
      • Deutsch DT Input Connector For Secure Wiring
      • _x000D_
      • Includes One LED Light Bar, One Wire Pigtail, And Universal Bracket Set
      • _x000D_
      • Current Draw: Sport 5.98 Amps, Pro 8.2 Amps At 12.8V
      • _x000D_
      • Beam Angle Options Include Combo/Driving, SAE Driving, Flood, And Spot
      • _x000D_
      • Dimensions Approximately 2.01 x 20.24 x 2.37 Inches
      • _x000D_
      • Fits Universal; Some Adaptation May Be Required
      • _x000D_

      Description

      Precision Optics Technology. The Diode Dynamics SS20 Sport Single Row LED Light Bar with SmartSelect Backlight; White Flood is engineered to deliver exceptional lighting performance with patented Total Internal Reflection (TIR) optics that maximize light efficiency and output. Ideal for off-road, work, or auxiliary vehicle lighting, this light bar provides a broad and uniform flood beam pattern for effective wide-area illumination.

      _x000D__x000D_

      Construction and Appearance. This light bar features a durable aluminum housing finished with an ASTM-standard powdercoat for corrosion resistance and longevity. Its polycarbonate lens protects advanced Osram Ostar LEDs, while the fully encapsulated design provides an IP69K waterproof rating for reliable performance in harsh environments. The SmartSelect backlight offers selectable colors and a dynamic startup sequence, adding a premium and functional visual accent.

      _x000D__x000D_

      Installation. Installation is straightforward, requiring basic tools and no drilling in most cases. The kit includes universal brackets and a wire pigtail, allowing for versatile mounting and wiring options.

      _x000D__x000D_

      Warranty. This product carries a limited lifetime warranty, reflecting confidence in its durability and quality.

      _x000D__x000D_

      Application. Designed for universal fitment, this light bar may require some adaptation depending on vehicle and mounting preferences.

      Diode Dynamics DD8223

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Questions & Answers

      No questions about this product yet. Ask the First Question
