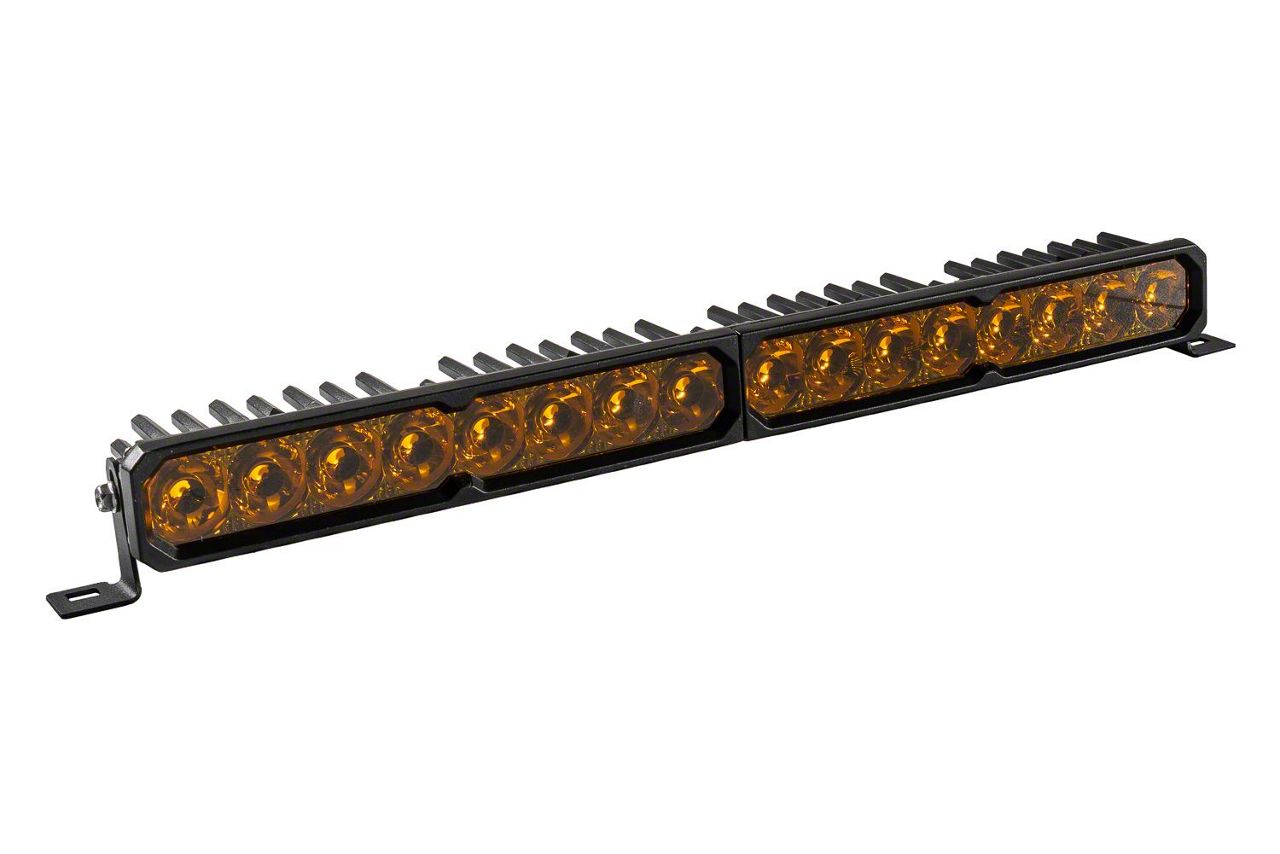

Diode Dynamics SS20 Sport Single Row LED Light Bar with Amber Backlight; Yellow Spot (Universal; Some Adaptation May Be Required)
Item SD81576
Our Price
$399.95
Military, Medical & First Responders
$20.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- _x000D_
- Patented TIR optics for maximum efficiency and focused light output _x000D_
- Upgraded beam patterns engineered for real-world off-road and on-road performance _x000D_
- True amber backlight provides unique accent lighting and improves visibility _x000D_
- Available in Sport (76.5 Watts) and Pro (105 Watts) power levels _x000D_
- Durable aluminum housing with ASTM-standard powdercoat finish for corrosion resistance _x000D_
- Built for extreme conditions with IP69K waterproof and high-pressure water rating _x000D_
- Limited lifetime warranty for long-term reliability _x000D_
- Made in the USA with global materials _x000D_
- Color temperature of 3000K for optimal visibility in fog, rain, and snow _x000D_
- Beam angle options: Combo/Driving 60°x30°, SAE Driving 20°x12°, Flood 100°x80°, and Spot 8°x8° _x000D_
- Operating voltage range from 9-30V _x000D_
- Current draw at 12.8V: Sport 5.98 Amps, Pro 8.20 Amps _x000D_
- Operating temperature range from -40°C to 85°C (-40°F to 185°F) _x000D_
- LED emitters include Osram Ostar projection compact and Lumileds automotive grade _x000D_
- Connector type: Deutsch DT input _x000D_
- Materials include aluminum PCB, copper PCB, polycarbonate lens, aluminum heatsink, and stainless steel brackets _x000D_
- Passive cooling via integrated heatsink _x000D_
- Product dimensions: 2.01 x 20.24 x 2.37 inches _x000D_
- Universal fit; some adaptation may be required _x000D_
| Brand | Diode Dynamics |
| Light Bar Width | 20 to 29 Inch |
Description
Advanced LED LIGHTING. The Diode Dynamics SS20 Sport Single Row LED Light Bar with Amber Backlight and Yellow Spot is engineered to deliver high-intensity yellow lighting optimized for visibility in inclement weather. This powerful light bar enhances off-road safety and performance by cutting through fog, rain, and snow while reducing glare. Designed for both enthusiasts and professionals, it provides clear long-distance illumination with precision.
_x000D__x000D_Construction and Appearance. Built with a durable aluminum housing featuring an ASTM-standard powdercoat finish, this light bar offers rugged durability and refined aesthetics. It incorporates premium materials including aluminum and copper PCBs, polycarbonate lenses, and corrosion-resistant stainless steel brackets. The amber backlight distinctively illuminates the TIR optic, providing a unique accent lighting effect.
_x000D__x000D_Installation. Installation requires basic tools and typically takes between 30 to 60 minutes. The universal fit design allows for a broad range of applications; however, some adaptation may be necessary to ensure proper mounting. No specialized drilling or modifications are typically needed.
_x000D__x000D_Warranty. This product is backed by a limited lifetime warranty, ensuring reliability and ongoing support.
_x000D__x000D_Application. Designed to fit universally; minor adaptations may be required depending on the vehicle.
