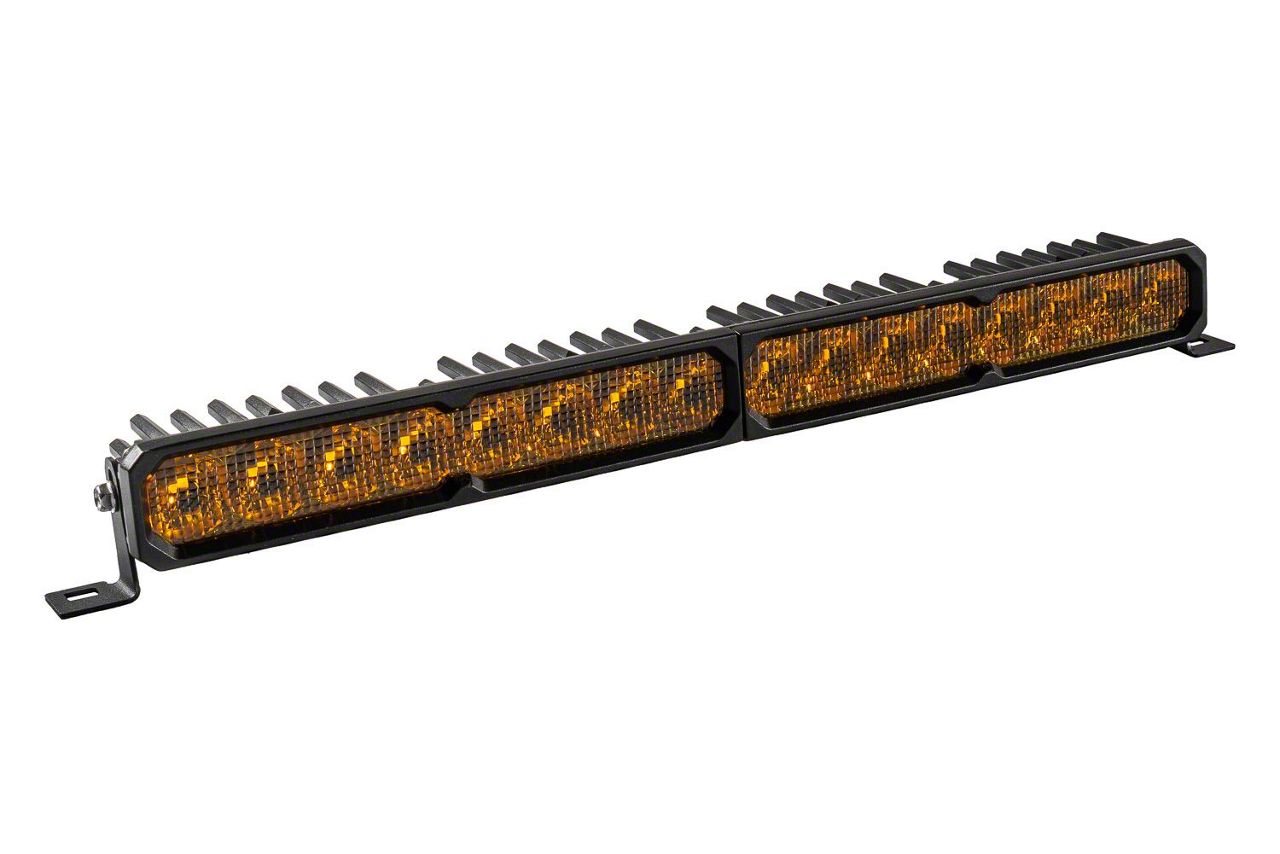

Diode Dynamics SS20 Pro Single Row LED Light Bar with Amber Backlight; Yellow Combo (Universal; Some Adaptation May Be Required)
Item SD81582
Our Price
$549.95
Military, Medical & First Responders
$27.50 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- _x000D_
- Patented TIR Optics For Maximum Efficiency And Output _x000D_
- Upgraded Beam Patterns Engineered For Real-World Performance _x000D_
- True Amber Backlight Provides Unique Accent Lighting _x000D_
- Available In Sport And Pro Power Levels _x000D_
- Durable Aluminum Housing With ASTM-Standard Powdercoat Finish _x000D_
- Built For The Extreme With IP69K Waterproof Rating _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Peak Beam Intensity Ranges From 128,000 To 336,000 Candela Depending On Optic And Power Level _x000D_
- Illuminance From 40 Lux To 3,360 Lux At 10 Meters _x000D_
- Raw Output From 7,376 To 25,088 Lumens _x000D_
- Output Color Is 3000K Yellow _x000D_
- Beam Angles Include Combo/Driving 60°x30°, SAE Driving 20°x12°, Flood 100°x80°, Spot 8°x8° _x000D_
- Power Usage: Sport Model 76.5 Watts, Pro Model 105 Watts _x000D_
- Operating Voltage 9-30V, Current: Sport 5.98A, Pro 8.20A @ 12.8V _x000D_
- Polarity Specific _x000D_
- Operating Temperature Range -40°C To 85°C (-40°F To 185°F) _x000D_
- LED Emitters Are Osram Ostar Projection Compact And Lumileds Automotive Grade _x000D_
- Deutsch DT Input Connector _x000D_
- Materials Include Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets _x000D_
- Passive Cooling Through Heatsink _x000D_
- IP69K Waterproof And High Pressure Protection _x000D_
- Product Dimensions: 2.01" X 20.24" X 2.37" _x000D_
- Includes One LED Light Bar, Wire Pigtail, And Universal Bracket Set _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Light Bar Width | 20 to 29 Inch |
Description
High-Performance Illumination. The Diode Dynamics SS20 Pro Single Row LED Light Bar with Amber Backlight; Yellow Combo delivers exceptional visibility with a patented TIR optic system designed for maximum efficiency and precise light output. It is ideal for off-road and extreme driving conditions, providing a broad yet focused yellow beam that improves visibility in fog, rain, and snow.
_x000D__x000D_Construction and Appearance. Constructed with a durable aluminum housing finished with an ASTM-standard powdercoat, this light bar incorporates high-quality automotive-grade LEDs and a polycarbonate lens. Its robust design includes stainless steel brackets and a fully encapsulated amber backlight, ensuring reliability and a unique accent lighting effect.
_x000D__x000D_Installation. Installation is straightforward, requiring only basic tools with an estimated time of 30 to 60 minutes. The design does not require drilling and utilizes universal mounting brackets for adaptability.
_x000D__x000D_Warranty. Backed by a limited lifetime warranty, this product guarantees long-term performance and quality assurance.
_x000D__x000D_Application. Fits universal applications, though some adaptation may be required for specific installations.
