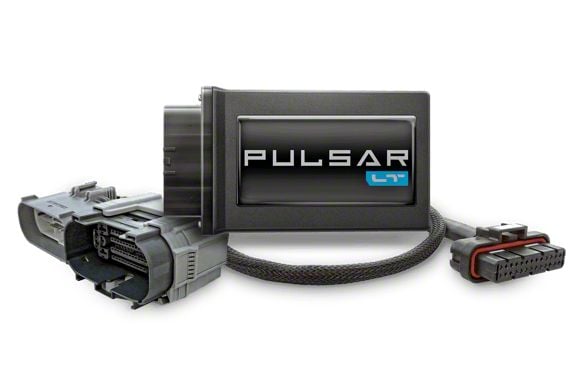

Edge Pulsar LT Inline Control Module (20-24 6.6L Duramax Sierra 2500 HD)

Item HG20521
Verify parts fit and get product recommendations.
Sierra 2500 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Our Price

$481.95 (each)

FREE Shipping Market Price $554.99 You Save 13% ($73.04) Up to 10% off for Military & First Responders! See Details

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features

      • Corrects Speedometer for Tire Size Changes
      • Corrects Speedometer for Rear Gear Ratio Changes
      • Adjust Throttle Response
      • Clears DTC Trouble Codes
      • Reprogram TPMS Threshold
      • Manual DPF Regeneration
      • Automatic Transmission Relearn
      • Adjust High Idle Control
      • Reset Speed Limiter
      • Straight Forward Plug and Play Installation
      • Internet Updateable - Requires Windows Computer
      • Fits 2020-2024 6.6L Duramax GMC Sierra 2500 HD Models

      Description

      Corrects Speedometer / Odometer. If you have installed a set of tires that are larger or smaller than original equipment tires, or if you have installed a ring and pinion gear set with a different rear gear ratio, Edge's Pulsar LT Inline Control Module allows you to correct your speedometer and odometer readings. The vehicle’s computer calculates your speed based on the diameter of the stock tires. If you’ve installed taller or shorter tires, or changed the rear gear ratio, the vehicle’s computer doesn’t know how fast your vehicle is actually going. As a result, the speedometer/odometer readings will not be accurate.

      Adjust Throttle Response. Edge Pulsar LT Inline Control Module allows you to adjust your trucks throttle response to fit your driving needs. All modern vehicles use a drive-by-wire system that controls the throttle body electronically, similar to a dimmer switch. With the Pulsar LT Inline Control Module installed you can reduce throttle responsiveness by 15% or increase its responsiveness by up to 65%.

      Manual DPF Regeneration. The Manual Regeneration feature of the Edge Pulsar LT Inline Control Module allows you to manually clear out the Diesel Particulate Filter (DPF). Completing a manual regeneration cycle will clear the soot mass in the filter, and lower exhaust back pressure to improve exhaust flow. The engine must be at operating temperature.

      Automatic Transmission Relearn. Most modern vehicles are equipped with an automatic transmission that will “learn” while you drive. Sometimes when these vehicles are programmed with an aggressive tune, the transmissions act differently. The Transmission Relearn feature of the Edge Pulsar LT Inline Control Module forces the transmission to relearn and accommodate the new tune. After the relearn commands are sent there might be some clunks, bumps, and/or short flares, especially during the shift from third to fourth gear. This is normal.

      High Idle Control. The Edge Pulsar LT Inline Control Module allows the engine to idle at adjustable RPM levels between 700 RPM to 1100 RPM.

      Speed Limiter. The Edge Pulsar LT Inline Control Module allows the speed limiter to be adjusted between 98 and 117 MPH.

      TPMS - Tire Pressure Monitor System. The Edge Pulsar LT Inline Control Module allows the TPMS inflation value to be adjusted between 40 and 99 (PSI).

      Clear Diagnostic Trouble Codes. The Edge Pulsar LT Inline Control Module can also be used to clear diagnostic trouble codes. Save yourself time and money by clearing your own Diagnostic Trouble Codes (DTCs) rather than paying a dealer to do the same. It's as easy as a few simple steps.

      Internet Updateable. The Edge Pulsar LT Inline Control Module can be updated over the internet via a Windows based computer. The Pulsar LT must be installed into a vehicle before updating. When updating, you CANNOT use your vehicles Wi-Fi. It will be disabled during the update process. Use an external source such as your home Wi-Fi. A USB to OBDII update cable is required to perform the update - sold separately.

      Application. This Edge Pulsar LT Inline Control Module is designed to fit 2020-2024 6.6L Duramax equipped GMC Sierra 2500 HD models.

      Fitment:

      • 2020 GMC Sierra 2500
      • 2021 GMC Sierra 2500
      • 2022 GMC Sierra 2500
      • 2023 GMC Sierra 2500
      • 2024 GMC Sierra 2500
      Details

      Edge 22411

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • Pulsar LT Module
      • Harness
      4.6

      Customer Reviews (9)

        Brand Image

        Reviews of Edge Tuner products have an average rating of 4.5 out of 5

          Questions & Answers

          10 More Questions

          Will It Fit My Sierra 2500

          • 6.6L V8 Duramax - 20, 21, 22, 23, 24
