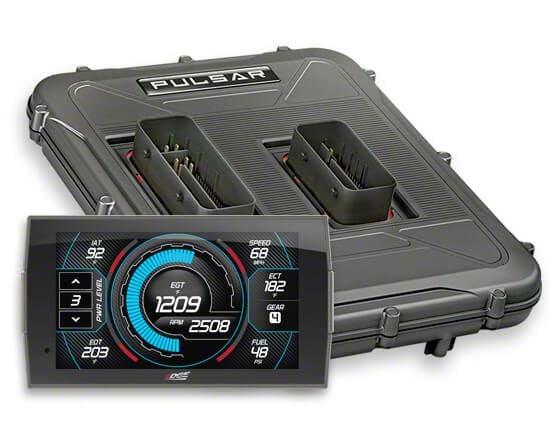

Edge Pulsar Inline Tuning Module and Insight CTS3 Monitor Combo (17-19 6.6L Duramax Sierra 2500 HD)
Item HG16251
Sierra 2500 Sales Techs:
Connect Now
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Our Price
$1,281.95 (kit)
FREE Shipping Market Price $1,474.99 You Save 13% ($193.04) Up to 10% off for Military & First Responders! See DetailsWill this fit your Vehicle?
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- Pulsar Inline Tuning Module and Insight CTS3 Monitor Combo
- Improves Horsepower, Torque and Overall Performance
- Includes 5 Performance Levels
- Adjust Parameters such as Tire Size, Gear Ratio, TPMS, and More
- Monitors Critical Systems
- Performance Tests, Alerts and Records
- Diagnostic Scan Tool - Reads and Clears DTC Trouble Codes
- Five Inch Capacitive Touch Screen
- Customize Gauge Layouts and Backgrounds
- Connects Directly to Factory PCM - No PCM Swap Required
- Fits 2017-2019 6.6L GMC Sierra 2500 HD Models
Description
Horsepower and Torque. Unlock the hidden power potential that your vehicle has to offer, with an Edge Pulsar Inline Tuning Module and Insight CTS3 Monitor Combo. The Pulsar is an in-line computer that connects directly to your vehicles PCM giving it the ability to control the vehicle's tuning to optimize performance gains. To make things even better, the Pulsar offers 5 performance levels that can be changed on-the-fly through steering wheel controls or through the included Insight CTS3 Monitor. After loading one of the Edge's Pre-Configured tunes, you will see a noticeable gain in horsepower, torque and performace.
Adjust Throttle Response. The Edge Pulsar Inline Tuning Module allows you to adjust your vehicles throttle response to fit your driving needs. All modern vehicles use a drive-by-wire system that controls the throttle body electronically, similar to a dimmer switch. With the Pulsar Inline Tuning Module installed you can reduce throttle responsiveness by 15% or increase its responsiveness by up to 65%.
Corrects Speedometer / Odometer. If you have installed a set of tires that are larger or smaller than original equipment tires, or if you have installed a ring and pinion gear set with a different gear ratio, Edge's Pulsar Inline Tuning Module allows you to correct your speedometer and odometer readings. The vehicle’s computer calculates your speed based on the diameter of the stock tires. If you’ve installed taller or shorter tires, or changed the rear gear ratio, the vehicle’s computer doesn’t know how fast your vehicle is actually going. As a result, the speedometer/odometer readings will not be accurate.
Insight CTS3 Monitor. The Edge Insight CTS3 Monitor allows you to read data directly from your OBD-II diagnostic port in real time to accurately monitor up to eight of your vehicles critical systems at the same time. The virtual gauges can be easily switched between US or Metric. With a full color, 5-inch, easy to read, capacitive touch screen with auto-dimming, the CTS3 features highly customizable gauges and backgrounds.
Data Logging. The robust data logging feature of the Insight CTS3 Gauge Monitor makes it easy to create an accurate, comprehensive picture of your vehicle's condition, allowing you to make in-depth evaluation of your engines performance. The Insight CTS3 Gauge Monitor can store hours of data in up to 10 unique logs straight from your vehicle's PCM/ECM.
Diagnostic Scan Tool. The Edge Insight CTS3 Monitor can also be used as a diagnostic scan tool code reader. Save yourself time and money by reading and clearing your own trouble codes rather than paying a dealer to do the same. Its as easy as a few simple steps.
Performance Testing, Alerts and Records. Performance and records 0-60 and quarter-mile times; quarter-mile MPH; peak engine temperature, RPM, speed and transmission temperature values. Sounds audible alerts when user-defined values are reached and automatically records the highest value of key parameters.
Internet Updateable. Both the Pulsar Inline Tuning Module and Insight CTS3 Monitor can quickly updated over the internet. It is recommended to update both to ensure you have the latest software updates and calibration files before installation. Free updates are available at www.edgeproducts.com/updates.
Vehicle Parameters (PIDs) - * Not all Vehicle Parameters available on all vehicles.
- ACC Pedal Position
- Barometric Pressure
- Battery Voltage
- Cylinder Head Temperature
- Engine Coolant Temperature
- Engine Load
- Intake Air Temperature
- Kck Sensor 1
- Kck Sensor 2
- Engine RPM
- Manifold ABS Pressure
- Mileage Coach
- Mileage Average
- Mileage Instant
- Run Time
- Spark Advance
- TCC Soleid Pressure
- Transmission Fluid Temperature
- Trip Odometer
- Turbo Boost
- Variable CAM
- Vehicle Speed
Application. The Edge Pulsar Inline Tuning Module and Insight CTS3 Monitor Combo is designed for use with 2017-2019 6.6L GMC Sierra 2500 HD models.
Fitment:
- 2017 GMC Sierra 2500
- 2018 GMC Sierra 2500
- 2019 GMC Sierra 2500
Edge 22600-3
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Pulsar Inline Tuning Module
- (1) Insight CTS3 Monitor
- Cables
- Dash Mount
4.5
Customer Reviews (2)
Reviews of Edge Tuner products have an average rating of 4.6 out of 5
Questions & Answers
10 More Questions
Will It Fit My Sierra 2500
- 6.6L V8 Duramax - 17, 18, 19
