Improve Power And Towing Performance.

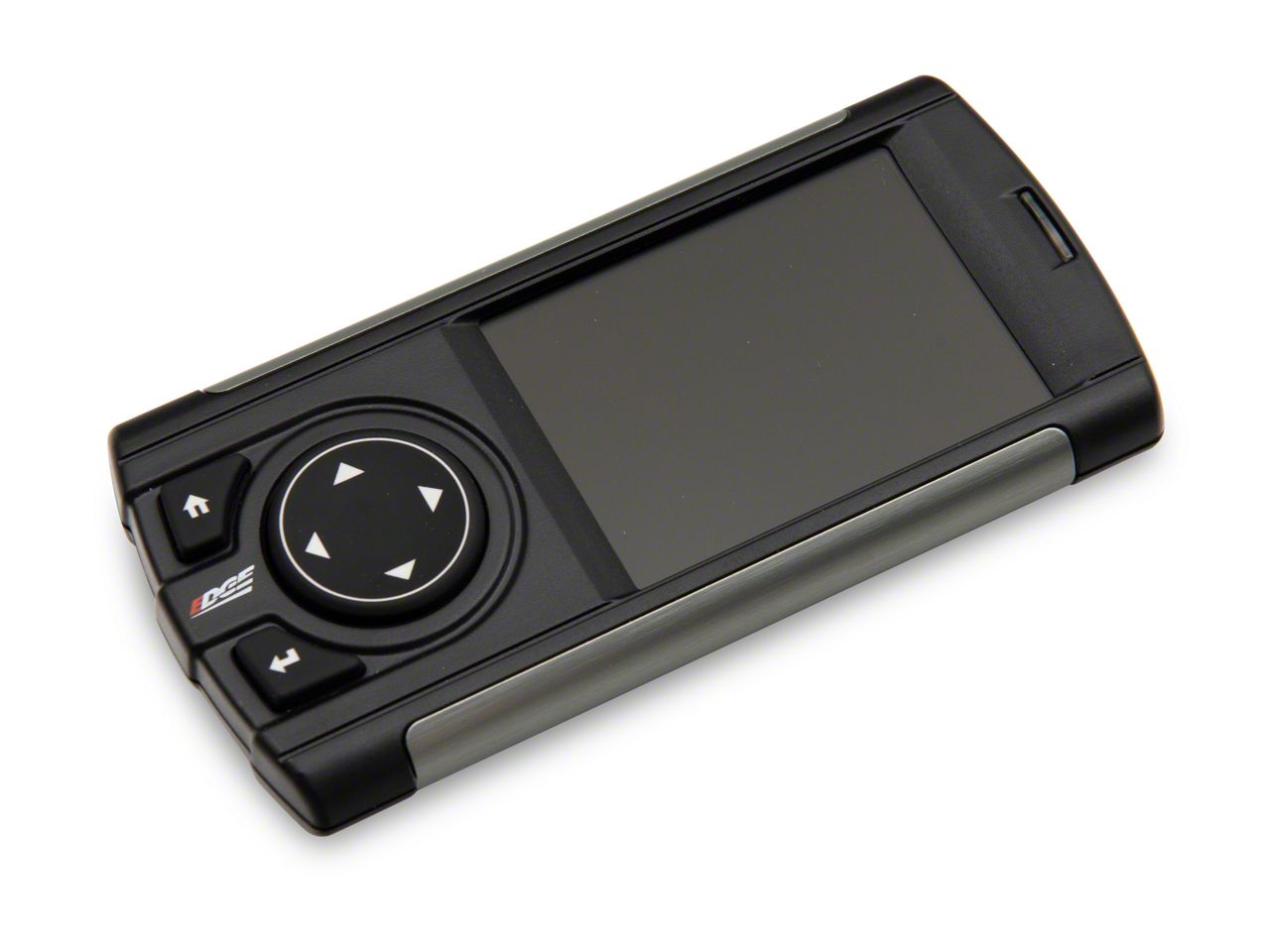

Unlock all the hidden power your 2.7L EcoBoost powered F-150 has to offer by replacing the conservative factory settings with a more aggressive calibration. From the factory, Ford programs their trucks to cater to the needs of the daily driver, not the performance enthusiast. But after loading a pre-configured Edge tune, even a bone stock, unmodified F-150 will see a noticeable gain in horsepower, torque, and towing performance. Edge Evolution CS2 Tuner includes pre-configured tunes for Performance, Towing and Fuel Economy. Monitor Critical Systems.
The Edge Evolution CS2 Tuner allows you to read data directly from your 2.7L EcoBoost F-150's OBD-II diagnostic port in real time to accurately monitor up to eight of your vehicles critical systems at the same time. The virtual gauges can be easily switched between US or Metric units of measure.Data Logging.
The robust data logging feature of the Evolution CS2 Tuner makes it easy to create an accurate, comprehensive picture of your truck's condition, allowing you to make in-depth evaluation of your engines performance. The Gas Evolution CS2 Tuner can store hours of data in up to 10 unique logs directly from your vehicle's PCM/ECM.Diagnostic Scan Tool.
The Edge Gas Evolution CS2 Tuner can also be used as a diagnostic scan tool code reader. Save yourself hundreds of dollars each year by reading and clearing your own trouble codes rather than paying a dealer to do the same. Its as easy as a few simple steps.Performance Testing, Alerts & Records.
Performance and records 0-60 and quarter-mile times; quarter-mile MPH; peak engine temperature, RPM, speed and transmission temperature values. Sounds audible alerts when user-defined values are reached and automatically records the highest value of key parameters.MyStyle™ Software.
The included MyStyle™ software allows you to choose from a variety of Edge custom backgrounds or to simply upload an image of your own choice. You can size, crop and save them directly to your Evolution device for the ultimate in customizability.Mileage Coach.
The Evolution CS2 Tuner includes Mileage Coach software that is designed with fuel economy in mind. It features tools to help drivers gauge, monitor, and conserve fuel consumption and increase MPGs. Includes Mileage Average, Mileage Instantaneous, Mileage Coach PIDs, Trip Monitor, MPG Calculator and Fuel Saving Driving Tips.Full Color Display.
Featuring a 2.4" full color high-resolution screen with a light sensitive power saving auto-dim sensor, the Edge Evolution CS2 Tuner can be easily viewed in any level of light.Expandable.
Compatible with optional Edge Accessory System (EAS) peripherals (sold separately), the Evolution CS2 Tuner easily allows users to connect multiple accessories. The Evolution CS2 Tuner is also compatible with optional EGT pyrometer sensors for additional engine monitoring.Internet Updateable.
The Evolution CS2 Tuner includes a USB cable to enable quick updates or upgrades over the internet. It is recommended to update your Insight to ensure you have the latest software updates and calibration files before installation. Free updates are available at www.edgeproducts.com/updates/
.Easy To Load; Easy To Restore.
When you load a tune on your F-150, the Evolution CS2 Tuner automatically stores your vehicle's factory settings. To return the vehicle to its factory settings, just plug the Tuner back in, select the option to restore the factory settings, and you're done.Edge Evolution CS2 Adjustable Parameters.
Not only can the Edge Evolution CS2 Tuner be used to Monitor, Data Log and reprogram your vehicle's PCM/ECM, but it can also be used to make corrections to a host of adjustable parameters including:
Vehicle Monitoring Parameters (PIDs)
- Speedometer Correction
- Tire Size: 28" - 40"
- Axle Gear Ratio: 3.15-3.73
- Shift Points
- Shift Firmness
- Speed and Rev Limiters
- Transmission Tuning
- Adjust Fan Settings
- Accel Pedal Position
- Barometric Pressure
- Battery Voltage
- Cylinder Head Temperature
- Engine Coolant Temperature
- Engine Load
- Engine RPM
- Engine Run Time
- Intake Air Temperature
- Kck Sensor 1
- Kck Sensor 2
- Mileage Coach
- MPG Instant
- MPG Average
- Spark Advance
- TCC Solenoid Pressure
- Transmission Fluid Temperature
- Trip Odometer
- Vehicle Speed
Best of all, this Edge Gas Evolution CS2 Tuner is 50-state smog legal under Carb EO# D-541-9 for the 2015-2016 model years.Application.
The Edge Gas Evolution CS2 Tuner is designed to be used on the 2015-2017 F-150s equipped with the 2.7L EcoBoost V6 engine.
