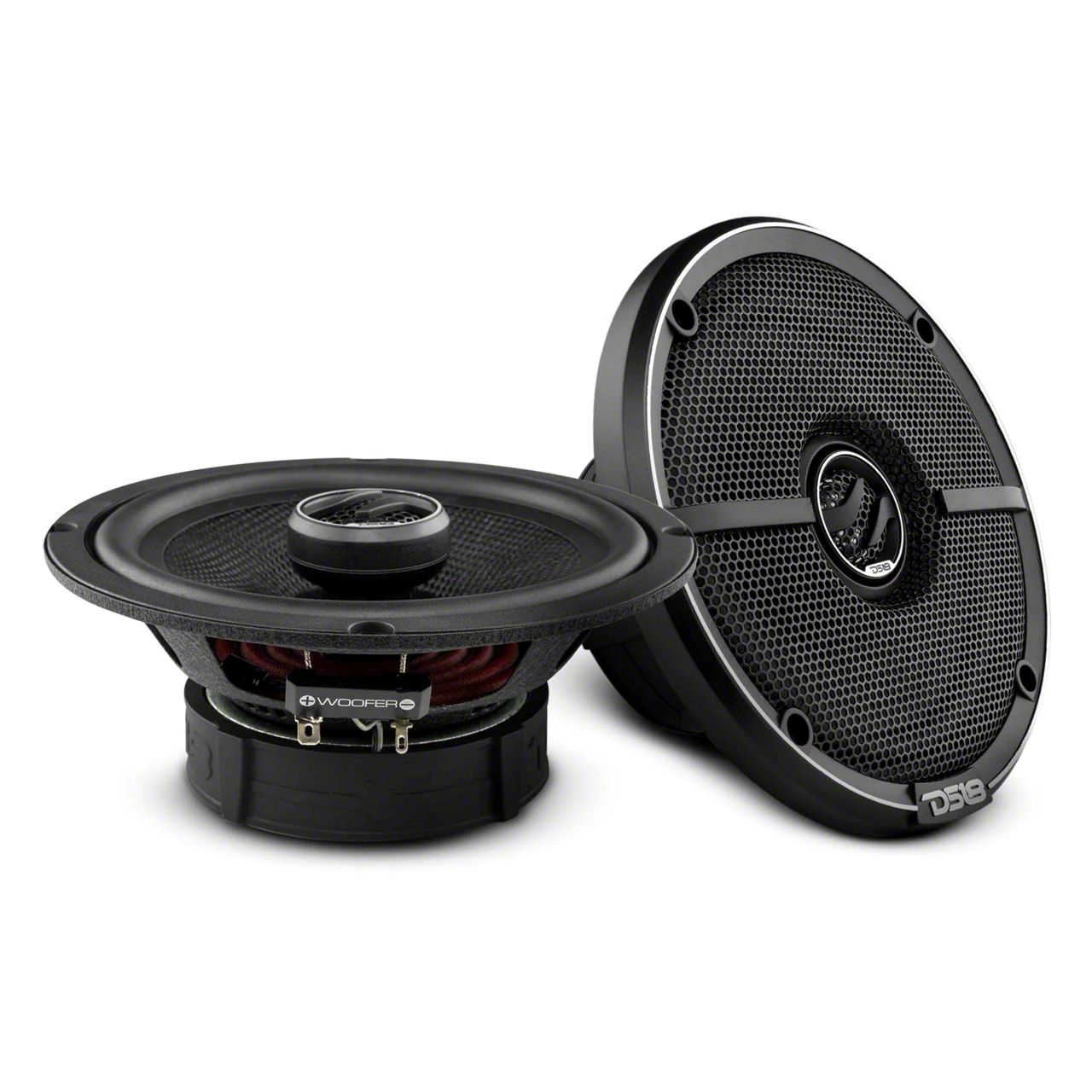

DS18 ZXI 6.50-Inch 2-Way Coaxial Speakers with Kevlar Cone; 240 Watts (Universal; Some Adaptation May Be Required)
Item SD28794
Our Price
$94.95 pair
Military, Medical & First Responders
$4.75 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- 6.5" 2-Way Coaxial
- Max Power Handling: 240 Watts
- RMS Power Handling: 80 Watts
- Impedance: 4 Ohm
- Barium Ferrite & Neodymium Magnets
- Pair Sensitivity: ~ 87 dB
- Nominal Diameter: 6.5 Inches
- Sensitivity: 89 dB
- Frequency Response: 40 Hz - 20 KHz
- Recommended High Pass: 60 Hz
- Speaker Type: 2-Way
- Voice Coil Diameter: 25.5 mm (1 Inch)
- Voice Coil Former Material: KSV
- Winding Material: EISV
- Cone Material: Glass Fiber
- Surround Material: Rubber
- Basket Material: Steel
- Magnet Material: Barium Ferrite
- Magnet Weight: 14.46 oz / 410 g
- Tweeter Nominal Diameter: 25.4 mm (1 Inch)
- Tweeter Voice Coil Diameter: 20.4 mm (0.8 Inch)
- Tweeter Voice Coil Former Material: KSV
- Tweeter Winding Material: EISVM
- Tweeter Diaphragm Material: PEI
- Tweeter Magnet Material: Neodymium
- Tweeter Magnet Weight: 8.5 g / 0.3 oz
- Thiele & Small Parameters Vas: 10.84 LTR
- Xmax: 2.7 mm
- Fs: 64 Hz
- Qms: 9.44
- Qes: 0.79
- Qts: 0.73
- Mms: 13.72 g
- Cms: 444 mm / N
- BL: 5.1
- Le: 228 mH
- Sd: 131 cm²
- Re: 3.5 ohm
- Mmd: 12 g
- Overall Diameter: 6.50 Inch (165 mm)
- Overall Depth: 72 mm (2.83 Inch)
- Front Mount Baffle Cutout: 141 mm (5.55 Inch)
- Mounting Depth: 60 mm (2.36 Inch)
- Motor Diameter: 94 mm (3.70 Inch)
- Product Weight: 5.5 Lbs
- Product Dimensions: 15.75 X 7.75 X 3.75 inches
- Master Carton Weight: 35 Lbs
- Master Carton Dimensions: 16.5 X 16.75 X 12.25 inches
- Master Carton Quantity: 6
- Sold In Pair
- Fits Universal; Some Adaptation May Be Required
Description
Premium Coaxial Speakers. The DS18 ZXI 6.50-Inch 2-Way Coaxial Speakers with Kevlar Cone; 240 Watts provide high-quality audio performance for automotive sound systems. Designed to deliver clear and powerful sound, these speakers serve as excellent replacements or upgrades for factory-installed car speakers. They are ideal for enthusiasts seeking enhanced sound clarity and a broader frequency response in their vehicle audio setup.
Construction and Appearance. These speakers feature a Kevlar cone woofer known for its durability and strength-to-weight ratio, combined with a rubber surround to minimize vibrations. The midrange includes a glass fiber cone and steel basket, while the tweeter employs a PEI diaphragm with a lightweight neodymium magnet. The materials and build quality contribute to precise sound reproduction and robust performance.
Installation. Installation is straightforward, generally fitting existing speaker cutouts with potential minor adaptation. No extensive modifications or drilling are typically necessary.
Warranty. These speakers come with a two-year warranty, ensuring reliability and customer satisfaction.
Application. Suitable for universal applications; some adaptation may be required depending on the vehicle make and model.
DS18 ZXI-654
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (2) Coaxial Speakers
- Mounting Hardware
- Instruction Manual
