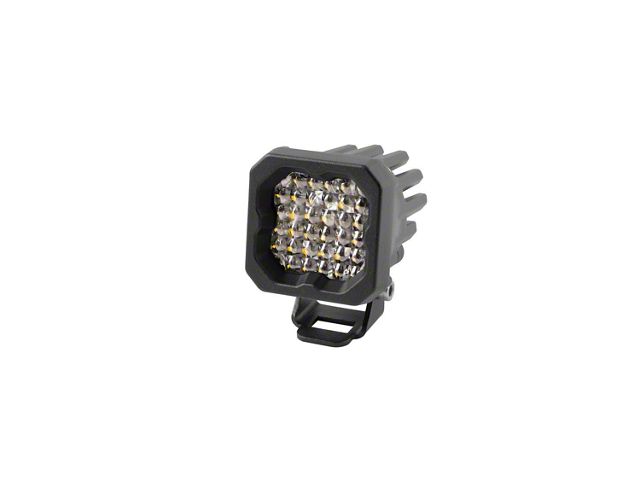

Diode Dynamics Stage Series C1R Standard LED Pod Light; White Flood (Universal; Some Adaptation May Be Required)

Item SD26431
Product Image
32 Reviews of Diode Dynamics
Our Price

$159.95

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Ultra-Compact, Single-LED Form Factor
        • _x000D_
      • Triple Function: High-Power White Main Beam, High-Power Red Main Beam, And Low-Power Red Accent Light
        • _x000D_
      • Pin-Fin Heatsink Design For Superior Thermal Dissipation
        • _x000D_
      • Integrated Deutsch-Style Connector
        • _x000D_
      • Designed, Torture-Tested, And Assembled In USA
        • _x000D_
      • Custom-Engineered TIR Optics Combine With A Single High-Power LED Chip
        • _x000D_
      • Provides Three Different Lighting Functions In One Compact Package
        • _x000D_
      • High-Power White And Red Main Beams Plus Low-Power Red Accent Light Can Be Activated Independently
        • _x000D_
      • Ideal For Use As Reverse Light, Fourth Brake Light, And Secondary Running Light
        • _x000D_
      • Optics Reduce Glare And Improve Light Efficiency Compared To Traditional Reflectors
        • _x000D_
      • Flood Pattern With True 50x50 Degree Spread For Uniform Illumination
        • _x000D_
      • Mount Anywhere On Vehicles Including Cars, Trucks, Motorcycles, And UTVs
        • _x000D_
      • Standard, Flush-Mount, Or GoPro-Style Mounting Options Available
        • _x000D_
      • Interchangeable Lenses For Changing Beam Pattern Or Color
        • _x000D_
      • 4-Pin 6-Inch Pigtail With Bare Leads Using Color-Coded Wires For Simple Wiring
        • _x000D_
      • Extensively Tested From -40°F To 185°F Along With Vibration, Moisture, And Corrosion Testing To SAE Standards
        • _x000D_
      • Snap-On Covers Available For Protection Against Dirt And Debris
        • _x000D_
      • Lifetime Limited Warranty Included
        • _x000D_
      • Raw Lumens: 1450 Lm
        • _x000D_
      • Color Temperature: 6000K
        • _x000D_
      • Power: 15 Watts
        • _x000D_
      • Operating Voltage: 9-16V
        • _x000D_
      • Polarity Specific
        • _x000D_
      • Materials Include Polycarbonate Lens, Aluminum Casting, And Rubber Gasket
        • _x000D_
      • Passive Cooling Via Pin-Fin Heatsink
        • _x000D_
      • IP69K Waterproof Rating
        • _x000D_
      • Weight: 0.4 Lbs Shipped
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      Advanced LED Lighting. The Diode Dynamics Stage Series C1R Standard LED Pod Light; White Flood delivers powerful and versatile illumination tailored for a wide range of automotive and off-road applications. This ultra-compact pod combines multiple lighting functions into a single unit, improving visibility and safety with precision-engineered TIR optics that provide a uniform 50x50 degree flood beam pattern for backup, brake, and running light needs.

      _x000D__x000D_

      Construction and Appearance. Constructed with durable polycarbonate lenses and a rugged aluminum casting, this LED pod features a matte finish and a pin-fin heatsink for efficient thermal dissipation. Its design includes an integrated Deutsch-style connector and rubber gasket to ensure weather resistance and longevity, tested to withstand harsh environmental conditions up to the IP69K waterproof standard.

      _x000D__x000D_

      Installation. Installation requires basic hand tools and typically takes approximately 30 to 60 minutes. The compact size allows flexible mounting options without the need for significant drilling or modifications in most installations.

      _x000D__x000D_

      Warranty. This product comes with a limited lifetime warranty for peace of mind and guaranteed quality.

      _x000D__x000D_

      Application. Designed for universal fitment, this LED pod can be adapted to a variety of vehicles including cars, trucks, motorcycles, and UTVs, accommodating different mounting configurations to suit user preferences and installation constraints.

      Diode Dynamics DD7423S
