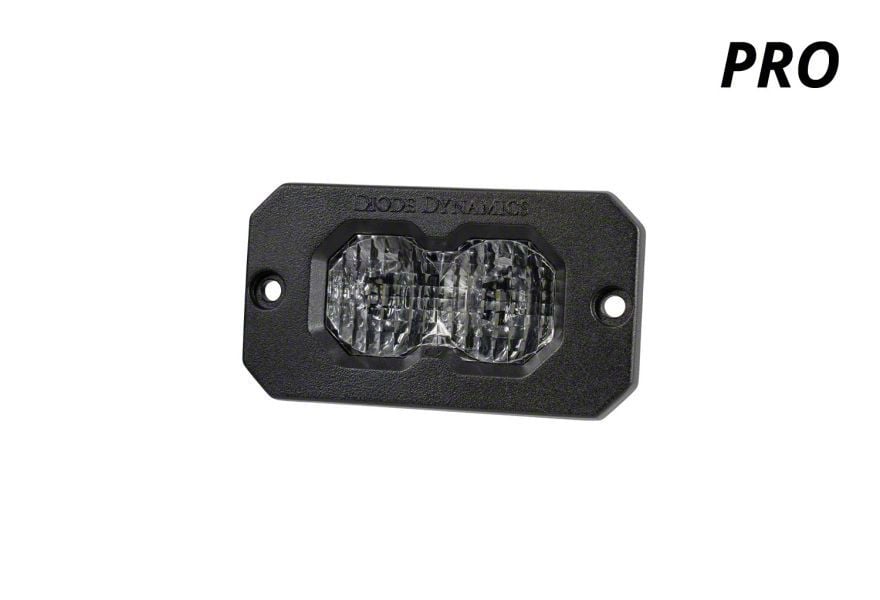

Diode Dynamics Stage Series C2 2.0 Pro Flush Mount LED Pod Light with Red Backlight; White Flood (Universal; Some Adaptation May Be Required)
Item SD77327
Our Price
$169.95
Military, Medical & First Responders
$8.50 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design For Tight Mounting Spots _x000D_
- Patented TIR Optics For Maximum Output _x000D_
- Up To 95% More Power Than C2 1.0 _x000D_
- Available In Sport, Pro, And New 3900-Lumen Max Power Levels _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Includes One Stage Series C2 2.0 LED Pod, Wire Pigtail, Mounting Bracket, And Hardware _x000D_
- Deutsch DT Input Connector _x000D_
- Operating Voltage Of 9-30V _x000D_
- Passive Cooling With Pin-Fin Heatsink _x000D_
- SAE J575 Durability Test Compliance _x000D_
- IP69K Waterproof And High-Pressure Intrusion Rated _x000D_
- Operating Temperature Range From -40°C To 85°C (-40°F To 185°F) _x000D_
- Current Draw Main Beam 1.8 Amps At 12.8V; Backlight 0.03 Amps _x000D_
- Power Consumption Main Beam 23 Watts; Backlight 0.38 Watts _x000D_
- Raw Output Up To 3960 Lumens _x000D_
- Color Temperature 6000K White _x000D_
- Peak Beam Intensity Up To 23000 Candela _x000D_
- Illuminance Up To 230 Lux At 10 Meters _x000D_
- Lens Material Polycarbonate With Aluminum Casting And Rubber Gasket _x000D_
- Product Dimensions 2.5 x 4.5 x 2.4 Inches _x000D_
- Unit Weight 0.55 Pounds; Product Weight 1.4 Pounds _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 4 to 4.75 Inch |
Description
Advanced LED Lighting. The Diode Dynamics Stage Series C2 2.0 Pro Flush Mount LED Pod Light with Red Backlight and White Flood is engineered to deliver powerful, focused illumination in a compact design. Ideal for mounting on bumpers, cargo areas, or roof racks, this pod enhances visibility for off-road and utility applications.
_x000D__x000D_Construction and Appearance. Featuring a powder-coated aluminum housing and durable polycarbonate lens, this LED pod offers rugged reliability with passive cooling via a pin-fin heatsink. The red backlight fully illuminates the Total Internal Reflection (TIR) optic for a distinctive modern look while ensuring resistance to moisture, corrosion, and environmental stress.
_x000D__x000D_Installation. Installation requires basic tools and typically takes 30 to 60 minutes. The flush mount kit provides a low-profile fit on flat surfaces, though some adaptation may be necessary depending on the mounting location and vehicle configuration.
_x000D__x000D_Warranty. This product includes a limited lifetime warranty to assure long-term reliability and customer satisfaction.
_x000D__x000D_Application. Designed for universal fitment, the pod may require minor adaptation based on the mounting surface and vehicle setup.
