Find Light Bars & Off-Road Lighting for your F-250

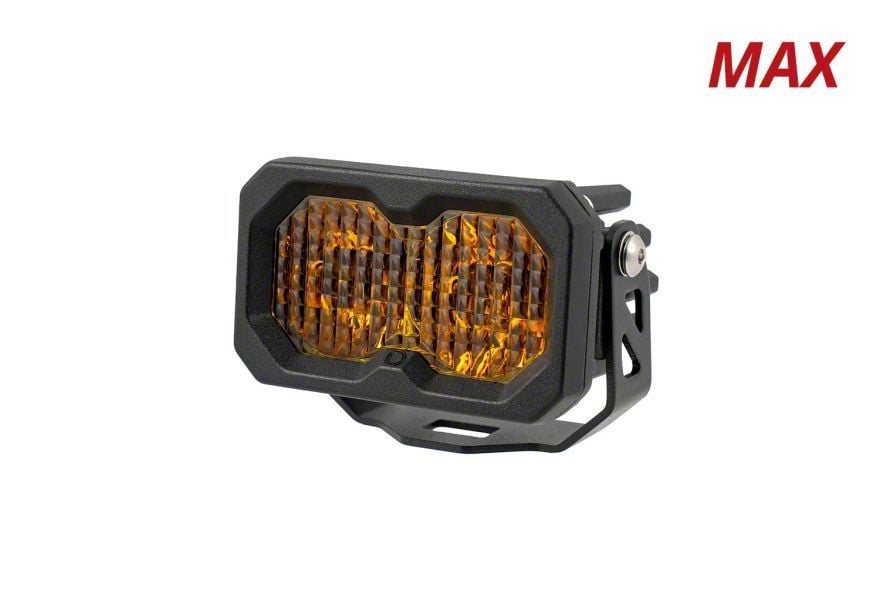

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; Yellow Driving (Universal; Some Adaptation May Be Required)
Item SD77349
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design For Tight Mounting Spots _x000D_
- Patented TIR Optics For Maximum Output _x000D_
- Up To 95% More Power Than C2 1.0 _x000D_
- Available In Sport, Pro, And New 3900-Lumen Max Power Levels _x000D_
- Customizable Mounting To Dial In Your Setup _x000D_
- Link Multiple Pods With Crosslink Technology _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Backlight Functionality Featuring Amber Low-Power Accent Light _x000D_
- Includes One Stage Series C2 2.0 LED Pod, Deutsch-Style Wire Pigtail, Mounting Bracket And Hardware _x000D_
- Operating Voltage Ranges From 9 To 30V _x000D_
- Uses Osram Boost HX LED Emitters _x000D_
- Polycarbonate Lens With Aluminum Casting And Rubber Gasket _x000D_
- IP69K Waterproof Rating With High-Pressure Intrusion Protection _x000D_
- Product Dimensions Of 2 x 3.3 x 2.4 Inches _x000D_
- Unit Weight Of 0.55 Pounds _x000D_
- Passive Cooling Via Pin-Fin Heatsink _x000D_
- Meets SAE J575 Durability Test _x000D_
- Polarity Specific Operation _x000D_
- Current Draw Of 2.3 Amps At 12.8V For Main Beam _x000D_
- Backlight Power Consumption Is 0.03 Amps At 12.8V _x000D_
- Operating Temperature From -40°C To 85°C (-40°F To 185°F) _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
Compact High-Performance Lighting. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight and Yellow Driving delivers intense illumination in a compact pod designed to fit tight spaces. Perfect for roof racks, bumpers, and A-pillars, this lighting solution enhances visibility with up to 3900 raw lumens, making it ideal for both on- and off-road use.
_x000D__x000D_Construction and Appearance. This LED pod features a powder-coated aluminum housing combined with a durable polycarbonate lens and rubber gasket to ensure excellent ingress protection. A copper-core circuit board bonded directly to Osram HX Boost LEDs improves thermal efficiency. The sleek amber backlight adds a modern accent to the yellow driving beam, all within a sturdy, weather-resistant design.
_x000D__x000D_Installation. Installation typically takes 30 to 60 minutes and requires only a basic toolset. No extensive modifications or drilling are generally necessary. The pod comes with a Deutsch-style wire pigtail for a secure connection and includes versatile mounting hardware, allowing precise aim adjustment.
_x000D__x000D_Warranty. This product is backed by a limited lifetime warranty, providing peace of mind and dependable performance.
_x000D__x000D_Application. Fits universal; some adaptation may be required.
Diode Dynamics DD8243S
