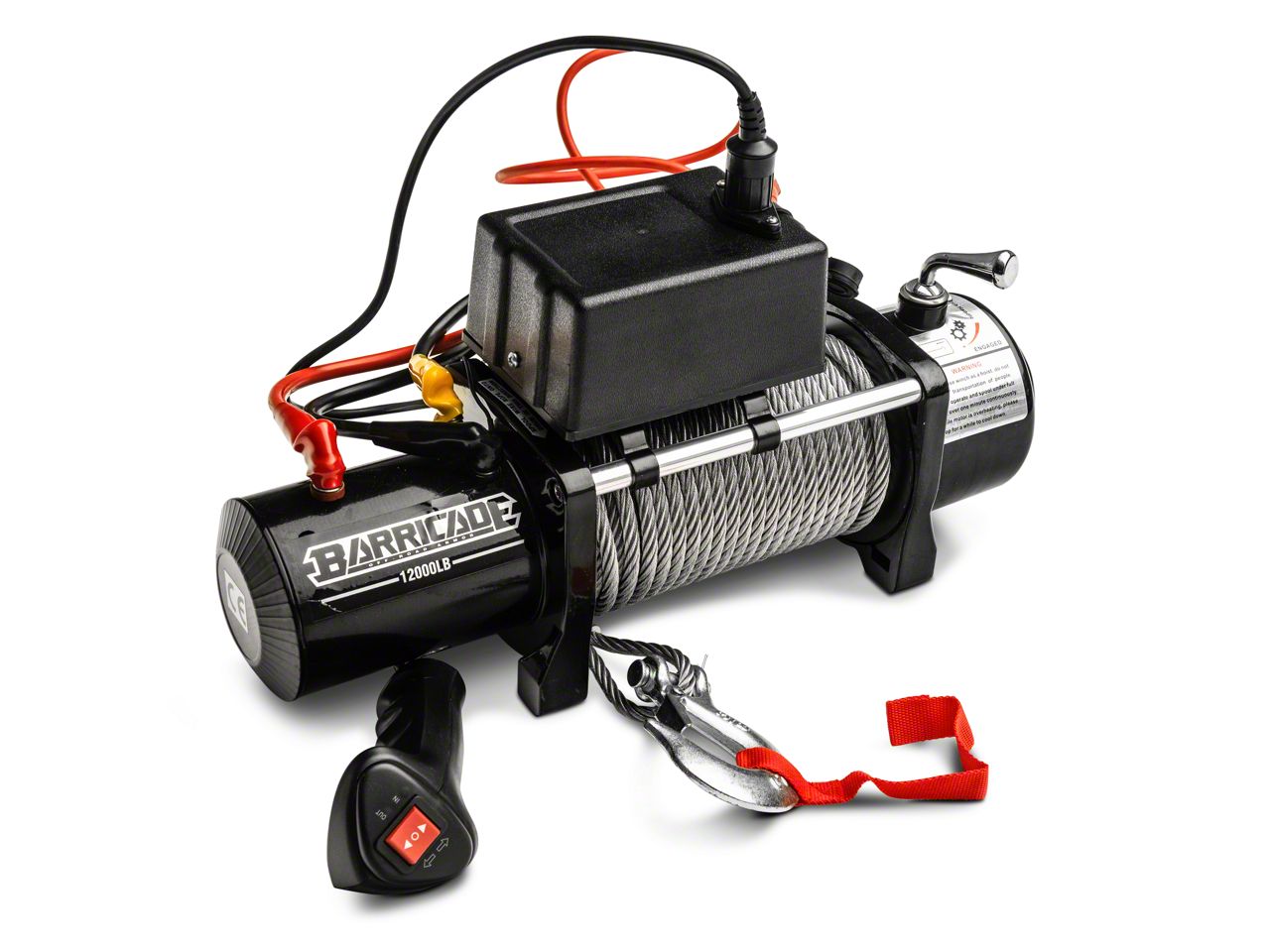

Barricade Silverado 1500 12,000 lb. Winch S102661 (Universal; Some Adaptation May Be Required)

Name: Barricade 12,000 lb. Winch (Universal; Some Adaptation May Be Required)
Brand: Barricade
SKU: S102661
Price: 409.99 USD
Availability: InStock
Rating: 4.5 (14 reviews)

Product Information

Features, Description, Reviews, Q&A, Specs & Installation

Features & Specs

12,000 Lb., (5443 Kgs) Single-Line Pulling Capacity
6.6 HP, 12-Volt, Series Wound Motor
3 Stage Planetary Gear with a 187.2:1 Ratio
94 Feet of 23/64 Inch Steel Winch Cable with Replaceable Hook
Line Speed Under Full Load is 6.4 Feet Per Minute
Weighs 58 lbs and is 21.1 Inches by 6.3 Inches by 8.6 Inches
Black Powder Coat Finish
Heavy-Duty Rubberized Remote Control with a 12 Foot Lead
Roller Fairlead
Fits 1999-2026 Silverados

Brand

Barricade

Winch Capacity

12000 lbs

Description

Budget-Friendly Kit. Get your money's worth on a new winch with this reasonably priced Barricade 12,000-lb. Winch. The 6.6 HP winch delivers everything you need for a safe off-roading experience without breaking your wallet. Boosting a 187.2:1 gear ratio box, you can pull you and your friends easily out of the messiest situations.

Winch and Line Specs. With 94 feet of 23/64 inch steel cable, you can be sure you always have enough winch rope to reach a recovery point no matter what the situation. Made to withstand the elements, the winch rope will last you for many years and many recoveries. The 12-foot lead on the rubberized remote ensures you can always reach your winch control box, even from inside of your Silverado

Accessories. This winch comes with a 23/64 inch steel winch cable, hook, remote control on a 12 foot lead, and roller fairlead.

Simple, Bolt-on Installation. Barricade engineered their Winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. There should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.

Application. This Barricade winch requires a battery with a minimum of 650 cold cranking amps to operate properly. Installs on all 1999-2026 Chevy Silverado models.

Line Pull Speeds

0 lbs. - 33.3 ft./min
4000 lbs. - 16.8 ft./min
6000 lbs. - 12.8 ft./min
8000 lbs. - 10.1 ft./min
10000 lbs. - 8.8 ft./min
12000 lbs. - 7.6 ft./min

Replacement Hardware – SKU U2396H

Shop All Truck Parts And Accessories

Shop All Truck Winches

Barricade S102661

CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Install Details & What's in the Box

Installation Info

Installation Time

(approx) 30 Minutes

Difficulty Level:

Simple installation for anyone.

Installation Guides

Manufacturer:
How to Install

What's in the Box

(1) Hexagon screw
(1) Spring washer M5
(1) Clutch handle
(1) Nut cap
(1) Cup gasket
(1) Spring washer Î¦20
(2) O-ring
(1) Gear box housing
(1) Shaft sleeve
(1) Sun gear
(1) 3rd Planetary gear assembly
(1) Dual inner gear
(1) 2nd Planetary gear assembly
(1) 1st Planetary gear assembly
(1) Sealing washer
(4) Hexagon screw M8x25
(4) Spring washer Î¦8
(1) Gear box bracket
(10) Spring washer Î¦4
(10) Hexagon screw M4x20
(2) Bearing bush
(2) Sealing washer
(1) Transmission shaft
(1) Drum assembly
(1) Brake assembly
(2) Tie bar
(1) Motor assembly
(4) Cross Recess Head Screw M4.2X12
(2) Mounting bracket assembly for control box
(1) Control box assembly
(1) Fairlead
(1) 3/8" Hook
(1) Wired remote control
(1) Battery negative (-) cord 1.8M
(1) Wireless remote control (Optional)
(1) 0.75mmÂ² brown switch control wire
(1) 0.75mmÂ² red switch control wire
(1) 0.75mmÂ² yellow switch control wire
(1) 0.75mmÂ² yellow remote control wire
(1) 0.75mmÂ² white remote control wire
(1) 0.75mmÂ² red remote control battery "+"
(1) 0.75mmÂ² black remote control battery "-"
(1) Green antenna
(1) 0.4m short Black Cable with Yellow Terminal Sleeve
(1) 1.8m long red battery cable "+"
(1) 0.4m black motor cable with black sleeve
(1) Black Cable with Black Sleeve (0.75mmx0.45m;earth)
(1) 0.4m Short Red Cable with Red Terminal Sleeve
(1) Receiver for remote
(1) U Type Strap-Aluminum
(1) Solenoid 12V
(1) Solenoid 24V

Tech Guides:

Warranty

Barricade offers our valued customers the following Limited Warranty on all Barricade product purchased after September 1st, 2026. What is Covered Subject to the terms, exclusions and limitations herein, and with respect only to products first sold in the United States, Barricade warrants that its products shall be free of manufacturing defects for five (5) years and finish defects, including rust & corrosion, for three (3) years from the date of initial retail purchase when the Barricade product is installed and used on purchaser’s vehicle according to supplied product installation instructions and/or warnings. This Limited Warranty is made only with respect to the initial purchaser and is not transferrable. Barricade reserves the right to require proof of purchase as a condition of this Limited Warranty and to make future revisions to this product or its Limited Warranty without obligation to provide notice of same to purchaser or to conform existing product to future revisions. Any change to this warranty made after purchase may be applied retroactively at the sole discretion of Barricade.

Click Here for Full Warranty Info
