Carli Suspension 4.50 to 5.50-Inch Backcountry Lift System with Carli SPEC 2.0 Remote Reservoir Shocks (17-22 4WD 6.7L Powerstroke F-350 Super Duty)

Item SSD26336
AmericanTrucks no longer carries the Carli Suspension 4.50 to 5.50-Inch Backcountry Lift System with Carli SPEC 2.0 Remote Reservoir Shocks (17-22 4WD 6.7L Powerstroke F-350 Super Duty). Please check out 2011-2016 Ford F-350 3 Inch to 5 Inch Lift Kits for an updated selection.
Verify parts fit and get product recommendations.
F-350 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00

    Product Information

    Features, Description, Q&A, Specs & Installation

    Features

    • Backcountry Lift System with Carli Spec 2.0 Remote Reservoir Shocks
    • Includes High-Clearance Bump Stop Drops
    • Comes with an Adjustable Track Bar
    • With Radius Arm Drops
    • Corrosion and Rust Resistant Components
    • Has Direct Fit and Vehicle-Specific Attributes
    • Fits all 2017-2022 4WD 6.7L Powerstroke F-350 Super Duty Models

    Description

    Description. The Super Duty Backcountry 2.0 system is designed for people seeking the best ride on and off-road quality on a budget; basically, the commuter for those that want to have a little dirt-road fun in their 8,500lb truck without losing the on-road ride quality or usability for which the truck was designed. You’re no longer limited to the highway while gravel roads become uninteresting as you can drive them at speed with one hand on the wheel. Utilizing Carli Spec 2.0” Remote Reservoir Shocks, we’ve developed a tune that delivers all around comfort and ride quality designed for on-road, in town, highway, towing/hauling as well as slow to mid speed off road use. The Carli Spec 2.0s boast extruded aluminum construction with a clear anodizing for corrosion resistance, are fully rebuildable and are built with hour-glass bushings in the rod-ends. Carli builds these shocks with their legendary red shock oil that flows well down to -55° F.

    The truck will sit 4.50" higher in the front and have more wheel travel thanks to the taller, Progressive Rate Coil Springs. Radius Arm Drop Brackets reset the pivot point and keep the travel linear for the best ride while the Sway Bar Link & Drop Brackets Kit resets the sway bar engagement point. The End Link Kit is listed as an “option”, but it’s necessary to run. We plan to release a Torsion Sway Bar in the near future so the end-link options were pulled from the base kit and made selectable in anticipation of the second option. Bump Stop Drops protect the shocks from over-compressing, the Adjustable Track Bar centers the front axle and Stainless Brake Lines firm up braking and ensure there is enough line for the newfound travel. To round off the front end, we include Caster Shims to tighten the steering.

    The rear can be outfitted with a replacement Full Progressive Spring Pack (reduces capacity to a “light” ¾-ton) or factory leaf-pack modifying Progressive Add-a-Pack (maintains factory payload capacity and pairs with the included Carli Fabricated 2” block). This is where the F250 and F350 are a bit different. Since 2008, the main spring packs on these two trucks is different; the F250 has a lighter rate spring pack than its 350 counterpart. The F250 Add-a-Pack equipped systems are a nice improvement over stock; the F350 with the Add-a-Pack is still very stiff in the rear as the main pack doesn’t move much unless loaded. We recommend the Full Replacement Leaf Spring packs for both trucks but especially the F350 given the super-stiff factory springs. If capacity is a concern, the Full Progressive Leaf Springs can be supplemented back to the factory capacity of a SRW F350 with the addition of our Long-Travel Airbags (Coming soon for the 2017). The Full Progressive Leaf Spring Pack will shift the axle slightly forward in the wheel well to ensure maximum tire clearance for a 37” M/T at full compression.

    Wheel and Tire: Factory Wheels SHOULD NOT be run with oversized tires. They’re known to rub the radius arm, sway bar and most concerning – Brake Lines. Factory tires and factory wheels will work without issue but we DO NOT recommend running oversized tires on factory wheels. On our 4.5” Ford Systems, we recommend 17”-18” wheels, no more than 9” wide with 5” of backspacing with a 37”, E-Rated Tire. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter.

    Please Note. The Lift Kit will provided a 4.50-Inch Lift to 2017-2019 Models, and 5.50-Inch Lift to 2020-2022 Models.

    Warranty. There is a limited lifetime warranty on this product.

    Application. This Carli Suspension 4.50 to 5.50-Inch Backcountry Lift System with Carli Spec 2.0 Remote Reservoir Shocks fits all 2017-2022 4WD 6.7L Powerstroke F-350 Super Duty Models.

    Please Note. The Lift Kit will provided a 4.50-Inch Lift for 2017-2019 Models, and 5.50-Inch Lift for 2020-2022 Models.

    CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    Installation & What's in the Box

    Installation Info

    What's in the Box

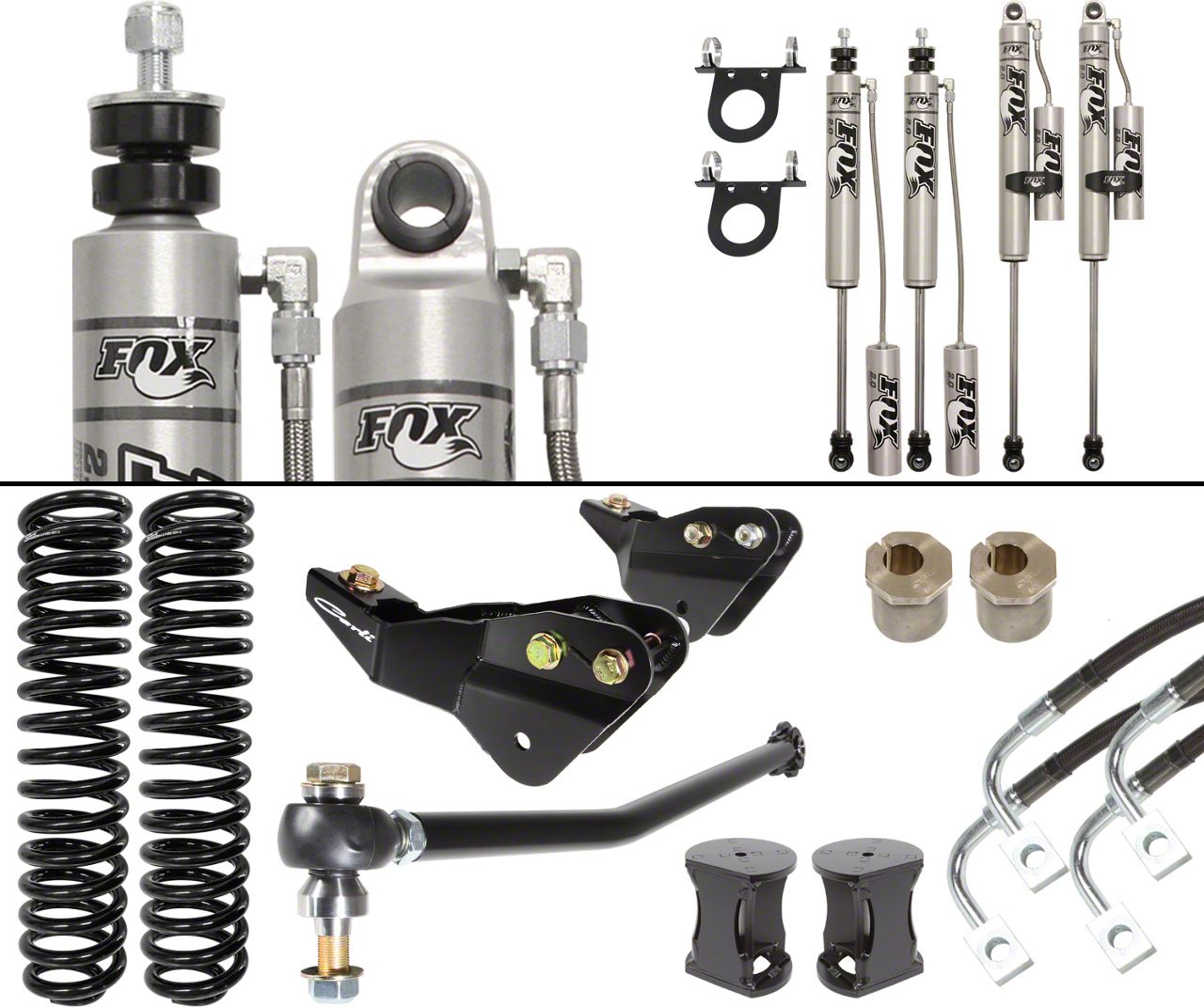

    • (1) Backcountry Lift System
    • (1) Set of FOX 2.0 Remote Reservoir Shocks
