Carli Suspension 2.50-Inch Front E-Venture Leveling System with SDI EClik Remote Reservoir Shocks (17-22 4WD 6.7L Powerstroke F-250 Super Duty)

Item SD28561
Product Image
25 Reviews of Carli Suspension
Our Price

$6,741.00 set

Military, Medical & First Responders $337.05 Available in AT Cash Rewards.
Confirm Eligibility

Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

      • 2.5" F250/350 Lift Height
      • 9" Front Travel
      • 13" Rear Travel
      • 2.5" Shock Diameter
      • 37" X 12.5" Tire Fitment
      • Base Kit Includes Front Leveling Coils, Custom Tuned 2.5" Shocks With Harnesses, ECU, Touch Screen, IMU, Front Brake Lines, 2° Caster Shims, High Clearance Front Bump Stop Drops, And Track Bar
      • Long Bed Extension Harness Available For Crew Cab Long Bed And Super-Cab Long Bed Trucks
      • Requires Use Of Torsion Sway Bar
      • Optimized For Use With Full Progressive Leaf Springs In Rear
      • Fabricated Radius Arms Available For Additional Tire Clearance And Shock Protection
      • Optional High Mount And Low Mount Steering Stabilizers Offered
      • Trophy Hitch Option For Oversized Spare Tire Storage
      • Fits 2017-2022 4WD 6.7L Powerstroke F-250 Super Duty

      Description

      Electronic Suspension System. The Carli Suspension 2.50-Inch Front E-Venture Leveling System with SDI EClik Remote Reservoir Shocks is an advanced suspension upgrade designed to provide a factory-level ride height lift while enhancing off-road capability. This system uses real-time data from integrated sensors and an ECU to actively adjust damping, delivering improved wheel control, comfort, and performance under various driving conditions.

      Construction and Appearance. The system features hard-anodized aluminum shock bodies and reservoirs paired with corrosion-resistant 17-4 stainless steel shock shafts, ensuring durability and a premium finish. Components include custom coil springs, high clearance bump stop drops, and reinforced suspension hardware designed to maintain structural integrity while providing increased suspension travel. The design balances ruggedness with precision engineering.

      Installation. Installation requires moderate mechanical skill and attention to detail. The system uses factory mounting points with supplied hardware, eliminating the need for drilling. All harnesses and sensors are pre-configured for plug-and-play integration, simplifying the setup process.

      Application. This suspension system is designed to fit 2017 to 2022 4WD 6.7L Powerstroke F-250 Super Duty models. It helps maintain vehicle dynamics while providing a substantial leveling lift and enhanced suspension travel to accommodate larger tire sizes.

      Carli Suspension CS-FLVL-EV25-17

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 6 Hours

      Difficulty Level:

      Mechanical expertise or professional installation required.

      Installation Guides

        No guide available for this part yet.

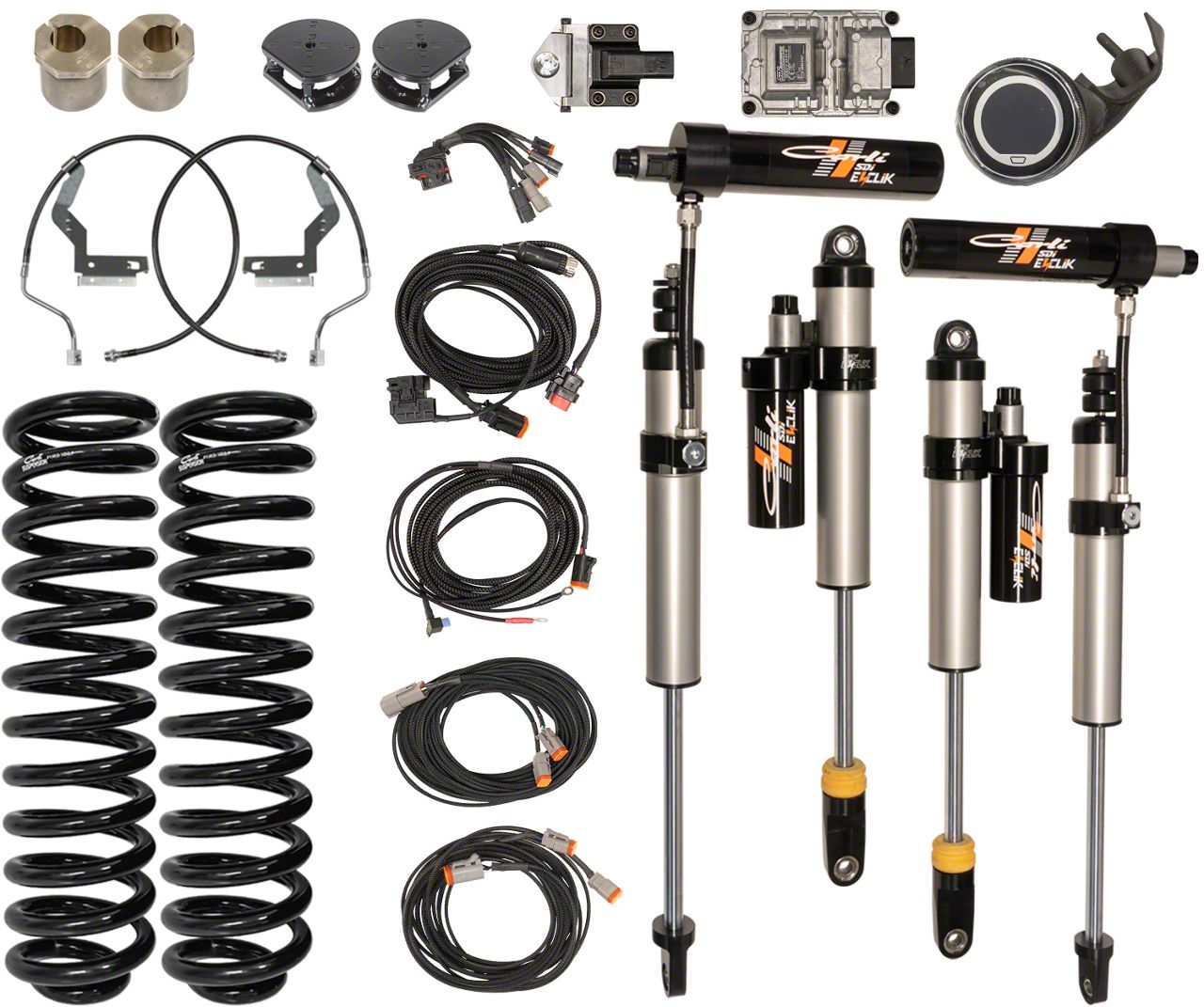

      What's in the Box

      • E-Venture Shock Absorbers
      • Front Coil Springs
      • (1) Adjustable Track Bar
      • Bump Stop Drops
      • Stainless Steel Brake Lines
      • SDI EClik Remote Reservoir Shocks
      4.7

      Reviews of Carli Suspension Suspension Products (25)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My F-250

      • 6.7L V8 Power-Stroke - 17, 18, 19, 20, 21, 22
