(approx) 15 Minutes
Simple installation for anyone.
$399.00 (each)FREE Shipping
Hey, guys, Adam here with americantrucks.com. And today we're taking a closer look at dyno testing and installing the SCT BDX Tuner with Preloaded Tunes available for the '15 to '18 3.5-liter EcoBoost F-150. Now, before we jump into everything, guys, know that we're gonna be going over the preloaded tunes included with the BDX device but know that this is a great option for guys who also maybe want to work with their own local custom tuner because this can hold up to 10 custom tunes.For the sake of the dyno testing today we're looking at those preloaded tunes with that modified 93 octane in there to maximize the octane performance. Now, before we jump into those details of the tuner itself, we, of course, established our baseline run with our '16 3.5 behind me, it's got 35s on, keep in mind, and it also has 93 in the tank and is bone stock under the hood, so those are some of the variables you want to keep in mind looking at this graph. Established our baseline numbers here, walked away with 307 horsepower and about 338 pound-feet of torque at the rear wheels, we then, of course, uploaded our 93 octane tune, that modified preloaded tune, ran it under the same conditions with 35s to 93, walked away with 315 horsepower and about 377 pound-feet of torque at the rear wheels, good for peak gains of 8 horsepower and 39 torque at the rear. Now, peak gains alone look pretty good, that torgue, 39 torque, great number. We want to look at the curve games though, that's really what you're gonna feel out on the street. Curve gains came in right around 3,500 RPMs. We're looking at about 27 horsepower and a gain of 41 pound-feet of torque at the rear tires, which, guys, is going to make such a big difference on the road, 41 torque, 27 horse, we're pushing about 377 torque at 3,500, now, that's gonna completely change that driving experience at the low end. We know these trucks can be a little sluggish, it can take a little time for the turbo to spool but this is definitely gonna make that difference. So, as you saw, guys, with just a very simple 93 octane tune you can get a lot out of the BDX tuner. But aside from that, you can hold up to 10 custom tune files for your specific vehicle which you can get from a tuner of your choice. Now, in addition to just tuning the vehicle, you're also gonna get features like the gauges and data log readers. So, what that basically means is you can track live engine vitals on the fly at any time with this plugged into your OBD-II. You can track things like boost, air intake temperature, coolant temperature, air/fuel ratio, so on and so forth, voltage. There's just an endless number of opportunities, you can track up to eight gauges at once on this screen in both portrait and landscape mode. You're also gonna be able to data log your vehicle's performance. So if you're working with your custom tuner, you just got a new tune, you might want to see how it's performing to see if it needs any revisions, you can do that right on the device as well and upload it to the cloud. Yes, you get cloud access with the BDX. It's basically wireless just like iCloud, you can send your files to the cloud for your tuner to access or vice versa. You also get Wi-Fi access and wireless updating capabilities because SCT updates these guys and you don't even need to plug it into a laptop. And also, you're gonna be able to take advantage of a DTC code reader. Now, DTC being diagnostic trouble codes, so, check engine light comes on, you can read it and clear it right on the device. Now, the price of this comes in right around 400 bucks, and the install, of course, gets one out three wrenches on our difficulty meter, anybody can tackle this in the driveway at home or really anywhere with just about 30 minutes or so. I'm gonna show you the process of uploading that preloaded tuner, but the process is the exact same for the custom tuner, you would just select a different file. I'm gonna take you through the tuning process then walk you through those features I just mentioned. Let's get to it.All right, guys, once you have your BDX device plugged into the OBD-II port, make sure the key is in the on position but don't start your engine. From here, what we're gonna do is jump right into tuning the vehicle using that preloaded tune for our 3.5. So we're gonna select program vehicle from the main menu. Confirm your VIN. And if your device needs updates, so, if it's the first time out of the box and you're just turning it on, you want to hit continue on this to do any updates that need to be done to this device before you get started, otherwise you might get a couple of error messages, you want to be on the latest software. So we've already taken care of that, so we're gonna hit skip. Keep in mind that that will require Wi-Fi network access, so make sure you're connected to Wi-Fi and it'll ask you for that once you hit continue. Cloud sync. So, of course, we're focusing on that preloaded tune on the BDX, but if you're using custom tunes you may have loaded on the BDX device, you might have them on the cloud and you can hit continue to sync them from the cloud to your device, but, again, using the preloaded, we're gonna hit skip. There's just a street use notice, hit continue on that. Make sure the key is on, like I said, and it'll move forward. All right, so, if you're using a custom tune, it'll be down here. We're gonna focus on that 3.5 preloaded tune which is going to modify some of our parameters to really maximize that performance. So, from here, if you want to make any customizations or changes to the tune itself, you can do so now. We're gonna keep that the same but I want to show you guys what those changes would be. Here are some of those configurations. Fuel octane is listed as stock, so what we are gonna do is change that 93 octane. There's a speed limiter, Rev limiter, all that good stuff, what we are gonna change is the octane. Change that over to 93, select approve. All right, from here we're gonna hit continue. It's gonna load our stock tune to the device and save that. So if we ever want to revert back to stock, it'll have that here and you can easily do that following the same process. From here it'll go right into writing our tune. All right, so at this point, it's telling us to turn the key off, and then just wait, back on. All right, programming complete, you can hit done, it'll take you back to the main menu. You can unplug and you're good to go. Now, aside from program vehicle, we have a couple of other functions I want to go through with the device. Now, under that is gauges and data log. So if you select that, make sure the key is on, hit continue, you'll be able to track live engine vitals and data log your vehicle's performance. So what you want to do first is select the proper configuration. So it starts with a baseline almost template for the configuration. So, we're using a 2016 EcoBoost. So what we want to do is go down to find Ford Gas '08 and newer, so 2008 vehicles and newer. Obviously, since we're using a '16, so we're gonna press continue on that and it'll upload that configuration, download the diagnostics from the vehicle and show us that in real time. So, we have control module voltage, you can see boost and PSI, car's not on, so we're not gonna have anything to read there. But if I wanted to change control module voltage, we can select it, select the item, say we want to track air intake temp, select that, hit approve. And that'll take you and change that gauge. Now, from here, if you want to monitor up to the maximum amount of gauges at the same time, you'll select gauge layout here from the menu. And you have a bunch of different options. You can even rotate it to be landscape instead of portrait. Now, if we want to change that to monitor up to eight at once, we have now eight gauges and you can select those individually, you get abbreviated words, so air intake temperature, things like that, boost is still top left. So, as you can see, there's a lot you can really do with that. Now, you can also start recording this data. So if you're using a custom tuner, you have a new tune, you want to make revisions, you can download, you can data log, download that data log, send it to your tuner, make revisions, there's a lot of useful information that you can take advantage of here. Now, go back to the main menu, you'll just hit stop data log. Under that vehicle functions. You can read and clear DTC codes or diagnostic trouble codes. So, check engine light comes on, you can plug this in, read it, get a description, get the code, once it's taken care of, you can clear it so the check engine light goes away. So, that's a good function to have, you don't need a separate tuner for that, separate device, don't need to go to an auto parts store. Special function, something most people won't use, CAM re-learn, don't have to worry about that, we're gonna go right back to the main menu. Vehicle Info is gonna be things like your VIN number, your ECU Strategy code, all useful information for you to have when you're requesting new custom tunes, your tuner will definitely need that info, so, that's good to have right here on hand. Under that, device info. This is things like your app name, part number, serial number, firmware and software versions, how many unlocks you have left, your paired status, things like that. So, hit exit. Finally, device updates. Check for updates and Wi-Fi go hand-in-hand, those you can use to get wireless updates, software updates, firmware updates from SCT. You can also search the cloud for new tunes if your tuner puts that on the cloud, you can download it here. You can upload your data log to the cloud for your tuner to access. You can upload your stock file to the cloud as well. Other things would be very simple device changes. You can change the brightness, orientation from portrait to landscape, you can change the color from, say, light blue to dark blue, changes the white to black. You can also go dark red, there's a bunch of different options, light red, we're gonna stick to the light blue though. Under that, you can change start-up function. So this is, I think, the last important thing to talk about here. If you boot up your device, you plug your device in, you can have it set that it automatically defaults to the gauges and data log screen. So, basically, if you have this plugged in at all times and have it mounted on a windshield which you can do, you can basically have, every time you turn the car on, it goes, turns on, immediately goes right to gauges. So I think that's a pretty useful feature for guys who want to use that every day. From there we can hit exit, take you right back to the main menu, and that's your device. Well, guys, that's gonna wrap up my review and install for the SCT BDX Tuner for all 2015, '18 3.5 liter EcoBoost F-150. So, you can get your tuner right here at americantrucks.com.
Subscribe to our YouTube Channel
Features, Description, Specs & Installation
Powerful Performance Tuning. Unlock the untapped power of your Ford F-150 with this BDX Tuner from SCT. Engineered to deliver street-tested, dyno-proven custom tune files, this device helps you unlock the true performance potential of your truck. SCT’s expert calibrators developed plenty of tuning options to enable you to achieve improved and more efficient performance. This device is made to optimize a variety of vehicle function so you can get more horsepower and torque from your engine. This includes adjustments in the timing, rev limiter, transmission shift points, intake airbox, and wheel and tire size calibrations among others. All these are custom-tailored for your vehicle and your own standards.

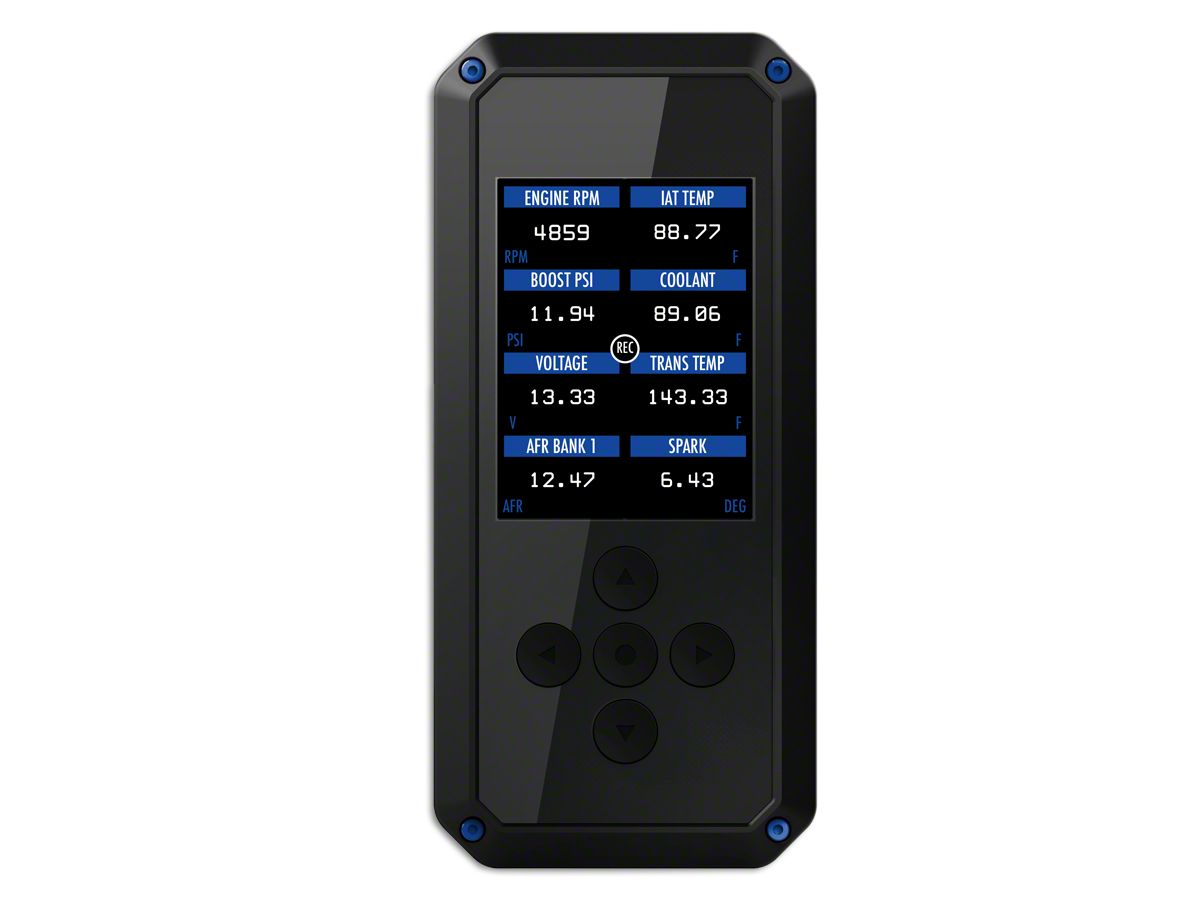

Hassle-Free Monitoring of Key Engine Data. You can count on this performance tuner to always offer great readability that goes well with its lightning-fast interface. Thus, monitoring engine parameters and on-screen gauges in real time is never a problem. The data logging capability lets you record the performance of your truck and play it back through SCT’s LiveLink software which you can download for free. With the ability to read and clear diagnostic trouble codes, the BDX Tuner also saves you a trip to your dealership just to have “check engine light” codes cleared.
Ergonomic Tuning. SCT’s BDX Tuner not only offers great performance but also ergonomic tuning. The device features an intuitive interface and easy-to-use buttons so you can easily navigate it and have hassle-free monitoring. It comes with three pre-loaded tunes including Street, Tow, and Performance. If these don’t work for you, you can always choose to load up to 20 custom tunes from SCT’s dealers worldwide. Sending and receiving files is also a breeze with the tuner’s built-in WiFi.
Quick Installation. This device is a breeze to use and also hassle-free to install. You can quickly and easily set this up through your Ford F-150 truck’s OBDII port. The installation process will take only about 30 minutes or less.
1-Year Limited Warranty. SCT offers a 1-year limited warranty for this BDX Tuner. The warranty coverage starts on the date of purchase and is non-transferrable. Any software or firmware malfunctions are included in the warranty. Like every limited warranty out there, this only covers defects in material or workmanship.
Application. This BDX Tuner is made to fit 2015-2020 Ford F-150 models equipped with 3.5L EcoBoost engines. However, fitment doesn’t include Ford F-150 Raptor models. It is recommended that you download the free LiveLink and Updater Software for easy Firmware updating and data logging. You will need a Windows Vista/7/8/10 and an internet connection.
Application Note: This product is not legal for sale or use in California on pollution controlled motor vehicles.
