Find 3 Inch to 5 Inch Lift Kits for your Ranger

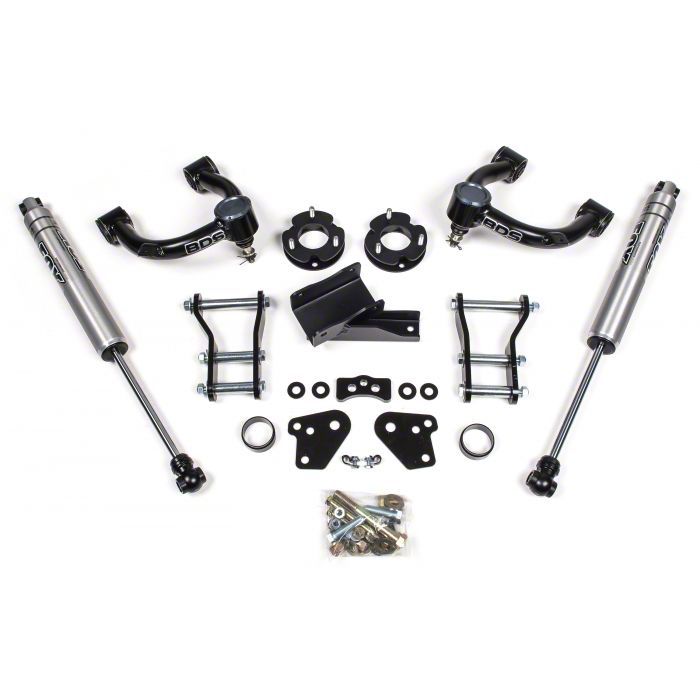

BDS 3.50-Inch Suspension Lift Kit with FOX 2.0 Performance Shocks (19-23 4WD Ranger w/ Factory Aluminum Knuckles, Excluding Tremor)Find parts that fit my vehicle

Item FR20209
Product Image
20 Reviews
Our Price

$1,539.85 kit

Military, Medical & First Responders $76.99 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • Improve the Performance and Style of Your Truck with a 3.5-Inch Lift Kit
      • Engineered for Additional Tire Clearance and Suspension Travel with Included Upper Control Arms
      • Two-Piece Front Strut Spacer Design: Top Mounted Steel Spacer plus Preload Spacer
      • Front Differential Repositioned Using Relocation Brackets to Correct CV Axle Angle
      • Includes Heavy-Duty Performance Upper Control Arms for Improved Strength and Increased Suspension Travel
      • Rear Features Heavy-Duty Lift Shackles and Choice of NX2 Nitro or Fox 2.0 Performance Series Rear Shocks
      • Upper Control Arms Constructed with 1.5-Inch Outer Diameter x 0.120-Wall Tubular Steel and Indexed Ball Joint Cup
      • Maintains Factory Ride Quality with Maintenance-Free Rubber Bushings and Greaseable Ball Joints
      • Recommended Tires: 285/65 with 18x9 Wheels and 5.75-Inch Backspace, or 305/55 with 20x9 Wheels and 5-Inch Backspace
      • 2020+ Ford Rangers May Feature Either Cast Aluminum or Cast Steel Knuckles
      • Certain Models with Cast Steel Knuckles Use Different Ball Joints Than Aluminum Knuckles, Affecting Fitment
      • Choose Between NX2 Nitro Series Rear Shocks with Nitrogen-Charged Twin-Tube and 10-Stage Velocity-Sensitive Valving, or Fox 2.0 Performance Series with 2-Inch Extruded Aluminum Body and Internal Floating Piston
      • Easy, 100% Bolt-On Installation Without Drilling
      • Recommended Trimming Required for Larger Tires on Factory Wheels Due to Steering Knuckle Clearance
      • Will Not Fit Trucks Equipped with Cast Steel Steering Knuckles
      • Fits 2019-2023 4WD Ford Ranger with Factory Aluminum Knuckles, Excluding Tremor Models

      Description

      SUSPENSION PERFORMANCE ENHANCEMENT. The 3.50-Inch Suspension Lift Kit with FOX 2.0 Performance Shocks is designed to elevate your Ford Ranger’s off-road capability and stance. This lift kit increases tire clearance and suspension travel while maintaining proper drivetrain geometry via a two-piece front strut spacer design and differential relocation brackets. It delivers enhanced ride quality and durability for daily driving and rugged terrain.

      CONSTRUCTION AND APPEARANCE. The kit includes heavy-duty components such as 1.5-inch outer diameter tubular upper control arms with indexed ball joint cups for precise alignment and increased suspension travel. All parts are finished with a durable black powder coat for corrosion resistance. FOX shocks feature anodized aluminum bodies with hard chrome shafts, while NX2 shocks have a silver powder coat finish.

      INSTALLATION. Installation is moderate difficulty and designed for a 100% bolt-on fitment without the need for drilling. Specialized tools like a strut compressor, air hammer, and axle nut socket are recommended to help complete the installation in approximately four hours.

      APPLICATION. This lift kit fits 2019-2023 Ford Ranger 4WD models equipped with factory aluminum knuckles, excluding Tremor editions. It is not compatible with trucks that have cast steel steering knuckles due to differences in ball joints and clearance issues.

      BDS BDS1545FS

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 2 Hours

      Difficulty Level:

      Mechanical expertise or professional installation required.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (1) Suspension Lift Kit

      4.5

      Customer Reviews (20)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Ranger

      • 2.3L I4 EcoBoost - 19, 20, 21, 22, 23
