Installation Time
(approx) 30 Minutes
Difficulty Level:
Simple installation for anyone.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details

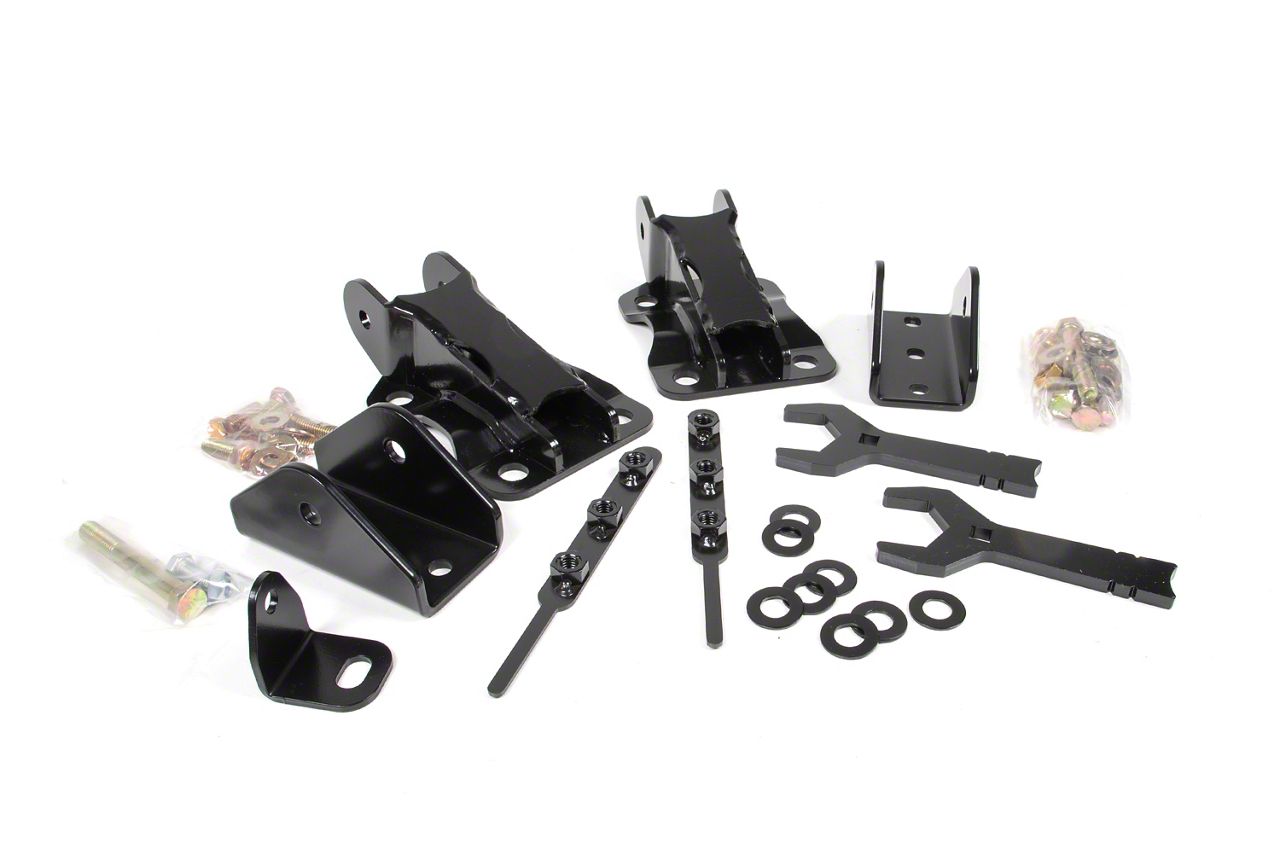

BDS Recoil Traction Bar Mounting Kit (17-26 4WD F-250 Super Duty SuperCab, SuperCrew w/ 4.50-Inch Axle)Find parts that fit my vehicle
Item SD57188
Our Price
$274.95 kit
Military, Medical & First Responders
$13.75 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Improve Traction On Your 2017-2026 Ford F250 / F350 Super Duty 4WD With 4.5 Inch Diameter Axle
- Heavy Wall Construction And Internal Dual-Stage Compression Springs
- Adjustable Spring Load Can Be Set While Installed On Vehicle To Control Axle Wrap
- Full Float Design Allows Bind-Free Performance And Accommodates Range Of Lift Heights
- Fabricated From 2-Inch Outer Diameter By 3/16-Inch Wall Steel Tubing
- Threaded Bung Welded Toward Axle And CNC-Machined End At Frame
- Axle Mount Includes Ultra-Durable Large-Forged Flex End And Jam Nut
- Forged Housing With 1-1/4-Inch By 12 Threaded Shank, Single Sided Snap Ring, And One-Piece Flex Ball
- Flex Ends Support Up To 15 Degrees Of Misalignment In Either Direction
- Frame End Uses Durometer Specific Polyurethane Bushing And Free Floating Traction Bar
- Dual Stage Internal Compression Springs With UHMW Polyurethane Bearings
- Axle Wrap Control Adjustable With Dual-Stage Resistance Springs
- Spring Preload Adjustable Without Disassembly
- Greaseable And Rebuildable Traction Bar Ends
- Bolt-On Mounting Brackets With Minor Drilling Required For Frame Mount
- Does Not Fit Regular Cab Models
- Fits 17-26 4WD F-250 Super Duty SuperCab, SuperCrew W/ 4.50-Inch Axle Excludes Regular Cab Models
Description
Traction Bar Mounting Kit. The BDS Recoil Traction Bar Mounting Kit improves traction and controls axle wrap on 2017-2026 Ford F250 and F350 Super Duty 4WD trucks equipped with a 4.5-inch diameter axle. It enhances wheel grip under load and acceleration while maintaining suspension articulation for optimal driveline performance.
Construction and Appearance. This kit is constructed from heavy-duty 2-inch outer diameter steel tubing with a 3/16-inch wall thickness. It features a threaded bung welded near the axle and a CNC-machined frame mount end. The axle mount includes a forged flex end with a jam nut and is capable of supporting up to 15 degrees of misalignment. The frame end uses durometer-specific polyurethane bushings and UHMW bearings within a free-floating traction bar design, ensuring durability and smooth operation.
Installation. Installation uses bolt-on mounting brackets with minor drilling required for the frame mounts. Spring preload adjustment can be performed on the vehicle without disassembly, simplifying setup and maintenance.
Application. Designed specifically for 2017-2026 4WD Ford F-250 Super Duty SuperCab and SuperCrew models with a 4.50-inch axle, this kit does not fit regular cab models due to axle diameter differences.
BDS BDS123426
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Traction Bar Mounting Kit
5.0
Reviews of BDS Suspension Products (1)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-250
- 6.2L V8 - 17, 18, 19, 20, 21, 22
- 6.7L V8 Power-Stroke - 17, 18, 19, 20, 21, 22, 23, 24, 25, 26
- 6.8L V8 - 23, 24, 25, 26
- 7.3L V8 - 20, 21, 22, 23, 24, 25, 26
