Find Transmission & Transfer Case for your F-250

BD Power Torquemaster 6R140 Transmission and Converter Package; $2000 Core Charge Included (17-19 6.7L Powerstroke F-250 Super Duty)Find parts that fit my vehicle

Item SD60165
Product Image
5 Reviews of BD Power
Our Price

$10,024.95 kit

Military, Medical & First Responders $501.25 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • More Clutches Compared To Stock And Competitors

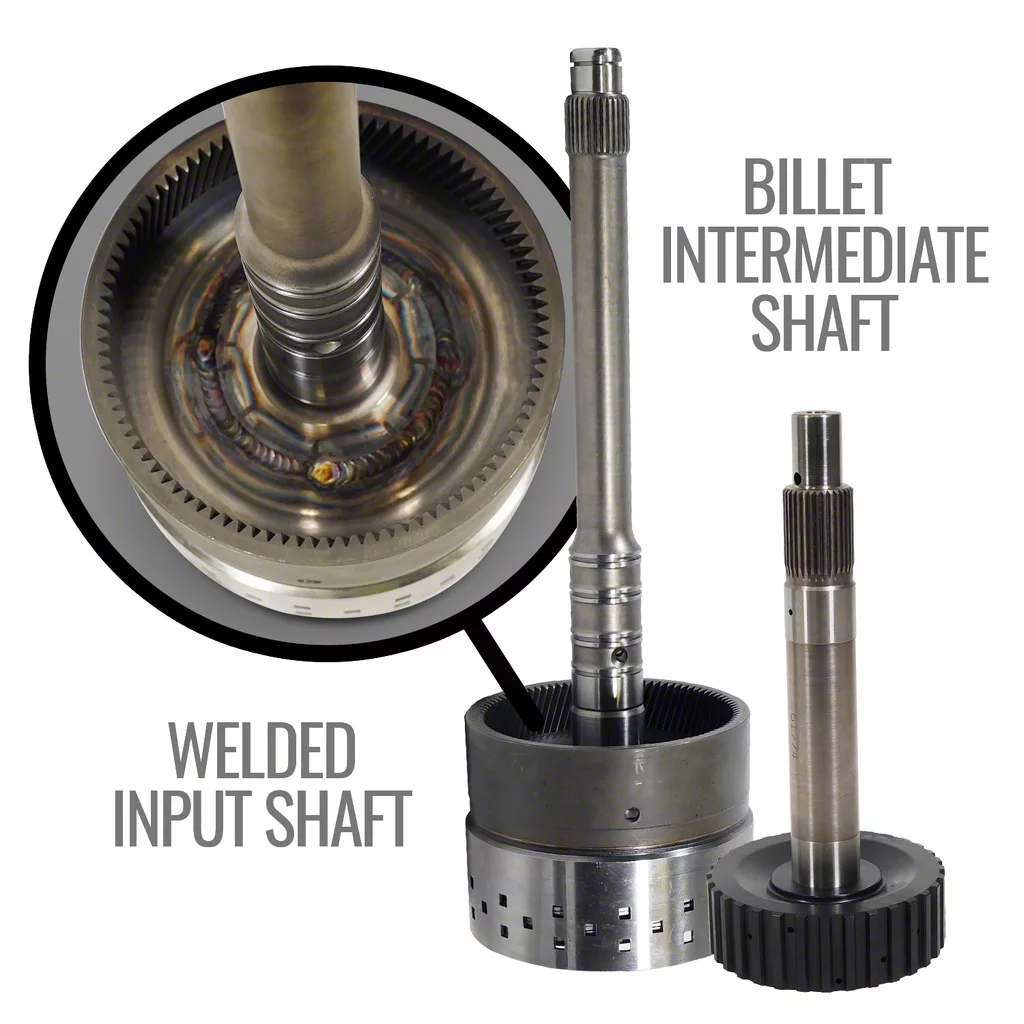

      • Billet Intermediate Shaft To Handle Higher Power
      • Upgraded Input Shaft Is Tig Welded To Prevent OEM Weld Failure In Demanding Applications
      • Custom BD Patented Pressure Plates Increase Clutch Count Without Sacrificing Part Strength
      • Clutch Count Forward 6 (20% Increase Over Stock)
      • Clutch Count Direct 6 (20% Increase Over Stock)
      • Clutch Count Intermediate 8 (60% Increase Over Stock)
      • Clutch Count Overdrive 8 (14% Increase Over Stock)
      • Clutch Count Low Reverse 5
      • Brand New Valve Body
      • Electronic Line Pressure Controller For Up To 300psi Line Pressure
      • Pressure Controller Provides 76% More Theoretical Holding Power
      • Delivers Up To 300psi Line Pressure At Wide Open Throttle
      • Active Only When Boost Over 15psi, Avoiding Parasitic Load Or Extra Heat When Inactive
      • Ideal Torque Converter Upgrade For Heavy Tow Use Or Higher Horsepower
      • Captured Clutch Design Maintains Good Drivability Feel
      • Four Surface Clutch Assembly Doubles OEM Friction Area
      • Increased Steel Count For Enhanced Heat Dissipation
      • 23% Increased Piston Area For Additional Clutch Clamping Force
      • Billet Bearing Hub, Piston And Clutch Retainer
      • Stamp Forged One-Piece Cover
      • Furnace-Brazed Pump And Turbine Fins
      • Includes Heavy Duty Pan Adding Extra Fluid Capacity
      • Requires Ford Scanner For TCM Update And Relearn
      • Compatible With 2WD And 4WD Applications
      • 2WD Applications Require Yoke Adapter And Rear Mount Bracket Transfer
      • Will Not Fit Early 2011 Trucks With 8-Bolt Flex Plate – Requires 6-Bolt Flex Plate Upgrade
      • Fits 17-19 6.7L Powerstroke F-250 Super Duty

      Description

      Advanced Transmission Package. The BD Power Torquemaster 6R140 Transmission and Converter Package; $2000 Core Charge Included combines a high-performance transmission and torque converter engineered for enhanced durability and power handling. Designed specifically for heavy towing and high horsepower applications, this matched set has been dyno tested to ensure optimal performance and reliability under demanding conditions.

      Construction and Appearance. This transmission features a billet intermediate shaft and an upgraded tig-welded input shaft to resist OEM weld failures. It includes custom patented pressure plates increasing clutch counts significantly over stock. The torque converter boasts a captured clutch design with billet bearing hub, piston, and clutch retainer, plus a stamp forged one-piece cover and furnace-brazed pump and turbine fins, all designed for superior heat dissipation and durability.

      Installation. Installation requires approximately 12 hours and the use of a Ford scanner to update the Transmission Control Module with the new solenoid code and perform a relearn process, which is critical for proper transmission operation. No drilling or modifications are generally needed, but 2WD setups require transferring the yoke adapter and rear mount bracket.

      Warranty. Includes a 36-month/150,000-mile parts warranty and a 12-month/12,000-mile labor warranty, excluding race abuse.

      Application. Specifically designed to fit 17-19 6.7L Powerstroke F-250 Super Duty models. Not compatible with early 2011 trucks equipped with an 8-bolt flex plate without upgrading to a 6-bolt flex plate.

      BD Power 1064514BM

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) a Day

      Difficulty Level:

      Mechanical expertise or professional installation required.

      Installation Guides

      What's in the Box

      • (1) Transmission and Converter Package
      4.7

      Reviews of BD Power Drivetrain Products (5)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My F-250

      • 6.7L V8 Power-Stroke - 17, 18, 19
