Installation Time
(approx) a Day
Difficulty Level:
Mechanical expertise or professional installation required.
FREE 1 to 3-Day Delivery on Orders $149+ Details

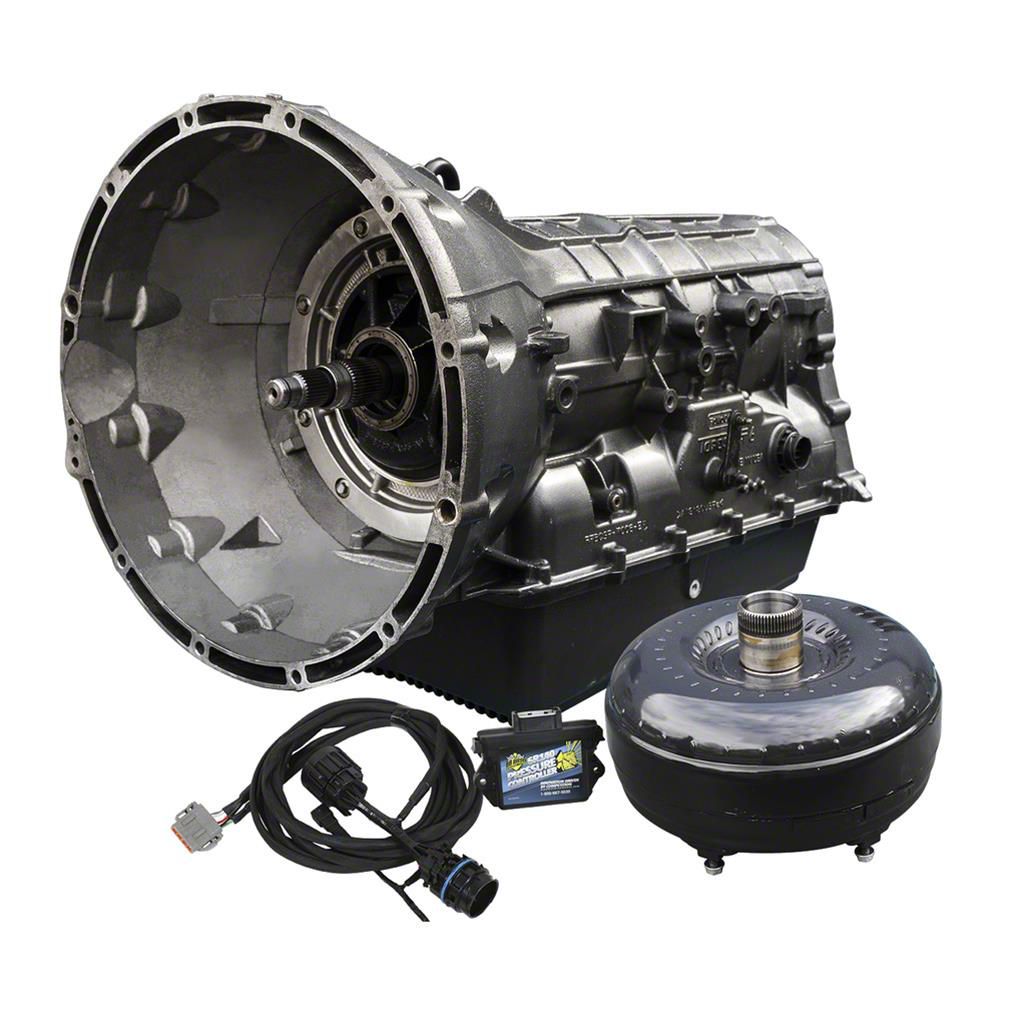

BD Power 6R140 Transmission and Converter Package; $2000 Core Charge Included (17-19 4WD 6.7L Powerstroke F-250 Super Duty)Find parts that fit my vehicle
Item SD28182
Our Price
$9,344.45 kit
Military, Medical & First Responders
$467.22 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- More Clutches Compared To Stock And Competitors
- Custom BD Patented Pressure Plates Increase Clutch Count Without Sacrificing Part Strength
- Clutch Count Forward 6 (20% Increase Over Stock)
- Clutch Count Direct 6 (20% Increase Over Stock)
- Clutch Count Intermediate 8 (60% Increase Over Stock)
- Clutch Count Overdrive 8 (14% Increase Over Stock)
- Clutch Count Low Reverse 5
- Brand New Valve Body
- Electronic Line Pressure Controller For Up To 300psi Line Pressure
- Pressure Controller Offers 76% More Theoretical Holding Power
- Delivers Up To 300psi Line Pressure At Wide Open Throttle
- Pressure Controller Active Only When Boost Over 15psi, Avoiding Parasitic Load And Extra Heat When Inactive
- Torque Converter Is Ideal Replacement For Worn Stock Unit
- Suitable For Street And Towing Applications
- Includes Dual Surface Clutch Assembly
- Machined Steel Reaction Ring Replaces Flexible Factory Stamping
- Furnace-Brazed Pump And Turbine Fins
- Fully Remanufactured For Long Service Life
- Matched Transmission And Torque Converter Dyno Tested Together For Ultimate Performance And Reliability
- Includes Heavy Duty Pan For Extra Fluid Capacity
- Installation Requires Ford Scanner To Update TCM And Initiate Relearn
- 12 Hours Estimated Install Time
- Warranty 36 Months/150,000 Miles Parts And 12 Months/24,000 Miles Labor
- Compatible With Both 2WD And 4WD Applications
- 2WD Applications Require Yoke Adapter And Rear Mount Bracket Transfer During Installation
- Emissions Legal In All 50 States Without EO In California
- Fits 17-19 4WD 6.7L Powerstroke F-250 Super Duty
Description
Enhanced Transmission Performance. The BD Power Stage 4 Transmission and Converter Package is engineered to deliver superior power handling and reliability for heavy-duty applications. This matched transmission and torque converter set is ideal for towing and street use, ensuring your diesel engine's torque demands are met efficiently.
Construction and Appearance. The transmission features custom BD patented pressure plates that enable increased clutch count without compromising strength. The torque converter includes a dual surface clutch assembly, a machined steel reaction ring replacing the factory stamping, and furnace-brazed pump and turbine fins. The entire assembly is fully remanufactured and thoroughly tested to ensure long service life. The package also includes a heavy-duty transmission pan for enhanced fluid capacity.
Installation. Installing this package requires approximately 12 hours and involves using a Ford Scanner to update the Transmission Control Module with new solenoid codes and to initiate a relearn process. No drilling is necessary, but transferring specific components, such as the yoke adapter and rear mount bracket, is required for 2WD models.
Warranty. This product includes a 36-month/150,000-mile warranty on parts and a 12-month/24,000-mile labor warranty.
Application. This package fits 2017 to 2019 4WD 6.7L Powerstroke F-250 Super Duty models and is compatible with both 2WD and 4WD applications, noting the need to transfer certain components for 2WD installations.
BD Power 1064514SS
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Transmission and Converter Package
4.7
Reviews of BD Power Drivetrain Products (3)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-250
- 6.7L V8 Power-Stroke - 17, 18, 19
