Installation Time
(approx) 1 Hour
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details

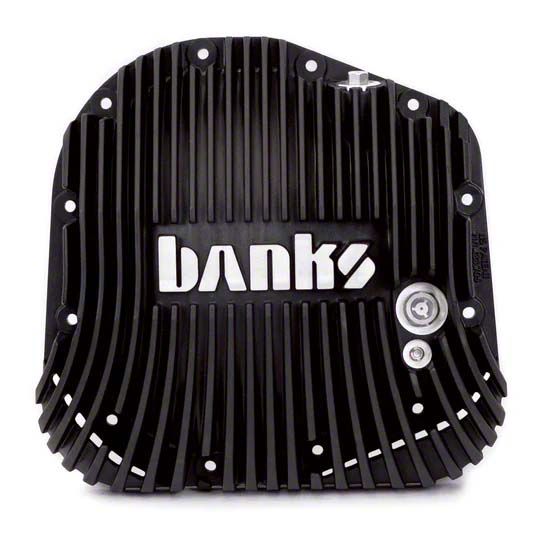

Banks Power Ford 10.25/10.50-Inch Ram-Air Differential Cover; Black-Ops (11-26 F-250 Super Duty w/o Rear Sway Bar & High Output Engine)Find parts that fit my vehicle
Item SD47241
Our Price
$395.00 each
Military, Medical & First Responders
$19.75 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- Patented Designs Cool 5X Better Than High-Capacity Covers
- Ram-Air Scoops Force Air Through Heat Radiation Fins
- FlowThru Fins® Transfer Heat Through The Cover To The Exterior
- High Velocity Air Overcomes "Dead Air Zone" Behind Differential
- Reduces Fluid Aeration
- Ring Gear Raceway Guides Fluid To Ring & Pinion Interface
- Fluid Guided To Axle Tubes And Bearings
- View Fluid Level Through Sight Glass
- Angled Fill Port
- Magnetic Drain Plug
- Retains Stock Fluid Quantity
- Increased Distance Between Service Intervals
- Temp Sensor Port
- O-Ring Seal, No Messy RTV
- Maintains Stock Ground Clearance
- Ram-Air Scoops Break Away If Hit
- Die-Cast Aluminum Construction Using A380 Aircraft Aluminum
- 20° Angled Fill Plug For Easy Maintenance
- 304 Stainless Steel Hex Flanged Mounting Bolts
- Sight-Glass With Contrast Screen And Viton O-Ring Seal
- 24 External Radiator Fins Providing 694.2 Square Inches Of Surface Area
- Recessed Magnetic Drain Plug Simplifies Oil Changes
- 1/8 Inch NPT Temp Sensor Port For Temperature Monitoring
- Radiused Ports For Smoother Fluid Flow
- Directional Fluid Guides
- Integrated No Mess Viton Dry-Mount Silicon High-Pressure O-Ring Seal
- CNC Machined Precision Fit Surface
- 22 Internal Heat Absorption Fins Offering 103.1 Square Inches Of Surface Area
- No Need To Remove Cover To Change Fluid
- Ring Gear Raceway Provides Fluid Flow Path To Gear-Bearing Sets
- Ram-Air System With Breakaway Scoops For Impact Protection
- Maintains Stock Ground Clearance With Breakaway Ram-Air Scoops
- Weight Approximately 11.7 Pounds
- Dimensions Are 13.3 Inches X 12.8 Inches X 3.5 Inches
- Internal Volume Approximately 3.3-3.6 Quarts (Confirm With OEM Manual)
- Comes With 12 Stainless Steel 5/16 Flange Hex Bolts
- Designed To Extend Lubrication Life By Keeping Fluid Cooler
- Improves Fuel Economy And Rejects Heat Faster Than Other Covers
- Fits 1985-2024 Ford Sterling Axle 12-Bolt With 10.25/10.50 Ring Gear. Does Not Fit Any Super Duty With Rear Sway Bar, Any F-350 Dually, Or 2023-2025 High-Output Variants.
Description
Superior Cooling Performance. The Banks Power Ford 10.25/10.50-Inch Ram-Air Differential Cover; Black-Ops is engineered to significantly reduce operating temperatures by improving lubrication efficiency through an innovative forced-air cooling design. This differential cover directs cooler, high-velocity air via patented Ram-Air scoops into integrated heat radiation fins, actively dissipating heat to preserve fluid life and protect critical drivetrain components during heavy-duty use.
Construction and Appearance. Crafted from durable A380 aircraft-grade aluminum via die-casting and precision CNC machining, this cover offers exceptional strength and a precise fit. The Black-Ops finish provides a sleek, satin black appearance suitable for heavy-duty truck applications.
Installation. Designed for straightforward installation, this differential cover fits precisely onto compatible axles with no drilling required. The installation process is user-friendly for most automotive professionals, typically requiring about an hour to complete.
Application. Specifically engineered to fit 1985 through 2024 Ford Sterling axle 12-bolt differentials with 10.25/10.50 inch ring gears. It is not compatible with any Super Duty models equipped with rear sway bars, F-350 dually trucks, or 2023-2025 high-output models.
Banks Power 19258
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Ram-Air Differential Cover
