Baja Designs LP6 Pro LED Auxiliary Light Pod with Amber Backlight; Driving/Combo Beam; Amber (Universal; Some Adaptation May Be Required)

Item SD36949
Our Price

$534.95 each

Military, Medical & First Responders $26.75 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Lens Material Hardcoated Polycarbonate
      • _x000D_
      • Light Quantity 1
      • _x000D_
      • Lighting Modes High Beam, Low Beam, Day-Time Running Backlighting
      • _x000D_
      • Lighting Quantity 6
      • _x000D_
      • Lighting Technology LED
      • _x000D_
      • Lighting Type Forward Projecting
      • _x000D_
      • Mounting Hardware Included Yes
      • _x000D_
      • Mounting Hardware Material Stainless Steel
      • _x000D_
      • Overvoltage Protection Built-In
      • _x000D_
      • Product Type LP6 Pro LED Light Pod
      • _x000D_
      • Secondary Amperage Rating 1.000 A
      • _x000D_
      • Secondary Brightness 1972 Lumens
      • _x000D_
      • Secondary Light Quantity 4 LEDs
      • _x000D_
      • Secondary Lighting Technology LED
      • _x000D_
      • Secondary Lighting Type Integrated Peripheral Technology (IPT)
      • _x000D_
      • Secondary Wattage 15 W
      • _x000D_
      • Terminal Connector DT06-4S Deutsch
      • _x000D_
      • Terminal Type Mating Connector
      • _x000D_
      • Wattage 103.5 W
      • _x000D_
      • Wiring Harness Included No
      • _x000D_
      • Amperage Rating 7.5 A
      • _x000D_
      • Average Rated Life 49,930 Hours
      • _x000D_
      • Backlight Amperage Rating 0.3 A
      • _x000D_
      • Backlight Wattage 4.14 W
      • _x000D_
      • Beam Pattern Driving/Combo
      • _x000D_
      • Bezel Material Powder Coat Cast Aluminum
      • _x000D_
      • Brightness 11,225 Lumens
      • _x000D_
      • Housing Color Black
      • _x000D_
      • Housing Material Powder Coat Cast Aluminum
      • _x000D_
      • Lens Color Amber
      • _x000D_
      • Fits Universal; Some Adaptation May Be Required
      • _x000D_

      Description

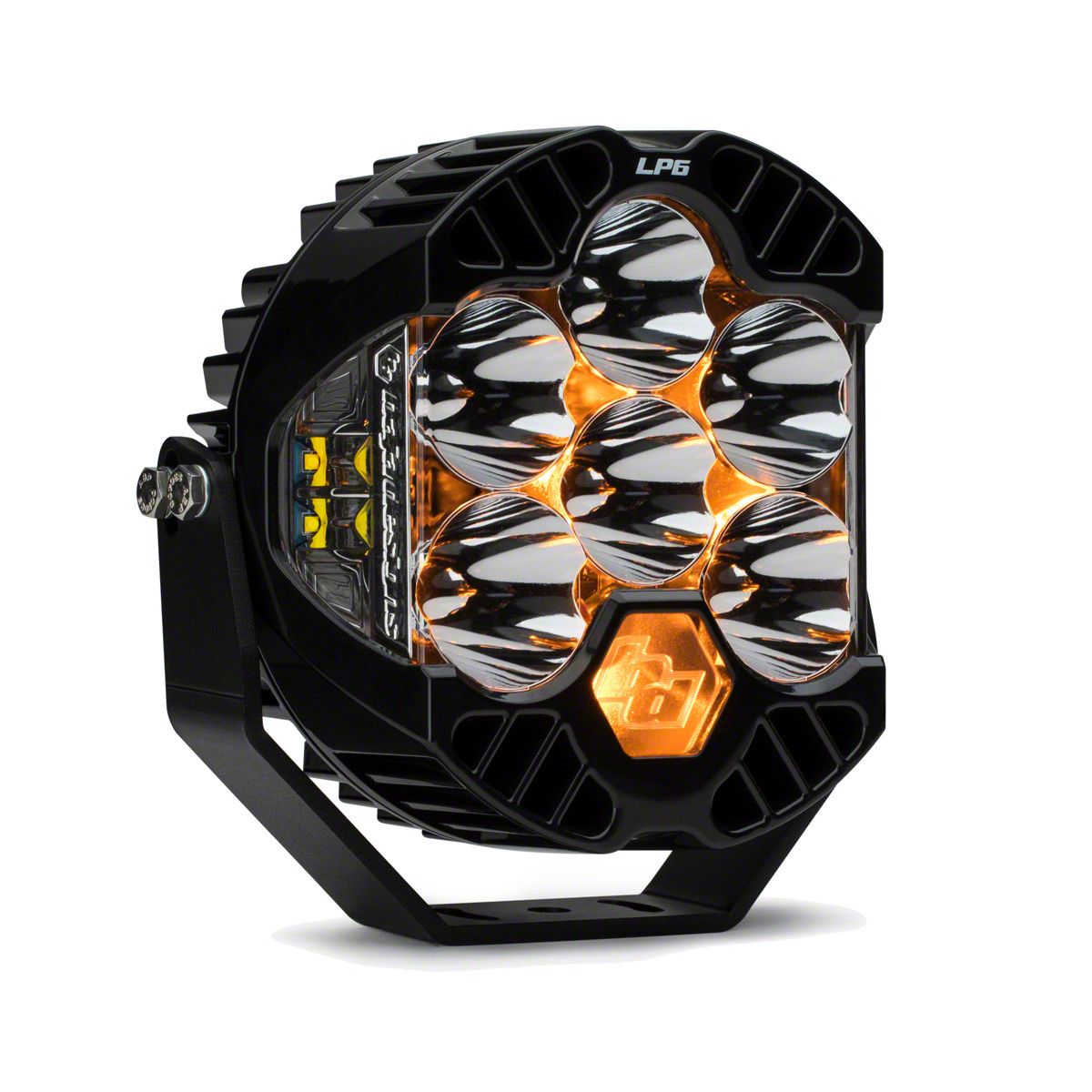

      High-Performance LED Lighting. The Baja Designs LP6 Pro LED Auxiliary Light Pod with Amber Backlight; Driving/Combo Beam; Amber is a powerful 6-inch auxiliary light designed to provide 11,225 lumens of illumination with a 200-degree spread using Integrated Peripheral Technology (IPT). It is ideal for off-road and trail use, offering multiple lighting modes for various conditions and an amber lens for enhanced visibility in adverse weather.

      _x000D__x000D_

      Construction and Appearance. This light pod features a durable powder-coated cast aluminum housing with a sleek black finish, combined with a hardcoated polycarbonate amber lens for impact resistance and longevity. Stainless steel mounting hardware ensures secure installation and corrosion resistance, while the bezel material enhances the rugged aesthetic and durability.

      _x000D__x000D_

      Installation. Installation is straightforward with included stainless steel mounting hardware and does not include a wiring harness. The universal design allows for mounting in various vehicle locations, though some adaptation may be required depending on the vehicle setup.

      _x000D__x000D_

      Warranty. This product comes with a limited lifetime warranty, providing long-term assurance against defects and issues under normal use.

      _x000D__x000D_

      Application. Designed to fit universally, the LP6 Pro LED Auxiliary Light Pod requires some adaptation for installation depending on the mounting location and vehicle configuration.

      Baja Designs 270013

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

      What's in the Box

      • (1) Light and bracket
      • (1) Hardware pack including 1/4”-20 bolts
      • (1) Hardware pack including 3/8” bolt
      • Associated washers for bracket mounting
      • (6) Bolts for LP9 lens bezel (4mm Allen wrench size)
      • (4) Bolts for LP6 & LP4 lens bezel (4mm Allen wrench size)
      • O-ring for lens seal
      • 64-0172 LP9 Pro Wire Harness (includes switch, relay, connectors, and wire)
      • Relay PN: 4RD 933 332-18
      • Deutsch Connector (DT06-4S) for light wiring
