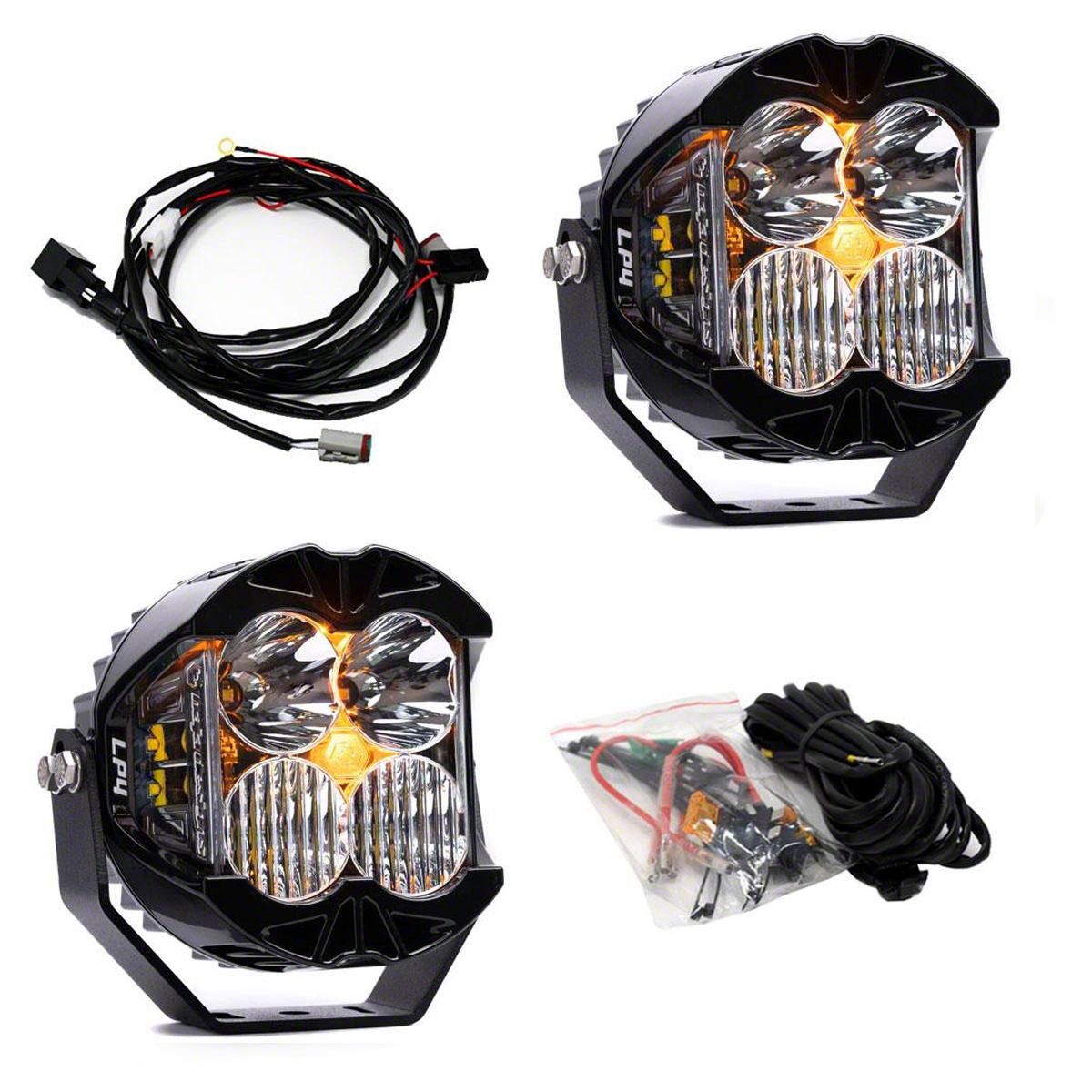

Baja Designs LP4 Pro LED Auxiliary Light Pods with Amber Backlight; Driving/Combo Beam; Amber (Universal; Some Adaptation May Be Required)

Item SD36943
Our Price

$875.95 pair

Military, Medical & First Responders $43.80 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Overvoltage Protection Built-In
      • _x000D_
      • Product Type LP4 Pro LED Light Pod Pair with Wiring Harness
      • _x000D_
      • Brightness 8857 Lumens
      • _x000D_
      • Light Quantity 2 Pods (4 LEDs each)
      • _x000D_
      • Lighting Technology LED
      • _x000D_
      • Lighting Type Forward Projecting with Integrated Peripheral Technology (IPT)
      • _x000D_
      • Wattage 75.9 W
      • _x000D_
      • Amperage Rating 5.5 A
      • _x000D_
      • Secondary Brightness 1972 Lumens
      • _x000D_
      • Secondary Wattage 15 W
      • _x000D_
      • Secondary Amperage Rating 1.0 A
      • _x000D_
      • Terminal Connector DT06-4S Deutsch
      • _x000D_
      • Terminal Type Mating Connector
      • _x000D_
      • Universal Fit with Some Adaptation May Be Required
      • _x000D_
      • Wiring Harness Included
      • _x000D_
      • Mounting Hardware Included
      • _x000D_
      • Mounting Hardware Material Stainless Steel
      • _x000D_
      • Housing Material Powder Coat Cast Aluminum
      • _x000D_
      • Bezel Material Powder Coat Cast Aluminum
      • _x000D_
      • Housing Color Black
      • _x000D_
      • Lens Material Hardcoated Polycarbonate
      • _x000D_
      • Lens Color Amber
      • _x000D_
      • Beam Pattern Driving/Combo with Amber Backlight
      • _x000D_
      • Lighting Modes: Beam, Day-Time Running, Backlighting
      • _x000D_
      • Backlight Wattage 4.83 W
      • _x000D_
      • Backlight Amperage Rating 0.35 A
      • _x000D_
      • Average Rated Life 49,930 Hours
      • _x000D_
      • Standards/Compliance: Durability Exceeds MIL-STD810G (Mil-Spec Testing)
      • _x000D_
      • Standards/Compliance: Impact Resistance IK10 Compliant (Mechanical Impact Testing)
      • _x000D_
      • Standards/Compliance: Water Resistance IP69K (Waterproof up to 9ft & Pressure Washable)
      • _x000D_
      • Dimensions: Length 5.1 In., Height 5.1 In., Depth 3.2 In.
      • _x000D_
      • Weight 2.8 Lbs.
      • _x000D_

      Description

      HIGH-PERFORMANCE OFF-ROAD LIGHTS. The Baja Designs LP4 Pro LED Auxiliary Light Pods with amber backlight and driving/combo beam deliver powerful illumination, offering a total brightness of 8,857 lumens. Featuring 200-degree peripheral coverage through Integrated Peripheral Technology (IPT), these lights enhance visibility and safety for off-road and auxiliary vehicle applications.

      _x000D__x000D_

      CONSTRUCTION AND APPEARANCE. Constructed with a powder-coated cast aluminum housing and bezel finished in black, these lights feature durable hardcoated polycarbonate amber lenses. Engineered to meet or exceed MIL-STD810G and IK10 impact standards, the pods provide rugged durability and resistance against harsh environmental conditions. Their IP69K rating ensures water resistance up to 9 feet and suitability for pressure washing.

      _x000D__x000D_

      INSTALLATION. The package includes stainless steel mounting hardware and a wiring harness designed for universal fitment. Installation is straightforward without the need for special modifications, enabling secure attachment to a wide range of vehicles.

      _x000D__x000D_

      WARRANTY. These lights come with a limited lifetime warranty, providing confidence in long-term performance and protection against manufacturing defects.

      _x000D__x000D_

      APPLICATION. Suitable for universal use with some adaptations possible, making these pods a versatile lighting solution for many automotive setups.

      Baja Designs 297813

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 2 Hours

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

      What's in the Box

      • (1) Light and bracket
      • (1) Hardware pack including 1/4”-20 bolts
      • (1) 3/8” bolt
      • Associated washers
      • (6) bolts for LP9 bezel or (4) bolts for LP6 & LP4 bezel (4mm allen wrench required for removal/installation)
      • O-ring
      • Deustsch Connector (DT06-4S) mating connector
      • 64-0172 LP9 Pro Wire Harness (recommended, includes switch, relay, connectors, and wire)
      • Relay PN: 4RD 933 332-18
