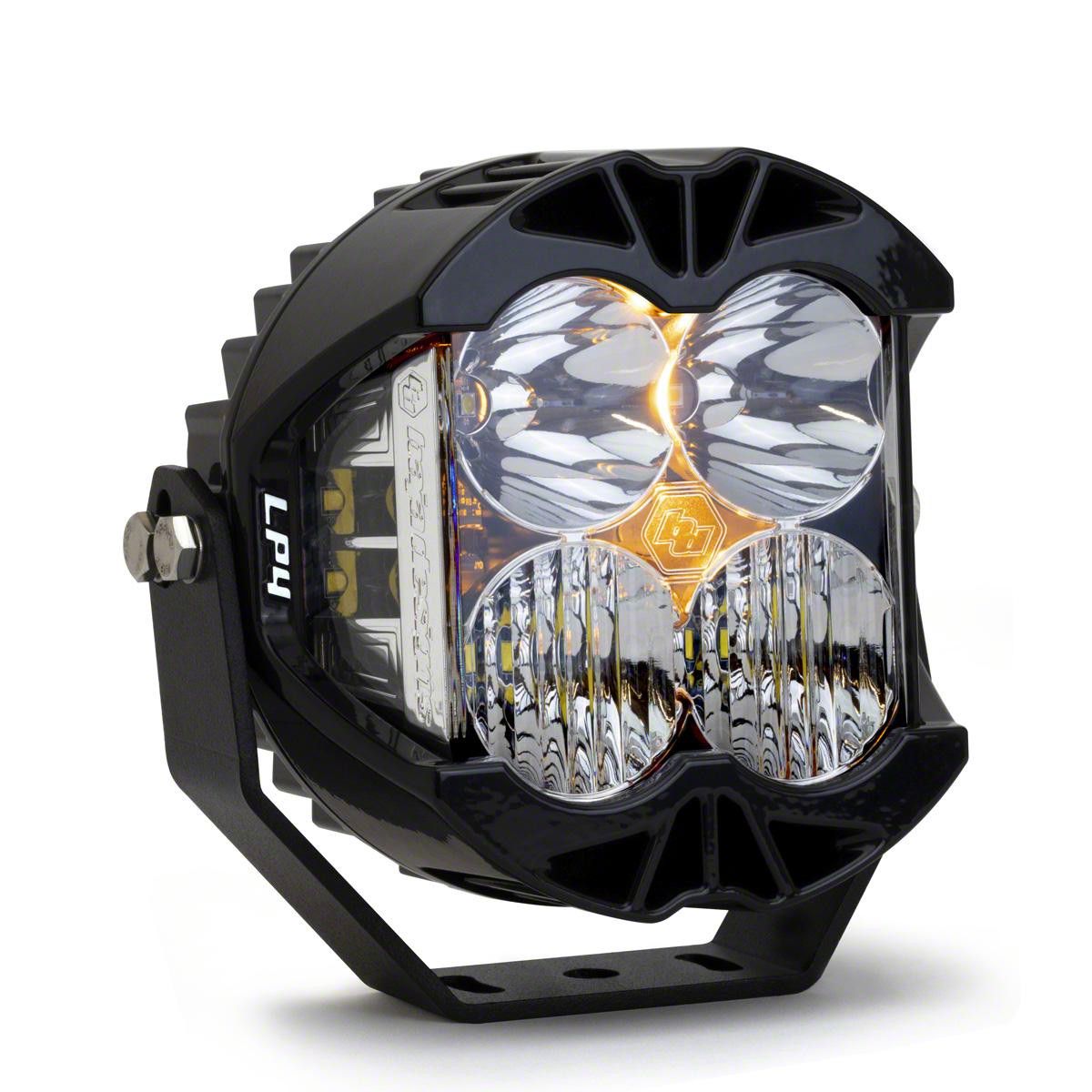

Baja Designs LP4 Pro LED Auxiliary Light Pod with Amber Backlight; Driving/Combo Beam; Clear (Universal; Some Adaptation May Be Required)

Item SD36938
Our Price

$437.95 each

Military, Medical & First Responders $21.90 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Driving/Combo Beam Pattern
      • _x000D_
      • Amber Day-Time Running Backlighting
      • _x000D_
      • Powder Coat Cast Aluminum Bezel Material
      • _x000D_
      • Clear Hardcoated Polycarbonate Lens Material
      • _x000D_
      • Black Powder Coat Cast Aluminum Housing Material
      • _x000D_
      • 5.1 Inches Height
      • _x000D_
      • 5.1 Inches Length
      • _x000D_
      • 3.2 Inches Depth
      • _x000D_
      • 2.8 Pounds Weight
      • _x000D_
      • Built-In Overvoltage Protection
      • _x000D_
      • 75.9 Watts Primary Wattage
      • _x000D_
      • 15 Watts Secondary Wattage
      • _x000D_
      • 5.5 Amperage Rating Primary
      • _x000D_
      • 1.0 Amperage Rating Secondary
      • _x000D_
      • 4 LEDs With Integrated Peripheral Technology (IPT)
      • _x000D_
      • Secondary Brightness 1,972 Lumens
      • _x000D_
      • Backlight Wattage 4.83 Watts
      • _x000D_
      • Backlight Amperage Rating 0.35 Amps
      • _x000D_
      • Terminal Connector DT06-4S Deutsch
      • _x000D_
      • Terminal Type Mating Connector
      • _x000D_
      • Average Rated Life 49,930 Hours
      • _x000D_
      • Exceeds MIL-STD810G Durability Standards
      • _x000D_
      • IK10 Compliant Mechanical Impact Resistance
      • _x000D_
      • IP69K Waterproof Up To 9 Feet & Pressure Washable
      • _x000D_
      • Mounting Hardware Included Made Of Stainless Steel
      • _x000D_
      • Universal Wiring Harness Not Included
      • _x000D_
      • Fits Jeep Gladiator 2020-2025 And Jeep Wrangler JL 2018-2025 With OE Steel Bumper
      • _x000D_

      Description

      High-Performance LED Lighting. The Baja Designs LP4 Pro LED Auxiliary Light Pod with Amber Backlight and Driving/Combo Beam is engineered to deliver exceptional illumination with a total output of 8,750 lumens, combining 7,050 lumens of forward projection and 1,700 lumens of peripheral lighting using Integrated Peripheral Technology (IPT). Designed specifically to integrate seamlessly with OE steel bumpers on select Jeep Gladiator and Wrangler JL models, this light pod enhances visibility and safety for both on- and off-road driving conditions.

      _x000D__x000D_

      Construction and Appearance. Constructed with durable powder-coated cast aluminum for both the bezel and housing, this light pod provides robust protection in harsh environments while maintaining a sleek black finish. The clear lens is made from hardcoated polycarbonate, ensuring impact resistance and optical clarity. The light pod features Direct Ducted Cooling (DDC) technology for improved heat management, enhancing operational performance and longevity.

      _x000D__x000D_

      Installation. Installation of the LP4 Pro light pod is straightforward and designed to align with factory upfitter systems or advanced controller units such as sPOD or Switch Pros. When mounted with compatible OE steel bumpers, drilling is generally not required, simplifying the installation process for most users.

      _x000D__x000D_

      Warranty. This product includes a limited lifetime warranty, providing long-term protection against manufacturing defects and ensuring user confidence.

      _x000D__x000D_

      Application. Compatible with Jeep Gladiator models from 2020 to 2025 and Jeep Wrangler JL models from 2018 to 2025 equipped with original equipment (OE) steel bumpers. Use with other models or bumpers may require adaptation.

      Baja Designs 290003

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

      What's in the Box

      • (1) Light and bracket
      • (1) Hardware pack including 1/4”-20 bolts
      • (1) Hardware pack including 3/8” bolt
      • Associated washers
      • (6) Bolts for LP9 bezel and lens
      • (4) Bolts for LP6 & LP4 bezel and lens
      • (1) Deustsch Connector (DT06-4S) mating connector for the back of the light
      • (1) Three position toggle switch (on/off/on) Double Pole, Double Throw (DPDT)
      • (1) LP9 Pro Wire Harness (PN: 64-0172) including switch, relay (Relay PN: 4RD 933 332-18), connectors, and wire
