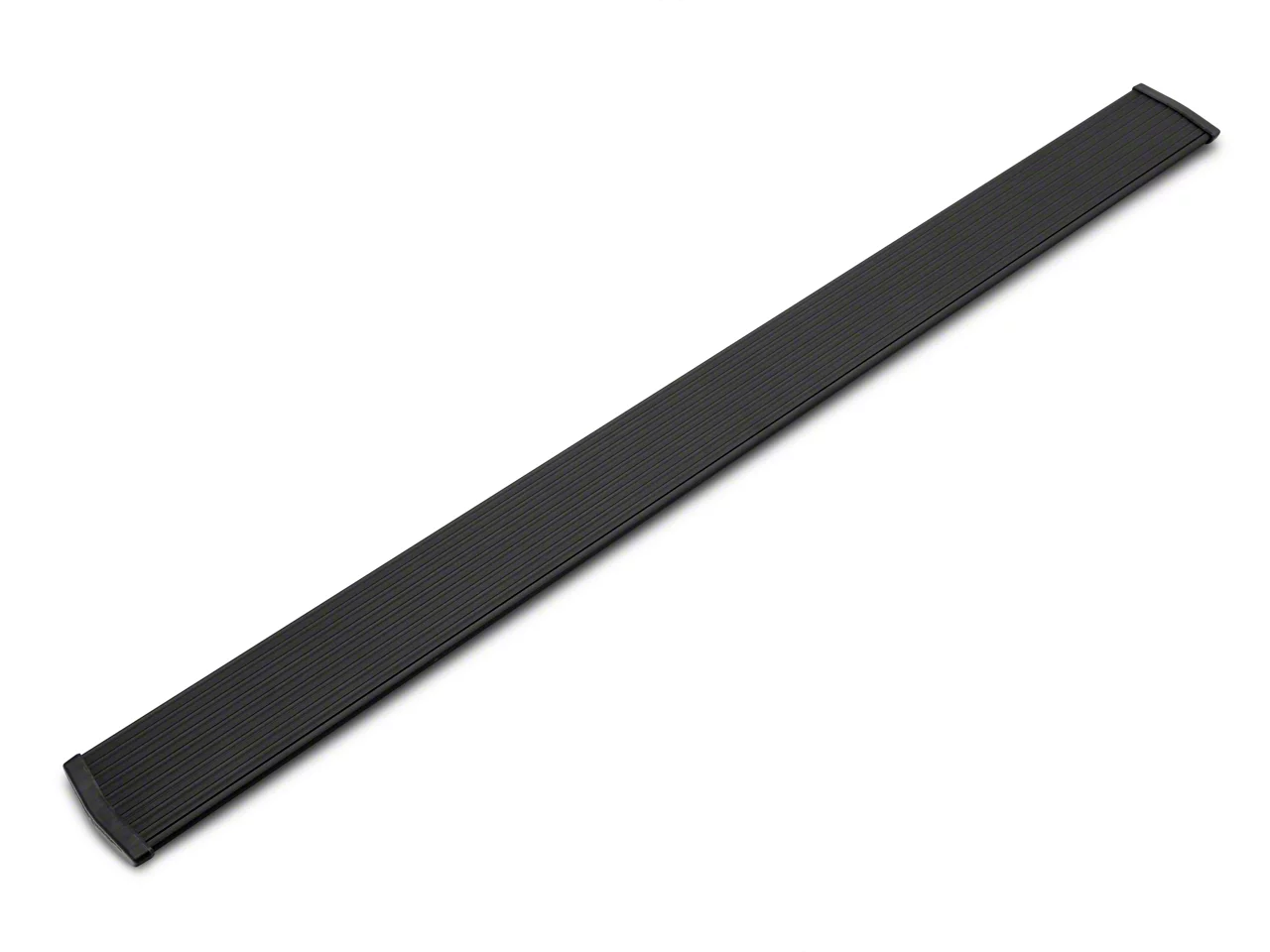

Amp Research PowerStep XL Running Boards (15-20 F-150 SuperCrew)

Find parts that fit my vehicle Item T528127
Shop Owners Save More! Sign up for our dealer program

    Product Information

    Features, Description, Reviews, Q&A, Specs & Installation

    Features

    • Lowest Deployed Power-Retractable Running Boards
    • XL Boards Extend 4 Inches Lower Than Original PowerStep
    • Premium Single-Motor Design Automatically Deploys and Retracts Boards
    • Corrosion-Resistant Cast Aluminum Construction
    • Anodized, Finished With a Military-Grade PTFE Coating
    • 6-Inch Wide Cab-Length Step Area
    • Textured, Slip-Resistant Step Surface
    • Integrated LED Lighting Illuminates Steps for Safe Entry
    • Optional Override Switch Available for Manual Control
    • Includes Vehicle-Specific Installation Guide, Mount Kit, and Hardware
    • Mounts to Vehicle's Rocker Panel
    • Connects to OBDII Port Using Patented Plug-N-Play Module
    • Professional Installation Recommended
    • 5-Year Limited Warranty
    • 600 lb Load Capacity
    • Fits 2015-2020 F-150 SuperCrew Models

    Description

    Power-Retractable Running Boards. The Amp Research PowerStep XL Running Boards provide effortless access to your vehicle by automatically deploying when the door opens and retracting after the door closes. Designed to aid entry and exit, these steps enhance convenience and safety, especially for lifted trucks or vehicles with higher ground clearance.

    Construction and Appearance. Constructed from corrosion-resistant die-cast aluminum, these running boards feature a rugged housing for durability and aesthetics. The anodized finish is protected with a military-grade PTFE coating, delivering a textured, slip-resistant black surface that resists corrosion and wear. Integrated LED lighting ensures visibility in low-light conditions.

    Installation. Installation is a bolt-on procedure using existing holes in the rocker panels, with all necessary hardware and vehicle-specific instructions included. Professional installation is recommended for optimal performance and safety. Typically, no drilling is required.

    Warranty. These running boards come with a 5-year limited warranty covering defects in materials and workmanship.

    Application. Designed specifically to fit 2015-2020 F-150 SuperCrew models, offering tailored fitment with consideration for vehicle dimensions and mounting locations.

    Shop All Truck Parts And Accessories

    Shop All Truck Exterior Accessories

    Shop All Truck Side Steps And Nerf Bars

    Amp Research 77151-01A

    CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    Install Details & What's in the Box

    Installation Info

    Installation Time

    (approx) 3 Hours

    Difficulty Level:

    Mechanical expertise or professional installation required.

    Installation Guides

    What's in the Box

    • (2) Motor (Matches item 27)
    • (6) Socket cap screw (3 per motor)
    • (6) Washer (3 per motor)
    • (2) Drive Gear Housing Cover (Matches item 26)
    • (2) Running board assembly
    • (1) End cap left
    • (1) End cap right
    • (2) T-nut insert
    • (2) Socket cap screw
    • (1) End cap wedge right
    • (1) End cap wedge left
    • (2) Motor Linkage assembly
    • (2) Idler Linkage assembly
    • (2) Rail Assembly
    • (1) Wire harness
    • (1) A06 Controller
    • (2) Posi-Lock™
    • (8) M8 Hex Bolt w Conical washer
    • (16) M8 Nut w Conical washer
    • (6) M5 Hex Bolt
    • (6) M5 Washer
    • (4) M6 Flange Bolt
    • (6) 5/16 Flange Bolt
    • (8) Socket Cap Screw
    • (10) 5/16-18 Carriage Bolt
    • (16) 5/16-18 Flange nut
    • (4) Upper Mount Spacer
    • (20) Cable tie (7")
    • (2) Cable tie (11")
    • (4) LED Lamp
    • (8) Butt Connector
    • (4) LED Light Bracket
    • (1) OBD II Plug
    • (4) Linkage Mounting Bracket
    • (2) Rail Mounting Bracket
    • (2) Gear Cover
    • (2) Motor

    Tech Specs

    4.2

    Customer Reviews (14)

    Questions & Answers

    No questions about this product yet. Ask the First Question

    Will It Fit My F-150

    • 2.7L V6 EcoBoost - 15, 16, 17, 18, 19, 20
    • 3.0L V6 Power-Stroke - 18, 19, 20
    • 3.3L V6 - 18, 19, 20
    • 3.5L V6 - 15, 16, 17
    • 3.5L V6 EcoBoost - 15, 16, 17, 18, 19, 20
    • 3.5L V6 EcoBoost Limited - 19, 20
    • 3.5L V6 EcoBoost Raptor - 17, 18, 19, 20
    • 5.0L V8 - 15, 16, 17, 18, 19, 20

    For SuperCrew Models Only
