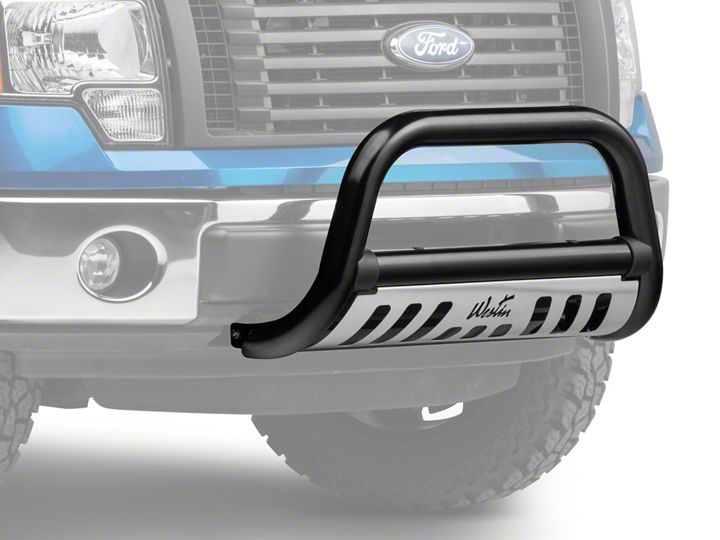

How to Install Westin Ultimate 3 in. Bull Bar - Black on your F-150

Installation Time

2 hours

American Muscle
Shop Parts in this Guide

STEP 1. Remove the contents from box and check for damage. Verify all parts are present. Read instructions completely before beginning. NOTE: Westin advises the installer to use a thread lubricant on all of the stainless steel fasteners.

STEP 2. NOTE: It will be necessary to remove the front license plate and bracket. Remove license plate from bracket. Using a 3/16” drill bit, drill out the two pop rivets that hold the bracket to the bumper. If local/state laws requires a license plate,
license plate relocation kit 32-0055 is available.

VEHICLES WITH TOW HOOKS

STEP 3. Remove tow hooks by removing front and rear bolts. NOTE: Tow hooks will not be reinstalled. Make sure nut plate in
frame stays aligned with holes.

STEP 4. Position bottom bracket up to bottom of frame and replace tow hook bolts. SEE FIGURE 2. Go to step 6.
VEHICLES WITHOUT TOW HOOKS

STEP 5. Insert u-bolt in frame as shown. SEE FIGURES 3 AND 4. Attach bracket to u-bolts using 3/8” fasteners as shown.
SEE FIGURE 4. Hand Tighten.

STEP 6. Attach Bull Bar to mount brackets using 3/8” fasteners. Make sure Bull Bar and brackets are properly aligned and tighten all fasteners. Recommended torque values are 17 Ft.Lbs. for 3/8” fasteners.

LIGHT INSTALLATION: Insert threaded stud on base of the light through hole in cross tube. Using a ratchet, extension and socket for correct size of nut supplied, insert through large clearance hole in bottom of cross tube. Thread nut and washers on stud and tighten. SEE FIGURE 1. NOTE: A short socket, not a deep well works best to get the nut started.

NOTE: Fits most 6" round or rectangle lights. Some lights may require replacing included mount/isolator with rubber bumpers provided. Mounting stud of 1/2" or less required. Plug mount holes with caps provided if not installing lights.
