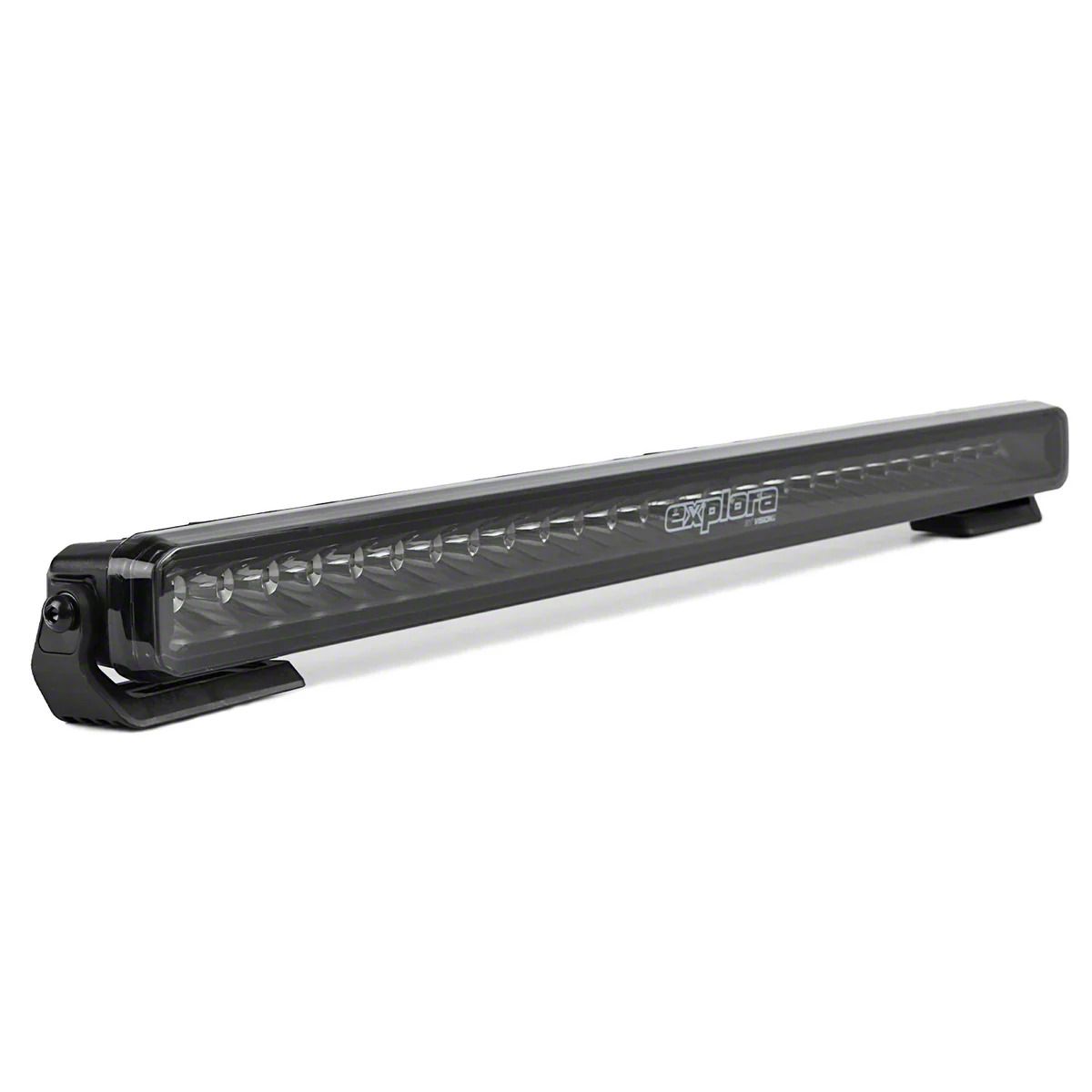

Vision X 30-Inch Explora Single Row LED Light Bar with Dual-Color DRL; Flood/Spot Combo Beam (Universal; Some Adaptation May Be Required)

Item T637261
Product Image
61 Reviews of Vision X
Our Price

$399.00

Military, Medical & First Responders $19.95 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features & Specs

        _x000D_
      • Explora Series Lights were purpose-built to deliver modern styling in a fully customizable platform, offering everyday drivers unprecedented versatility at an affordable price point.
        • _x000D_
      • Switchback dual-color DRLs, multiple lens color options, and multiple trim ring colors provide extensive customization to perfectly match your build.
        • _x000D_
      • Impressive beam performance powered by X-Drive LEDs with ultra-reflective honeycomb style optics backed by eight high-output CREE XTE (5W each) LEDs.
        • _x000D_
      • Available in 10, 20, & 30-inch lengths, in both single and double row profiles.
        • _x000D_
      • Advanced circuit design features a 2-position DRL that can operate in white, amber, or switchback mode, where the white DRL switches to amber and flashes in sync with factory turn signals.
        • _x000D_
      • Internal MOSFET eliminates the need for external relays, simplifying wiring with or without plug-and-play harnesses.
        • _x000D_
      • Interchangeable snap-on lens covers and silicone trim rings available for all light sizes, allowing for extensive customization.
        • _x000D_
      • Lenses offered in yellow, clear, smoke, or black-out finishes.
        • _x000D_
      • Trim rings available in red, orange, yellow, green, blue, and pink.
        • _x000D_
      • Dual-color DRL with two edge DRLs that can be switched between crisp white or amber to match OEM marker lights.
        • _x000D_
      • Switchback technology enables the amber DRL to flash synchronized with turn signals.
        • _x000D_
      • Swappable lens system includes smoked, clear (protective), or selective yellow (for dust) lens options.
        • _x000D_
      • Custom-colored rubber trim rings surround the outer portion of the lens.
        • _x000D_
      • Internal relay with modular switching enables easy activation via trigger wire or universal switch.
        • _x000D_
      • Power consumption is 140 Watts with an 11.67 Amp draw.
        • _x000D_
      • Beam distance: 1771 feet (540 meters) with a width of 197 feet (60 meters).
        • _x000D_
      • Connector: 3-pin DT.
        • _x000D_
      • Color temperature: 6000K.
        • _x000D_
      • Operating voltage: 9-32 VDC.
        • _x000D_
      • Pod size: 30.50 inches long by 2.52 inches deep.
        • _x000D_
      • Pod weight: 4.5 pounds.
        • _x000D_
      • IP rating: IP68 & 69K waterproof, submersible, and high-pressure spray resistant.
        • _x000D_
      • EMC standards: CISPR 25, CE, UKCA compliant.
        • _x000D_
      • Limited lifetime warranty included.
        • _x000D_
      • Universal fit; some adaptation may be required.
        • _x000D_

      Description

      Innovative Lighting Solution. The Vision X 30-Inch Explora Single Row LED Light Bar with Dual-Color DRL and Flood/Spot Combo Beam is engineered to provide versatile and powerful illumination for a variety of driving conditions. Featuring modern styling and advanced lighting technology, it enhances vehicle visibility and safety, making it ideal for off-road adventures and everyday driving alike.

      _x000D__x000D_

      Construction and Appearance. This light bar boasts durable housing combined with ultra-reflective honeycomb-style optics backed by eight high-output CREE XTE LEDs. Its modular design offers swappable lens covers and customizable colored rubber trim rings, providing both functional protection and a personalized aesthetic. The assembly holds IP68 and 69K ratings for waterproofing and resistance to high-pressure washing, ensuring rugged reliability.

      _x000D__x000D_

      Installation. Installation is straightforward due to the internal MOSFET relay that eliminates the need for external relays. The modular wiring harness allows simple connections with minimal drilling or modifications, making it suitable for most vehicles.

      _x000D__x000D_

      Warranty. This product includes a limited lifetime warranty, providing long-term confidence in its quality and performance.

      _x000D__x000D_

      Application. Designed to fit a wide range of vehicles universally, though some adaptation may be necessary to accommodate specific mounts or wiring configurations.
