Find Onboard Air for your Sierra 2500

Viair 92C Air Compressor; 120 PSI / 1.03 CFM (Universal; Some Adaptation May Be Required)

Item HG41757
Product Image
3 Reviews of Viair
Our Price

$115.95

Military, Medical & First Responders $5.80 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

      • Light Duty Air Compressor For Smaller Pneumatic Requirements
      • Designed To Fill No Larger Than A 1 Gallon Tank
      • Features Removable Air Filter
      • Includes Check Valve
      • Comes With Mounting Hardware
      • ISO 9001 Quality Standard
      • 12 Volt And 24 Volt Compatible
      • Oil-less And Direct-Drive Design
      • Aims For 0 Percent Failure Rate
      • CFM: 1.03 At 0 PSI
      • Permanent Magnetic Motor
      • Duty Cycle: 9 Percent At 100 PSI
      • Max Working Pressure: 120 PSI
      • Max Air Tank Size: 1.0 Gallon
      • Max Amp Draw: 10 Amps
      • Ingress Protection Rating: IP54
      • Max Ambient Temperature: 158 Degrees Fahrenheit
      • Min Ambient Temperature: -40 Degrees Fahrenheit
      • Dimensions: 7.6 Inches Length By 2.0 Inches Width By 4.6 Inches Height
      • Net Weight: 2.45 Pounds
      • In Rush Current At 0 PSI: 27.6 Amps
      • Sound Level At 0 PSI: 62.1 Decibels
      • Includes Vibration Isolators
      • Comes With Direct Mount Air Filter Assembly
      • Installation Instructions Provided
      • Requires Thread Sealant For Proper Installation
      • Recommended Torque For 1/8 Inch Threads: 10 To 11 Foot Pounds
      • Recommended Torque For 1/4 And 3/8 Inch Threads: 16 To 18 Foot Pounds
      • Fits Universal; Some Adaptation May Be Required

      Description

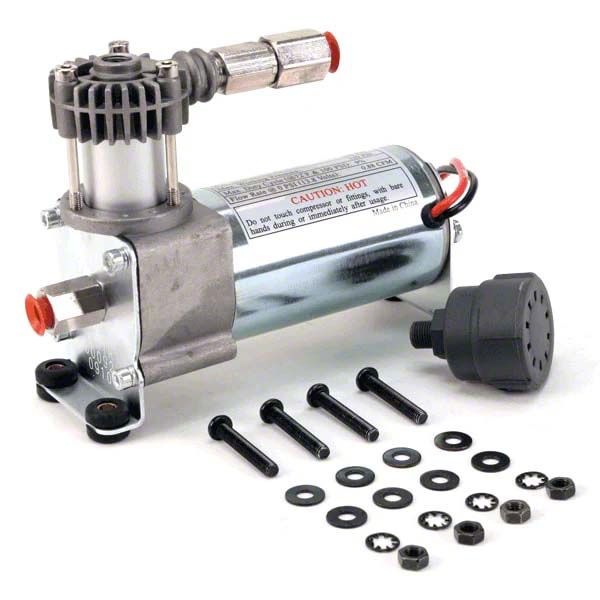

      Compact Air Compressor. The Viair 92C Air Compressor; 120 PSI / 1.03 CFM is a versatile, light duty compressor designed to meet smaller pneumatic needs, such as inflating air tanks up to one gallon. Its efficient design makes it ideal for various applications where space and power consumption are concerns, delivering reliable air supply in critical situations.

      Construction and Appearance. This compressor features a durable oil-less, direct-drive permanent magnetic motor construction with an IP54 ingress protection rating, ensuring resistance to dust and water. Its compact form factor and robust build further complement its capability to operate in ambient temperatures ranging from -40°F to 158°F, with a lightweight design at just 2.45 pounds.

      Installation. Installation is straightforward and requires thread sealant for proper sealing rather than thread tape. Mounting hardware is included to ensure secure placement. Follow the recommended torque specifications for thread sizes: 10-11 foot pounds for 1/8 inch threads and 16-18 foot pounds for 1/4 and 3/8 inch threads to achieve optimal installation integrity.

      Warranty. This product is covered by a standard warranty as provided by the manufacturer, ensuring product reliability and customer confidence.

      Application. Fits universal applications; some adaptation may be required depending on specific pneumatic system setups and mounting configurations.

      Viair 00092
