Find Onboard Air for your Sierra 2500

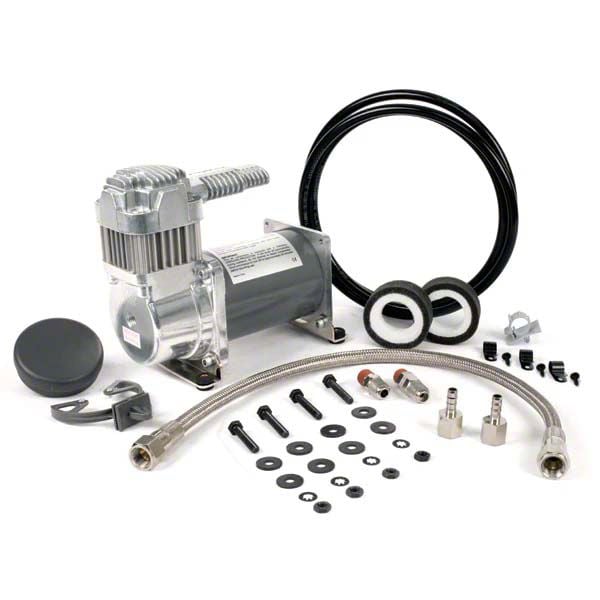

Viair 250C 24V Industrial-Grade Compressor Series Air Compressor; 150 PSI / 0.88 CFM (Universal; Some Adaptation May Be Required)

Item HG41768
Product Image
3 Reviews of Viair
Our Price

$300.75

Military, Medical & First Responders $15.04 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • CFM 0.88 At 0 PSI
        • _x000D_
      • Available In 12V And 24V
        • _x000D_
      • Permanent Magnetic Motor
        • _x000D_
      • 100 Percent Duty Cycle At 100 PSI
        • _x000D_
      • Maximum Working Pressure 150 PSI
        • _x000D_
      • Maximum Air Tank Size 2.5 Gallon
        • _x000D_
      • Maximum 12V Amp Draw 11 Amps
        • _x000D_
      • Maximum 24V Amp Draw 6 Amps
        • _x000D_
      • Ingress Protection Rating IP67
        • _x000D_
      • Maximum Ambient Temperature 158°F
        • _x000D_
      • Minimum Ambient Temperature Minus 40°F
        • _x000D_
      • Dimensions 7.4 Inches Long By 3.9 Inches Wide By 6.75 Inches High
        • _x000D_
      • Net Weight 6.75 Pounds
        • _x000D_
      • In Rush Current At 0 PSI 48.36 Amps
        • _x000D_
      • Noise Level At 0 PSI 69.9 Decibels
        • _x000D_
      • Thermal Overload Protector Included
        • _x000D_
      • Vibration Isolators Included
        • _x000D_
      • Mounting Hardware Included
        • _x000D_
      • Heavy Duty 1/4 Inch NPT Check Valve Included
        • _x000D_
      • Stainless Steel Braided PTFE-Lined Leader Hose Included
        • _x000D_
      • Air Line For Remote Mount Air Filter Included
        • _x000D_
      • Remote Mount Air Filter Assembly Included
        • _x000D_
      • Two Replacement Air Filter Elements Included
        • _x000D_
      • Installation Instructions Included
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      INDUSTRIAL-GRADE PERFORMANCE. The Viair 250C 24V Industrial-Grade Compressor Series Air Compressor; 150 PSI / 0.88 CFM is a medium-duty air compressor designed to fill air tanks efficiently. It delivers consistent airflow and pressure ideal for various pneumatic applications requiring reliable and continuous run performance. Maintaining air tank pressure is critical for systems that depend on compressed air.

      _x000D_

      CONSTRUCTION AND APPEARANCE. This compressor features a durable permanent magnetic motor housed within a compact unit measuring 7.4 by 3.9 by 6.75 inches. It includes stainless steel braided PTFE-lined leader hoses designed for resistance against high amperage restarts and improved heat dissipation. The unit maintains a robust build with thermal overload protection and vibration isolators, finished with a tough, resilient texture suited for industrial use.

      _x000D_

      INSTALLATION. Installation requires moderate effort. The compressor comes with all necessary mounting hardware to simplify the process. Typically, no additional drilling is required, making it accessible for skilled users to install in various setups with minimal modifications.

      _x000D_

      WARRANTY. The compressor is backed by a comprehensive warranty from the manufacturer, providing assurance of quality and durability over extended use.

      _x000D_

      APPLICATION. This compressor fits universal applications but may require some adaptation depending on the installation environment or specific use case. It is designed to accommodate a wide range of industrial and auxiliary air compression needs.

      Viair 25058
