How to Install Traxda 2.75 in. Leveling Kit on your F-150

Installation Time

2 hours

American Muscle
Shop Parts in this Guide

FRONT INSTALLATION

1) Disconnect sway bar link from control arm and separate tie rod end. On 4x4 models remove axle nut at hub. Support spindle assembly. Use caution with any ABS wiring to prevent damage. Separate upper ball joint. Remove lower strut mounting bolt and upper strut mount nuts and remove strut.

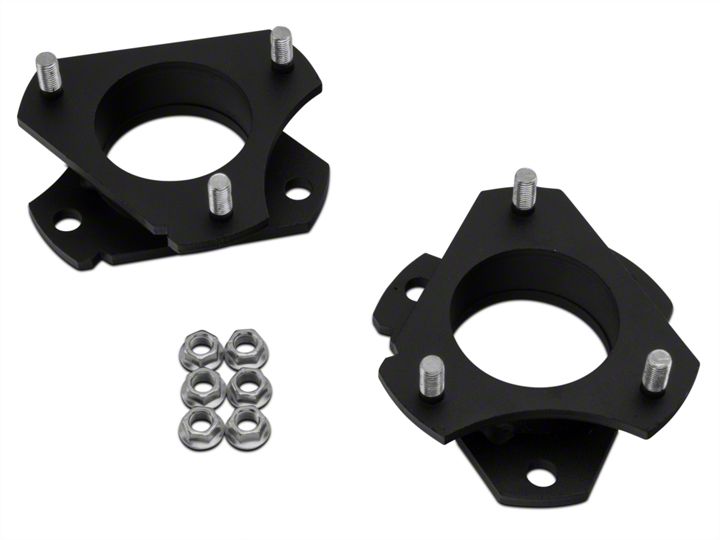

2) InstallTRAXDAspacer on the strut as shown in Figure A. Note the twisted shape of theTRAXDAcap, the strut will be rotated 180 degrees when reinstalled in the truck.

3) Reinstall the strut assembly in reverse of disassembly. It may be necessary to use a pry bar to aid in the reinstallation of the strut assembly. Use a pit jack to raise the lower control arm and reconnect the ball joint. Note: A tall jack may be needed under the rear bumper to steady the truck on the lilt. Verity that all hardware has been tightened to the proper torque specs.
