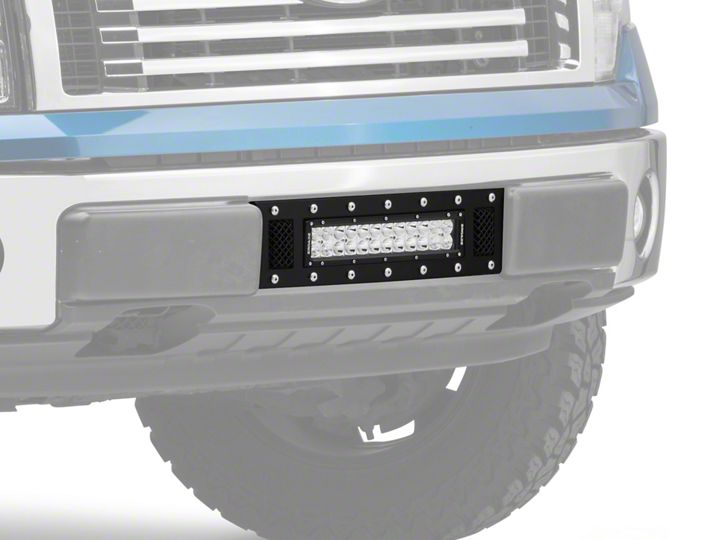

How to Install T-REX Torch Series Lower Bumper Grille Insert w/ 12in. LED Light Bar - Black on F-150
Installation Time
1 hours
Tools Required
- Socket Set
- Wrench Set
- Flat/Phillips Screw Drivers
Shop Parts in this Guide
PARTS LIST:
(2) 1/4” Hex Nuts
(2) 1/4x1-1/2 Fender Washers
(2) 1/4” Lock Washers
(1) Torch LED Bumper Grille
PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE INSTALLATION. Auto makers offer varied models to each vehicle and occasionally manufacture more than one body style of the same model. To assure your part is correct; our tech department can be contacted at [email protected] to verify fitment or assist with tech questions. All other inquires can be directed to [email protected]. In the event you do not have internet access please call 1-800-287-5900.
Step 1
License Plate Removal
Remove the license plate from the license plate holder with a flathead screwdriver (Fig 1).
Step 2
License Plate Holder Removal
Remove the license plate holder by opening the hood and locating two plastic latches on the back of the license plate holder. Pinch the tabs together with your fingers and push the tabs down through the slots in the bumper opening and pull the license plate holder forward and upward to remove the license plate holder (Fig 2).
Step 3
Torch Bumper LED Grille Installation
Take the Torch bumper grille and insert it into the bumper opening. The two threaded studs on the back of the bumper light will insert through the oblong holes in the back of the bumper (Fig 3).
Step 4
Torch Bumper LED Grille Installation
Take the two fender washers and place them onto the threaded studs followed by the lock washers and the hex nuts and tighten with a 7/16” wrench (Fig 4). Complete the wiring of the lights.
Installation complete.
